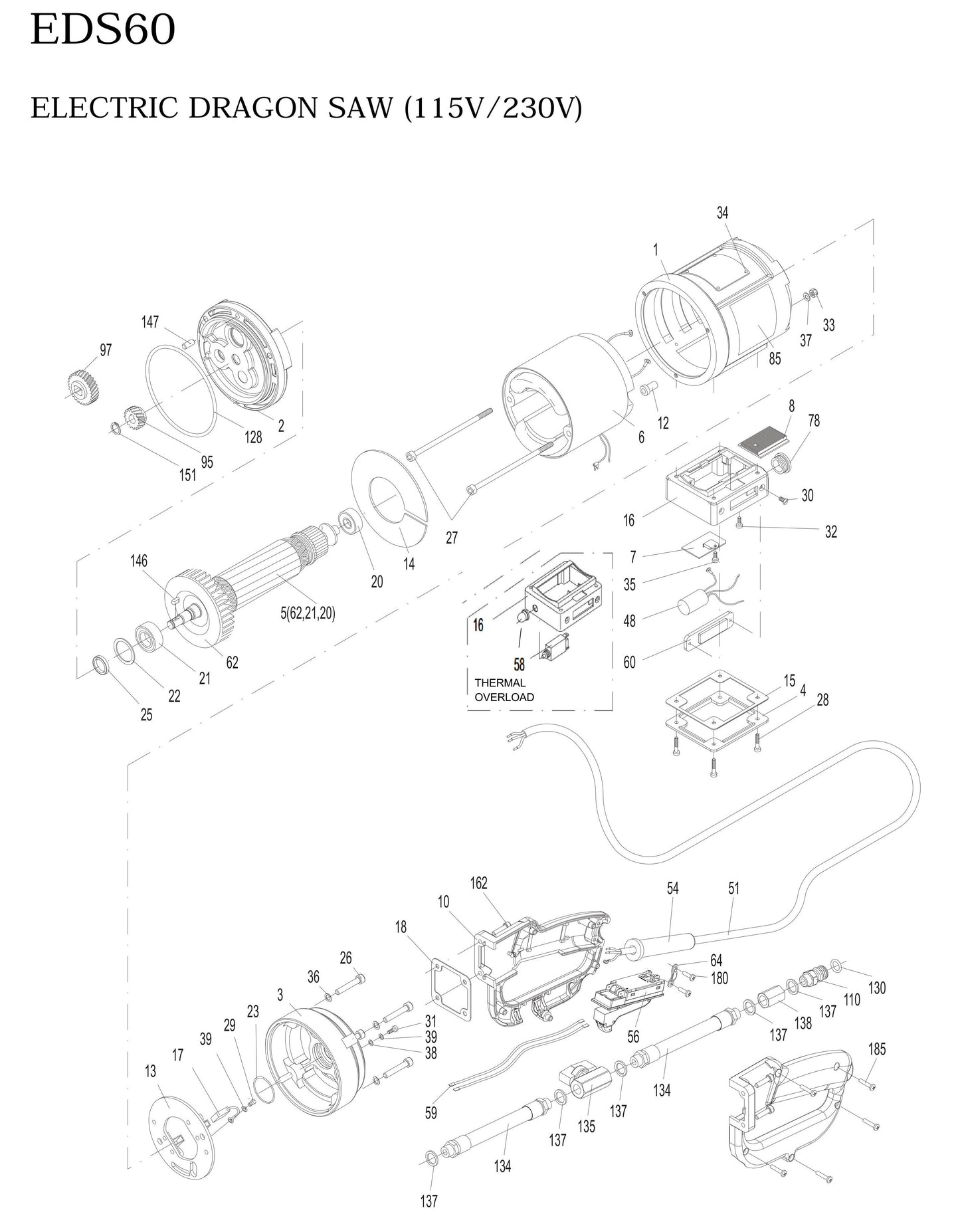

HDS60/GDS60 EDS60 Electric Dragon Saw (115V/230V) Assembly Parts

HDS60/GDS60 EDS60 Electric Dragon Saw (115V/230V) Assembly Parts

  • HDS60/GDS60 EDS60 Electric Dragon Saw (115V/230V) Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2700831 Motor case for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$290.40
2
2707547 Intermediate Flange for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$221.76
3
2707548 Motor Top Hood incl. O-ring for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$738.54
4
2700834 Terminal Case Cover for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$32.36
5
2707162 Armature w- Fan and Bearings - 230V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$508.80
5
2707163 Armature w- Fan and Bearings - 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$582.12
6
2707160 Field compl. - 230V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$341.55
6
2707161 Field compl. - 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$357.39
7
2707549 Electronic Module - 230V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$146.52
7
2707550 Electronic Module - 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$175.23
8
2703261 Cooling Profile for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$32.29
10
2707551 Switch Handle for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$102.23
12
2700839 Field Screw Insulating Sleeve for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$11.41
13
2707552 Brush Holder Disc for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$139.59
14
2700841 Air Conducting Disc for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$10.27
15
2701080 Terminal Case Sealing for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$6.36
16
2703262 Terminal Case for motor electronic for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$50.18
16
2701396 Terminal Case for motor thermal for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$48.35
17
2701532 Carbon Brush - 230V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$19.52
17
2700845 Carbon Brush - 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$23.30
18
2701567 Terminal Case Sealing for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$6.99
20
2700846 Ball Bearing 6201 2Z for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$28.51
21
2700773 Ball Bearing 6002 Z for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$29.62
22
2700848 Compensation Washer for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$6.99
23
2700849 O-Ring RDR 32x3 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$4.99
25
2703241 Rotary Shaft Seal RWD12x24x7 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$23.22
26
2700852 Hex. Socket Head Screw M6x35 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
27
2700853 Hex. Socket Head Screw M5x120 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$11.11
28
2700854 Fill. Head Screw M4x40 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
29
2700855 Fill. Head Screw M4x6 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
30
2707553 Cross Rec. Count. Head Tapping Screw for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
31
2700674 Slot. Pan Head Screw M4x6 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
32
2700675 Pan Head Tapping Screw 3,9x9,5 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
33
2700858 Hexagon Nut M5 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
34
2700678 Round Head grooved Pin 2,3x4 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
35
2701386 Th. Roll. Cheese Hd Screw M4x6 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
36
2700826 Locking Washer SM6 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
37
2700861 Curved Spring Washer A5 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
38
2700680 Curved Spring Washer A4 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
39
2700681 Medium Washer 4.3 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
48
2706625 Suppression Capacitor for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$21.52
51
2707554 Cord 3G1,5x3,8m 230V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
51
2707555 Cord 3G4x3,8m 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$83.94
54
2700685 Cord Sleeve 230V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$9.80
54
2707556 Cord Sleeve 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$14.08
56
2707533 Motor Switch for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$102.92
58
2701918 Thermal Overload 230V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$114.00
58
2701919 Thermal Overload 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$120.78
59
2707557 Motor Strand 230V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$12.91
59
2707558 Motor Strand 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
60
2707559 Cover for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$110.00
62
2700692 Fan for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$31.36
64
2707560 Cord Clamping Piece for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$6.99
78
2707561 Locking Screw M20x1,5 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$4.99
85
2700737 Pointing Sticker for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$9.37
95
2707545 Armature Pinion for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$119.79
97
2707562 Spur Wheel for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$135.60
110
2700706 Quick Connect Nipple for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$24.42
128
2700799 O-Ring RDR102x3 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$6.11
130
2700712 O-Ring RDR11x2,5 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
134
2701939 Hose Piece cpl. with nipples for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$45.70
135
2707565 Ball Valve for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$41.97
137
2700717 Sealing Ring for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
138
2703211 Socket for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$16.14
146
2700815 Parallel Key A4x4x10 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
147
2700816 Parallel Pin 6m6x10 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
151
2707563 Retaining Ring 10x1 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
162
2707564 Hex. Socket Head Screw M5x20 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
180
2702986 Pan Head Tapping Screw 3,9x13 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
185
2700676 Pan Head Tapping Screw 3,9x19 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
