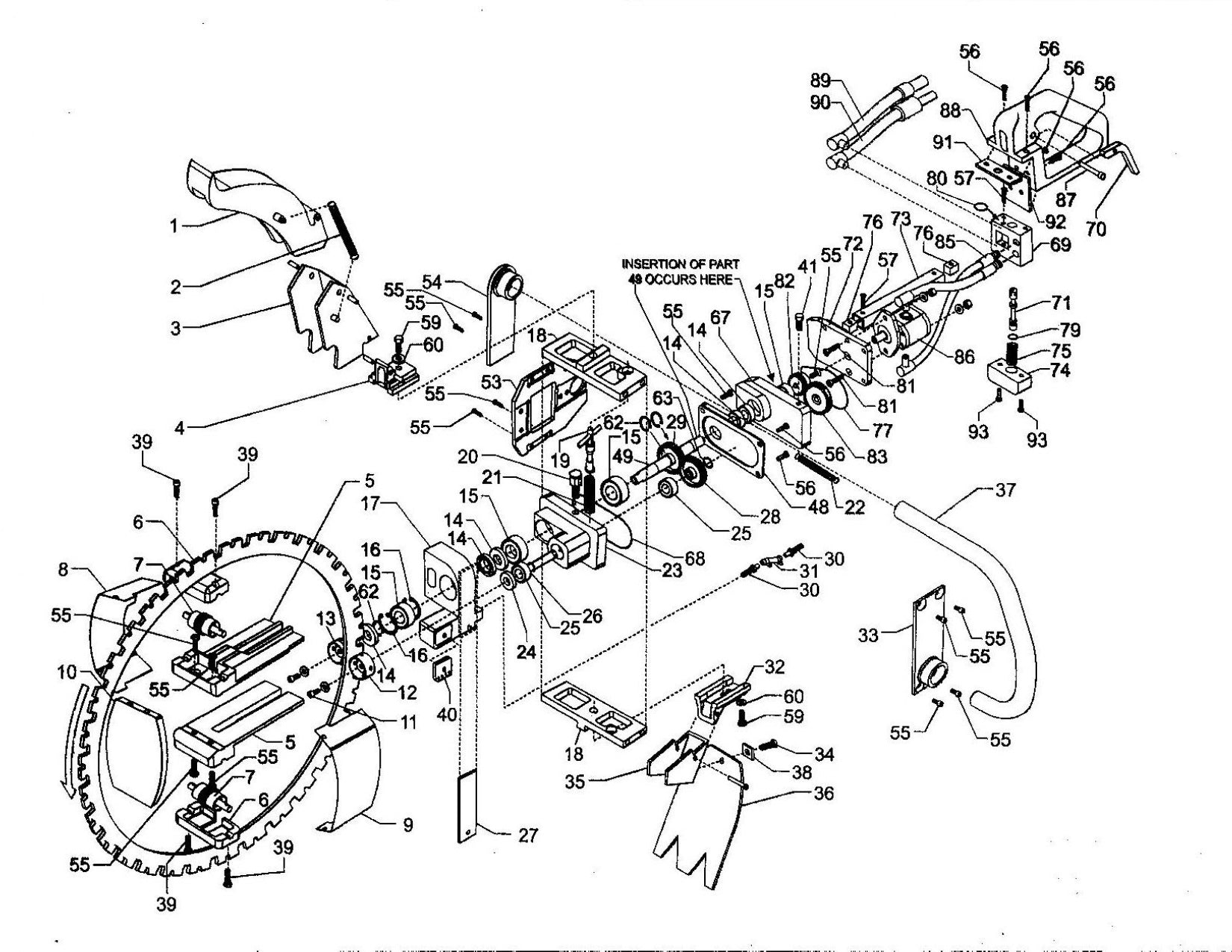

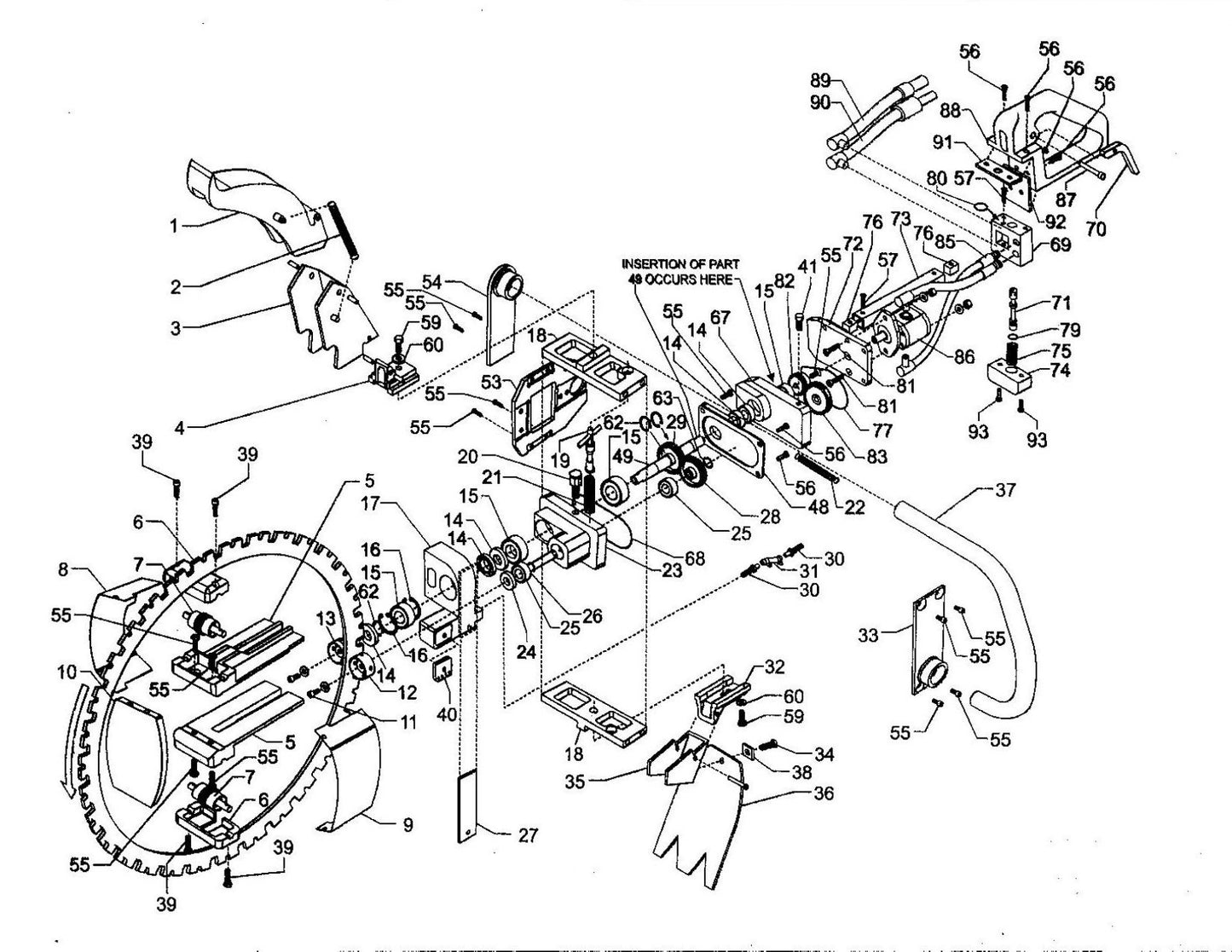

HDS60 Ring Saw Assembly Parts

HDS60 Ring Saw Assembly Parts

  • HDS60 Ring Saw
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6061241 BLADE GUARD ASSEMBLY for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$654.00
1
6061188 BLADE GUARD for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$450.45
2
6061189 SPRING for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$13.99
3
6061190 UPPER GUARD for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$213.84
3
2903244 DOWEL PIN, 1/4" DIA X 1/2" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
4
6061191 CLAMPING BLOCK for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$159.39
5
6061242 ADJUSTABLE ARM ASSEMBLY for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2,651.22
5
6061192 ROLLER ARM for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$264.33
6
6061193 ROLLER ARM COVER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$262.35
7
6061185 GUIDE ROLLER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
8
6061194 SHIELD GUIDE ROLLER LEFT for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$104.38
9
6061195 SHIELD GUIDE ROLLER RIGHT for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$104.38
10
6061196 SHIELD GUIDE ROLLER FRONT for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$387.09
11
2900912 CAP SCREW, SOCKET HEAD 5/16-18 X 3/4" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$3.99
12
6061186 DRIVE ROLLER UPPER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$458.37
13
6061187 DRIVE ROLLER LOWER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$458.37
14
2703968 OIL SEAL for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$42.89
15
2507022 BEARING. BALL 1623-2RS for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$97.90
16
2507020 RETAINING RING 1-3/8" INT. for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$4.99
17
6061197 COOLING BLOCK for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$400.95
18
6061198 SIDE PLATE U&L for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$371.25
19
6061199 ROLLER TENSIONER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$260.37
20
6061200 AIR BREATHER # 1 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
21
6061201 SPRING ROLLER TENSION for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$26.90
22
6061202 SPRING # 2 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$13.99
23
6061203 TRANSMISSION for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$364.32
24
2703969 SEAL for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$20.98
25
2507021 BEARING, BALL 1616-2RS for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$86.34
26
6061204 ROLLER SHAFT UPPER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$243.54
27
6061205 WATER CHANNEL for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$120.00
28
6061206 SPUR GEAR # 1 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
29
6061206 SPUR GEAR # 1 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
28
2901559 KEY, 1/8" X 1/8" X 3/8" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
29
6061207 SPUR GEAR # 2 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
30
6061208 FITTING-WATER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$23.67
31
6061209 HOSE-WATER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$19.37
32
6061210 CLAMP BLOCK LOWER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$159.39
33
6061211 HANDLE BRACKET LOWER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$207.90
34
2900077 SCREW, HEX HEAD CAP 1/4-20 X 7/8" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
35
6061212 GUARD LOWER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$157.41
36
6061213 GUARD RUBBER FLOP for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$126.72
37
6061214 HANDLE-FRONT for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$241.56
38
6061215 SQUARE WASHER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$21.52
40
6061216 WATER INJECTION SKID PLATE for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
40
2903251 SCREW, SOCKET HEAD CAPSCREW #10-32 X 1" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$3.99
41
6061217 VENT-GOR # 2 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$82.86
48
6061218 COVER-TRANSMISSION for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$119.20
49
6061219 SHAFT-TRANSMISSION for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
53
6061220 PLATE-BASE for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$269.28
54
6061221 BRACKET-TOP HANDLE for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$207.90
55
2900020 SCREW, FLAT HEAD 1/4-20 X 3/4" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$3.99
56
2900628 SCREW, FLAT HEAD 1/4-20 X 1/2" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
57
2900144 SCREW, HEX HEAD 1/4-20 X 3/4" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
59
2900196 SCREW, HEX HEAD 3/8-16 X 3/4" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
60
2900014 WASHER, 3/8" FLAT for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
62
2500697 RETAINING RING 1/2" EXT. for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$3.99
63
2500364 RETAINING RING 5/8" EXT. for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$4.99
67
6061222 GEAR BOX for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$449.46
68
2505124 O-RING for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$34.44
69
6061223 VALVE BODY-HYDRAULIC for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$365.31
70
6061224 HANDLE for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$95.77
71
6061225 PLUNGER for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$338.58
72
6061226 COVER-GEAR BOX for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$474.21
73
6061227 STEM for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$104.38
74
6061228 VALVE CAP for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$106.00
75
6061229 SPRING for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$23.67
76
6061230 STEM BLOCK for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$34.44
77
2505125 O-RING for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$34.44
79
2505126 SEAL-QUAD for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
80
2706791 SEAL-QUAD for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
81
2902985 SCREW, FLAT HEAD 1/4-20 X 1-1/4" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
82
6061231 GEAR SMALL for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$208.89
83
6061232 GEAR LARGE for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$234.63
85
6061233 HOSE ASSEMBLY # 2 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
86
6061234 MOTOR CASAPPA for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$1,529.55
87
2900088 SCREW, SOCKET HEAD CAP 1/4-20 X 1" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
88
6061235 HANDLE ASSEMBLY for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$577.17
89
6061236 HOSE ASSEMBLY # 3 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
90
6061237 HOSE ASSEMBLY # 4 for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
91
6061238 INSULATOR-HEAT SMALL for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$36.59
92
6061239 INSULATOR-HEAT LARGE for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$36.59
94
6061240 REBIULD KIT, DRAGON SAW (INCLUDES ALL BEARINGS, SEALS AND LUBRICANT) for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$454.41
39
2903250 SCREW, SOCKET HEAD CAP 10/32 X 7/8" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
93
2903250 SCREW, SOCKET HEAD CAP 10/32 X 7/8" for HDS60 Ring Saw Concrete Saw Core Cut by Diamond Products
$2.99
