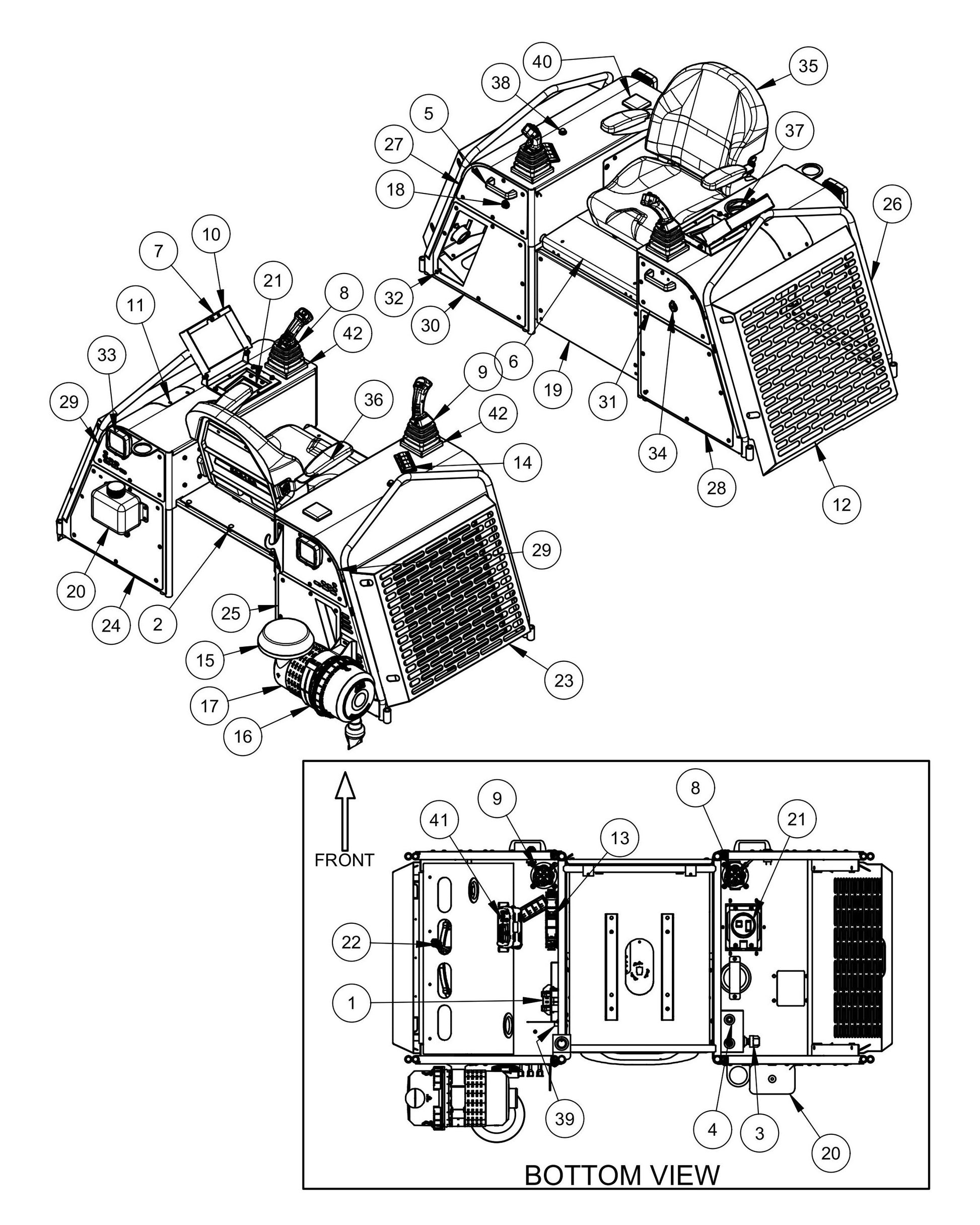

HDX600 (6-Boss) Seat Frame Assembly Parts

HDX600 (6-Boss) Seat Frame Assembly Parts

  • HDX600 (6-Boss) Seat Frame Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
-
036554 FUSE, 5 AMP by Allen Engineering
$5.99
2
047665 Bumper, Rubber F/ Seat Plate Stop by Allen Enginnering
$3.99
3
047886 CAP, FILLER BREATHER SPB-S-1-10-N04 by Allen Engineering
$50.40
5
048678 Handle, Load Rated Nylon by Allen Enginnering
$37.35
8
064510 Joystick Lh by Allen Enginnering
$2,241.00
-
052691 Handle, Hdx600 Lh Joystick by Allen Enginnering
$989.40
9
064511 Joy Stick Control, Right Hand by Allen Enginnering
$2,141.28
-
052690 Handle, Hdx600 Rh Joystick by Allen Enginnering
$600.26
10
064526 WELDT, ENGINE DISPLAY COVER HDX760 by Allen Engineering
$162.00
11
064528 COVER, RADIATOR ACCES POINT FOR SEA by Allen Engineering
$40.80
14
065143 Kit, 4 Switch Block (Must Be Pre-Programmed) by Allen Enginnering
$797.80
15
065188 Air Bonnet F/Hatz H50(In Engine Kit by Allen Enginnering
$308.14
16
065189 Hatz Air Cleaner 4H50 Band by Allen Enginnering
$138.94
17
065190 Air Filter Assembly from Hatz by Allen Engineering
$673.20
-
065855 Filter Element, Air Filter Secondary by Allen Enginnering
$125.50
-
065856 Filter Element, Air Filter Main by Allen Enginnering
$156.87
18
065191 Key Switch Lofa F/ Hatz Engine by Allen Enginnering
$169.20
21
066227 MURPHY CONTROLLER PV380-R2 by Allen Engineering
$2,115.60
22
066911 COOLER AND SHROUND ASSEMBLY FOR HDX by Allen Engineering
$284.40
33
069835 Light, Led 1200 Lumen (1.3 Amp) by Allen Enginnering
$203.93
34
069850 RECEPTICAL, USB 12VDC by Allen Engineering
$92.40
35
069874 Seat, Rider (Seat Only) by Allen Enginnering
$734.55
-
061374 Switch, Kill Seat With Wire, N/O 90 by Allen Enginnering
$39.84
36
069875 Arm Rest, Rider Seat (Rh/Lh Set) by Allen Enginnering
$217.38
38
076952 LIGHT, LED INDICATOR RED by Allen Engineering
$105.60
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
