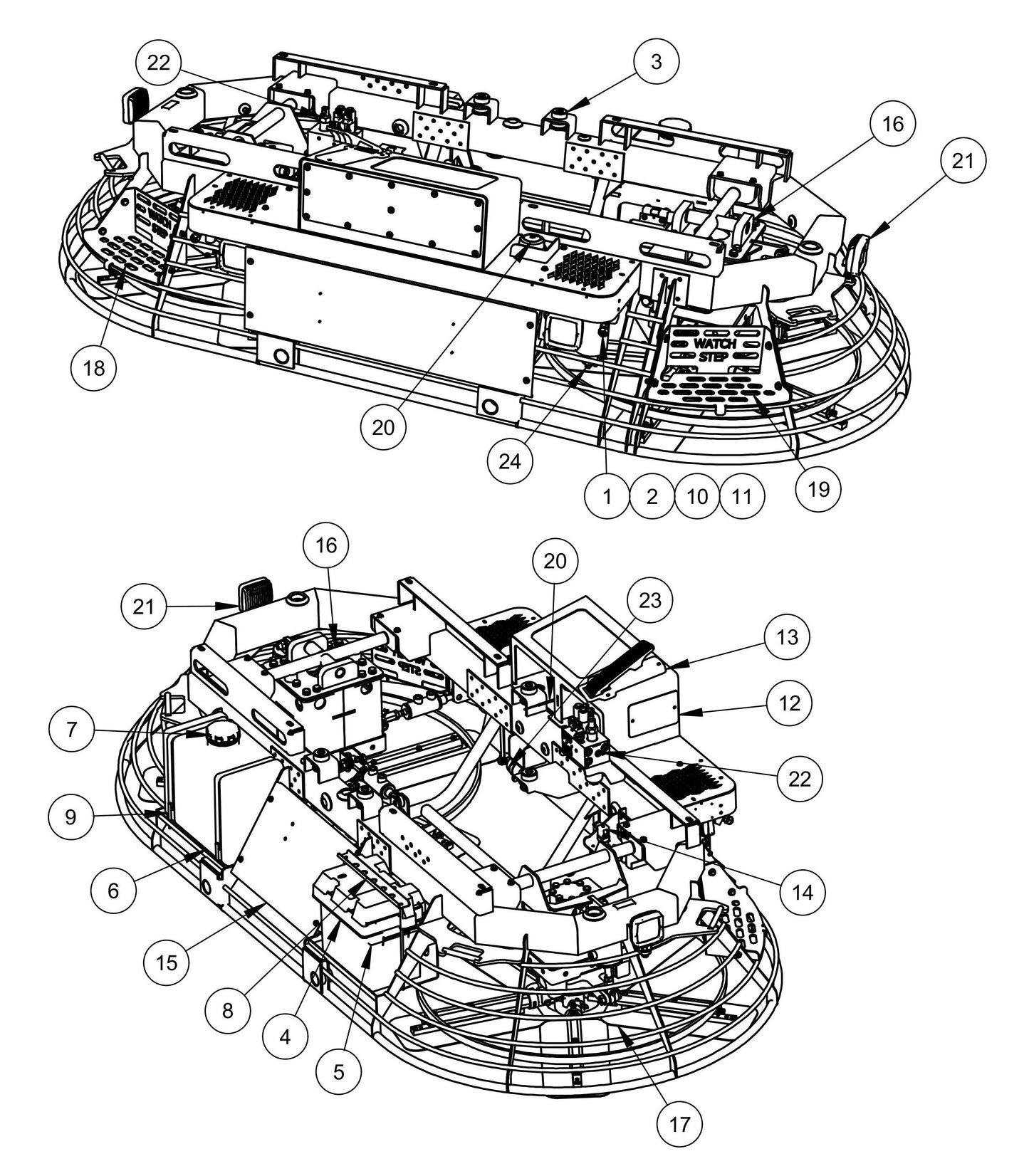

HDX600 (5-Boss) Lower Unit Assembly Parts By Allen Engineering

HDX600 (5-Boss) Lower Unit Assembly Parts By Allen Engineering

  • HDX600 (5-Boss) Lower Unit Assembly Parts By Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
012702 Tip--Spray 8001 (Fine) by Allen Enginnering
$46.44
2
041624 Retainer, Nylon Spray Tip by Allen Enginnering
$8.72
3
045757 Isol, Rear Neoprene Motor Mt by Allen Enginnering
$90.89
4
046696 Box, Standard Battery by Allen Enginnering
$56.03
5
047604 Battery, 700Cca 12V 48-B by Allen Enginnering
$528.88
6
047700 Tank, 6 Gallon Water Plastic by Allen Enginnering
$329.43
7
047701 Cap, 3-1/2" Black Thrd Vent W/Tethe by Allen Enginnering
$52.80
8
048563 Channel, Battery Hold-Down X1 by Allen Enginnering
$131.97
9
048921 Weldt, Tank Strap by Allen Enginnering
$109.81
10
049957 Nozzle Body W/O Check Valve Spray by Allen Enginnering
$14.40
11
049982 Wldmt, Lh Spray Bracket by Allen Enginnering
$121.01
13
063341 Foot Pedal, Electronic For Riders by Allen Enginnering
$1,120.50
14
065141 Filter, High Pressure Hdx760 by Allen Enginnering
$1,675.15
18
068370 Weldt, Rh Step For Hdx600X Riding Trowel by Allen Enginnering
$239.79
19
068375 Weldt, Lh Step For Hdx600X Riding Trowel by Allen Enginnering
$240.91
20
069007 ASSEMBLY, FUEL TANK FOR HDX600X by Allen Engineering
$3,942.00
21
069835 Light, Led 1200 Lumen (1.3 Amp) by Allen Enginnering
$203.93
24
065852 Filter Element, Fuel Filter Hatz H5 by Allen Enginnering
$302.54
25
065851 Filter Element, Pre-Fuel Filter Hat by Allen Enginnering
$266.68
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
