HDX605 (5-Boss) Seat Frame Assembly-2 Parts

HDX605 (5-Boss) Seat Frame Assembly-2 Parts

  • HDX605 (5-Boss) Seat Frame Assembly-2 Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
018264 INSULATOR RUBBER SAFETY SWITCH by Allen Engineering
$3.99
3
032125 Switch,Rocker#91B2184(26878037Ver#1 by Allen Enginnering
$58.80
4
034610 Lamp Socket by Allen Enginnering
$36.11
5
034611 Lamp, T-2 Slide Base #5 by Allen Enginnering
$8.72
7
034613 LENS, T-2 LAMP GREEN JEWELED by Allen Engineering
$12.00
8
034614 Lens, T-2 Lamp Red Jeweled by Allen Enginnering
$7.20
9
034621 Horn, 12 Volt by Allen Enginnering
$77.88
10
041537 Holder, Cup For Riders by Allen Enginnering
$14.52
11
047314 RESERVOIR, COOLANT OVERFLOW 2QT TAN by Allen Engineering
$128.40
12
047665 Bumper, Rubber F/ Seat Plate Stop by Allen Enginnering
$3.99
13
047886 CAP, FILLER BREATHER SPB-S-1-10-N04 by Allen Engineering
$50.40
15
048678 Handle, Load Rated Nylon by Allen Enginnering
$37.35
17
069850 RECEPTICAL, USB 12VDC by Allen Engineering
$92.40
26
061372 907 SEAT, RIDER (SEAT ONLY) USE 069874 by Allen Engineering
$380.40
27
061373 Arm Rest, Rider Seat (Rh/Lh Set) 90 by Allen Enginnering
$227.46
28
064510 Joystick Lh by Allen Enginnering
$2,241.00
-
052690 Handle, Hdx600 Rh Joystick by Allen Enginnering
$600.26
29
064511 Joy Stick Control, Right Hand by Allen Enginnering
$2,141.28
-
052691 Handle, Hdx600 Lh Joystick by Allen Enginnering
$989.40
30
065134 FRONT COVER PLATE, FOR GROUNDING by Allen Engineering
$38.40
38
065613 SHIELD, HDX605 MUFFLER HEAT by Allen Engineering
$247.20
41
066227 MURPHY CONTROLLER PV380-R2 by Allen Engineering
$2,115.60
42
066237 Air Cleaner 2S-Vlr-E2-St by Allen Enginnering
$296.93
43
066764 COVER, COOLANT FILL HDX605 by Allen Engineering
$172.80
44
066907 COVER, REAR LH TOP HDX605 by Allen Engineering
$148.80
51
068166 Switch, Sealed Key 95060 by Allen Enginnering
$307.02
-
070075 Key, Engine, Replacement, Fits 95060-26 Switch by Allen Enginnering
$75.00
54
069221 VERNIER CONTROL CABLE 5 FT by Allen Engineering
$1,063.20
55
069613 Pin, Solid Contact, 20-16 Ga Nickel Plated Deutsch by Allen Enginnering
$43.58
61
069835 Light, Led 1200 Lumen (1.3 Amp) by Allen Enginnering
$203.93
62
061374 Switch, Kill Seat With Wire, N/O 90 by Allen Enginnering
$39.84
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

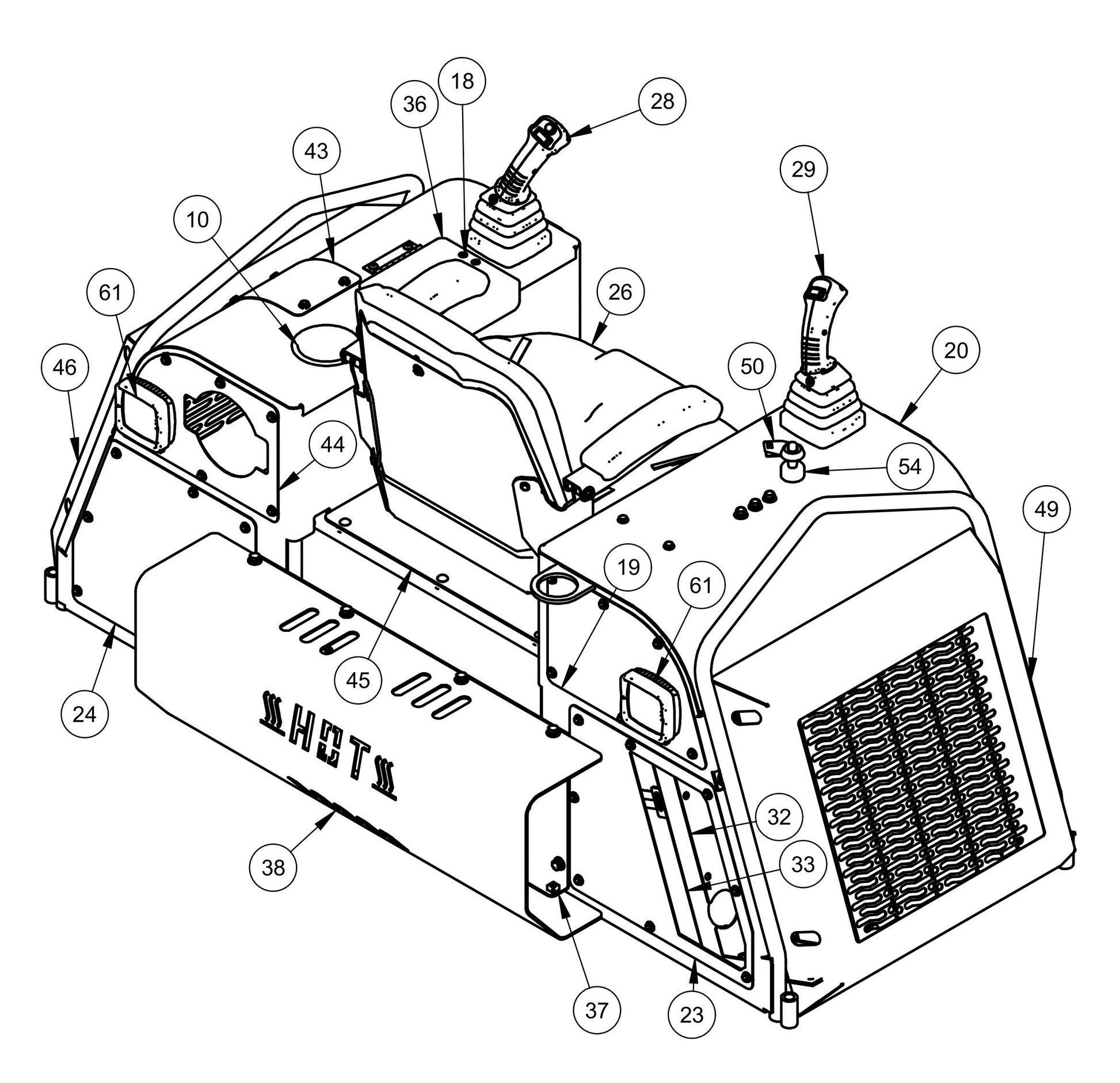

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
