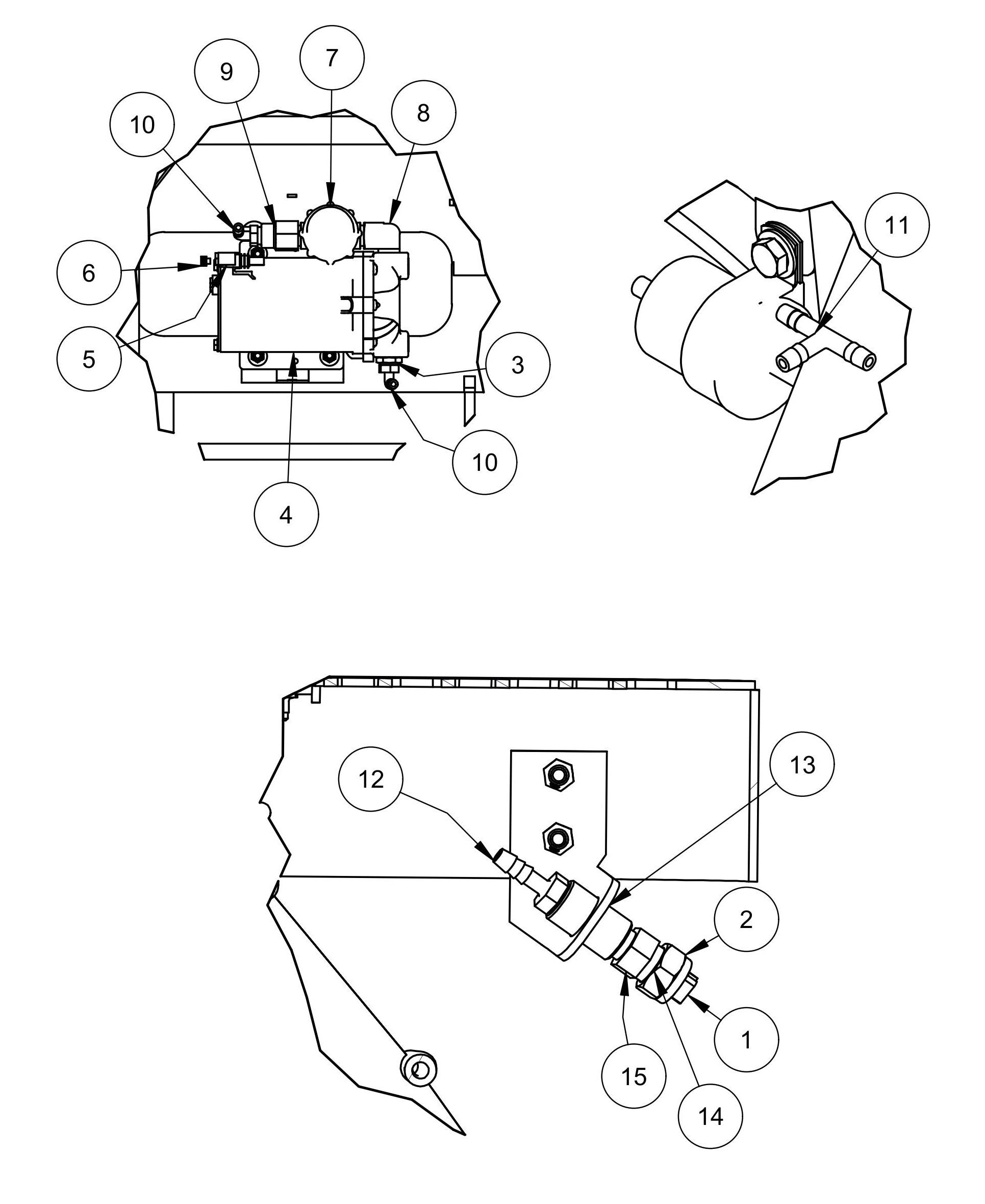

HDX605 (5-Boss) Spray System Assembly Parts

HDX605 (5-Boss) Spray System Assembly Parts

  • HDX605 (5-Boss) Spray System Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
012702 Tip--Spray 8001 (Fine) by Allen Enginnering
$46.44
2
012705 Spraying S Cp 1325 Brass Nozzle Nut by Allen Enginnering
$13.70
3
013557 Bushing, 3/8 X 1/4 Brass Hex by Allen Enginnering
$9.00
4
033735 Pump, Spray System by Allen Enginnering
$225.22
5
038641 HOUSING, FEMALE TERM 2 CONTACT by Allen Engineering
$8.10
6
038648 Cavity Seal F/ 16-14 - Gray by Allen Enginnering
$4.95
7
040209 Filter, Rider Spray System by Allen Enginnering
$65.80
8
040387 Elbow, 3/8 Brass 90° Street by Allen Enginnering
$31.13
9
040388 Ftg, 3/8X1/4 Brass Fm To Fm Reducer by Allen Enginnering
$19.92
10
047933 Elbow, 1/4 Pushlok X 1/4 Npt Plasti by Allen Enginnering
$14.40
11
048652 Tee, Plastic 1/4 X 1/4 X 1/4 by Allen Enginnering
$7.20
12
048653 Barb, Hose Plastic 1/4" X 1/4 Npt by Allen Enginnering
$4.99
13
049982 Wldmt, Lh Spray Bracket by Allen Enginnering
$121.01
-
049981 Wldmt, Rh Spray Bracket by Allen Enginnering
$121.01
14
065244 Screen W/ Check Valve (Blue) 50 Mes by Allen Enginnering
$26.40
15
071531 Nozzle Body, Male Straight Tee Jet Brass by Allen Enginnering
$32.37
-
048246 Hose, 3/8" Water Line by Allen Enginnering
$4.95
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
