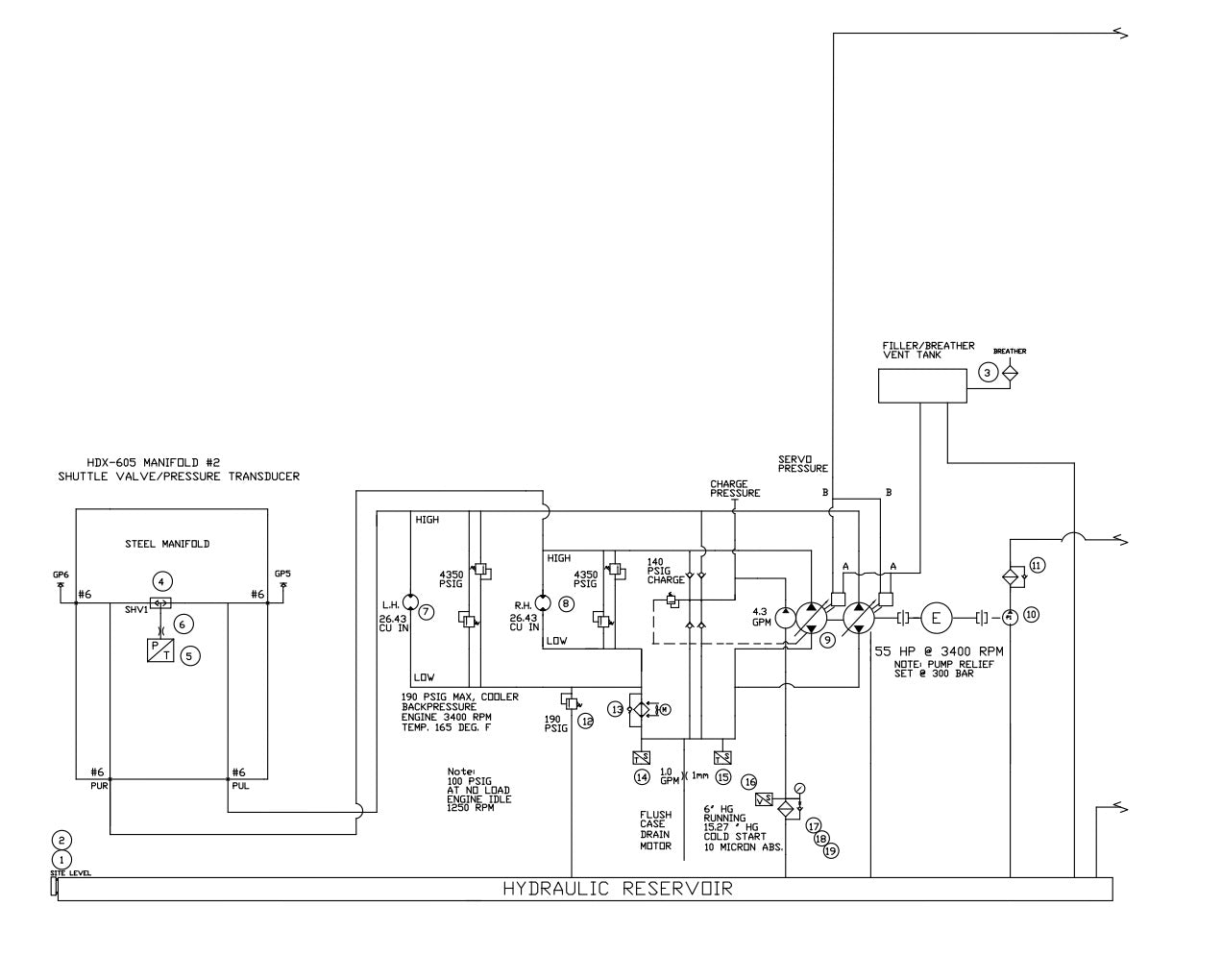

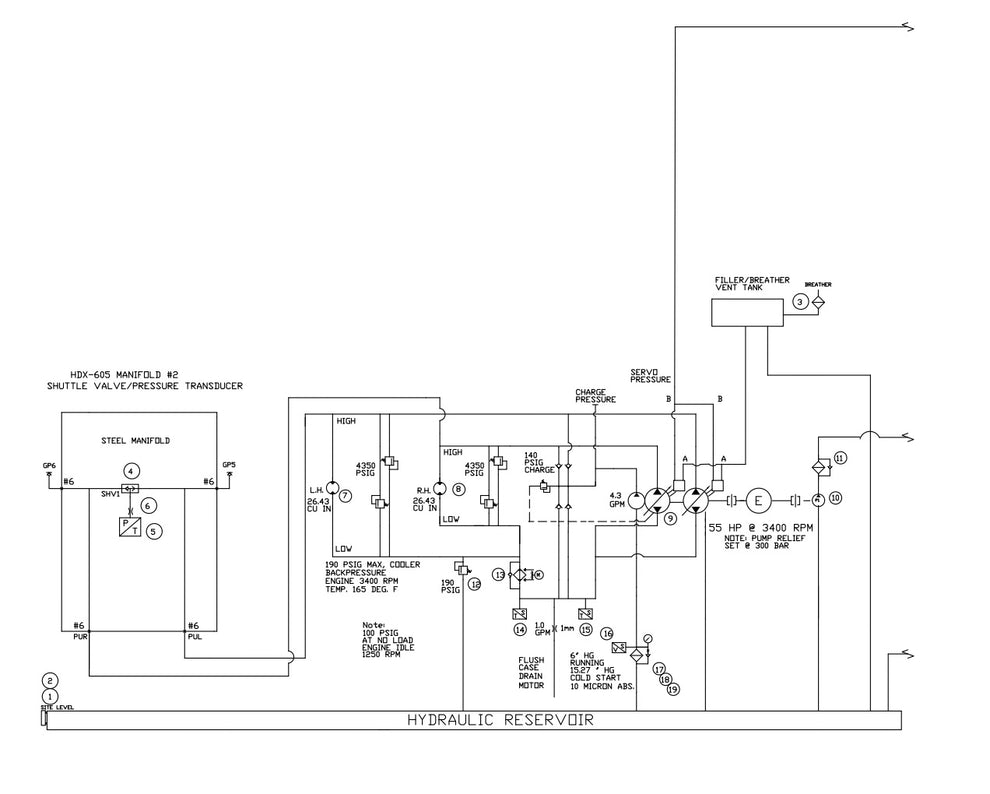

HDX605 (6-Boss) Hydraulic System Assembly Parts By Allen Engineering

HDX605 (6-Boss) Hydraulic System Assembly Parts By Allen Engineering

  • HDX605 Hydra Drive Extreme Riders Hydraulic System Assembly Parts By Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
068618 Transducer, Pressure Sp3381 by Allen Enginnering
$996.12
5
068616 COOLER, HYDRAULIC, HP18-12B-BP-44 by Allen Engineering
$10,320.00
6
068620 SWITCH, COOLER FAN SOFT START TMR45-12 by Allen Engineering
$1,038.00
9
068626 SWITCH, SUCTION FILTER, SVF-7R-2M-C-F by Allen Engineering
$219.60
10
066149 SUCTION FILTER HEAD by Allen Engineering
$260.40
11
049801 Filter, Spin-On Hdx750 by Allen Enginnering
$896.40
12
046369 Gv-5 Suction Gauge by Allen Enginnering
$119.89
13
068619 MANIFOLD, STEERING SP.3380 by Allen Engineering
$4,264.80
15
048659 Cylinder, Pitch X1 by Allen Enginnering
$1,788.32
16
048660 Hdx 600/740/610 1.50X5/8X5/8 L/R/Fwd/Rev Stg Cyl by Allen Enginnering
$1,434.24
17
048661 Cylinder, 1.5X1.25 Steering by Allen Enginnering
$1,400.63
18
064511 Joy Stick Control, Right Hand by Allen Enginnering
$2,141.28
19
064510 Joystick Lh by Allen Enginnering
$2,241.00
20
046921 VALVE, FOOT PEDAL CONTROL(610) by Allen Engineering
$930.00
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
