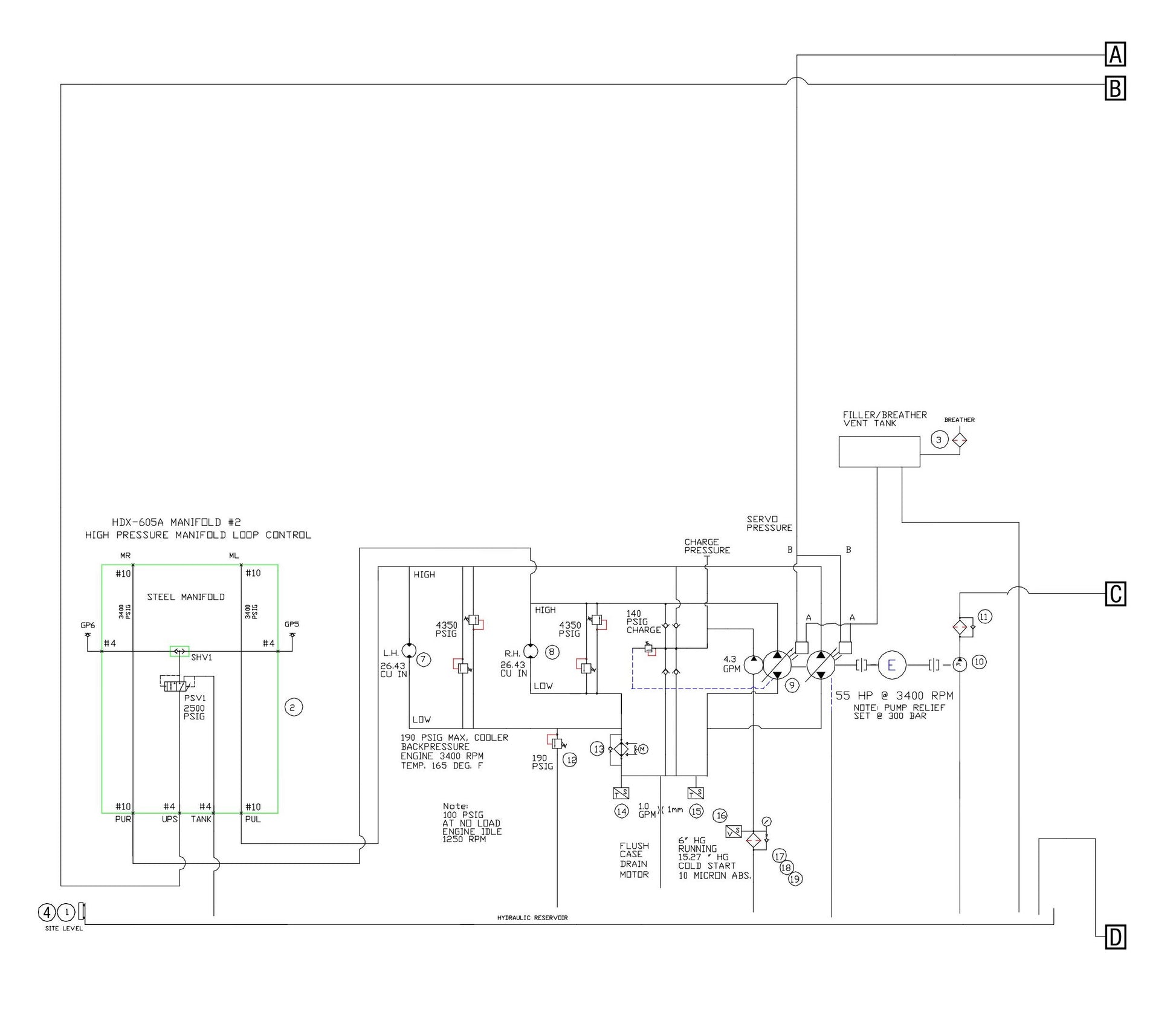

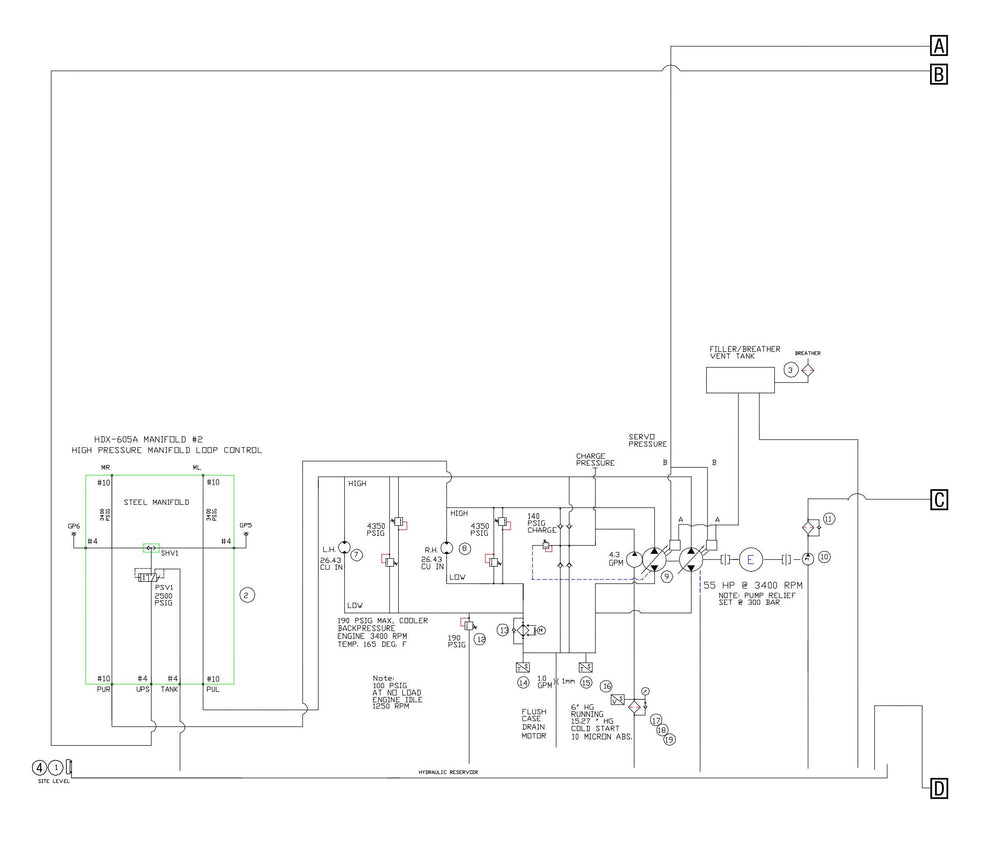

HDX615 Hydraulic System Assembly Parts

HDX615 Hydraulic System Assembly Parts

  • HDX615 Hydraulic System Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
046731 Sight Glass Slw-Cl-12-Sae by Allen Enginnering
$218.50
2
048657 Manifold, High Pressure X1 by Allen Enginnering
$583.78
3
047886 CAP, FILLER BREATHER SPB-S-1-10-N04 by Allen Engineering
$50.40
4
045948 FTG, 7574051 MAGNETIC #12 PLUG by Allen Engineering
$60.00
9
068610 Pump, Tandem Piston Hansa 1500-Tpvtc by Allen Enginnering
$12,213.45
11
043475 Filter,Hd550&780 Manifold 9054-90-S by Allen Enginnering
$596.11
13
068616 COOLER, HYDRAULIC, HP18-12B-BP-44 by Allen Engineering
$10,320.00
-
068620 SWITCH, COOLER FAN SOFT START TMR45-12 by Allen Engineering
$1,038.00
16
068626 SWITCH, SUCTION FILTER, SVF-7R-2M-C-F by Allen Engineering
$219.60
17
066149 SUCTION FILTER HEAD by Allen Engineering
$260.40
18
049801 Filter, Spin-On Hdx750 by Allen Enginnering
$896.40
19
046369 Gv-5 Suction Gauge by Allen Enginnering
$119.89
20
068619 MANIFOLD, STEERING SP.3380 by Allen Engineering
$4,264.80
22
048659 Cylinder, Pitch X1 by Allen Enginnering
$1,788.32
23
048660 Hdx 600/740/610 1.50X5/8X5/8 L/R/Fwd/Rev Stg Cyl by Allen Enginnering
$1,434.24
24
048661 Cylinder, 1.5X1.25 Steering by Allen Enginnering
$1,400.63
25
064511 Joy Stick Control, Right Hand by Allen Enginnering
$2,141.28
26
064510 Joystick Lh by Allen Enginnering
$2,241.00
27
046921 VALVE, FOOT PEDAL CONTROL(610) by Allen Engineering
$930.00
