HDX615 Seat Frame Assembly Parts

HDX615 Seat Frame Assembly Parts

  • HDX615 Seat Frame Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
011238 Fstn, Nut Hex Nylok 1/2-13 by Allen Enginnering
$4.95
3
011490 Fstn, Fw Hardened 1/2 Gr 8 by Allen Enginnering
$4.95
4
032125 Switch,Rocker#91B2184(26878037Ver#1 by Allen Enginnering
$58.80
5
047314 RESERVOIR, COOLANT OVERFLOW 2QT TAN by Allen Engineering
$128.40
6
047665 Bumper, Rubber F/ Seat Plate Stop by Allen Enginnering
$3.99
7
047886 CAP, FILLER BREATHER SPB-S-1-10-N04 by Allen Engineering
$50.40
9
048678 Handle, Load Rated Nylon by Allen Enginnering
$37.35
10
048681 Grommet, Rubber 5/8 Id X 1-1/8 Od by Allen Enginnering
$7.20
12
054903 GUAGE, 2" FUEL GAUGE MURPHY EG21-F-12-A by Allen Engineering
$192.00
14
064510 JOYSTICK LH by Allen Engineering
$2,400.00
15
064511 Joy Stick Control, Right Hand by Allen Enginnering
$2,141.28
16
065134 FRONT COVER PLATE, FOR GROUNDING by Allen Engineering
$38.40
19
068166 Switch, Sealed Key 95060 by Allen Enginnering
$307.02
21
069221 VERNIER CONTROL CABLE 5 FT by Allen Engineering
$1,063.20
22
069835 Light, Led 1200 Lumen (1.3 Amp) by Allen Enginnering
$203.93
23
069850 RECEPTICAL, USB 12VDC by Allen Engineering
$92.40
24
069874 Seat, Rider (Seat Only) by Allen Enginnering
$734.55
25
069875 Arm Rest, Rider Seat (Rh/Lh Set) by Allen Enginnering
$217.38
29
074704 DISPLAY, PV25 2" ROUND MURPHY by Allen Engineering
$1,124.40
47
076952 LIGHT, LED INDICATOR RED by Allen Engineering
$105.60
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

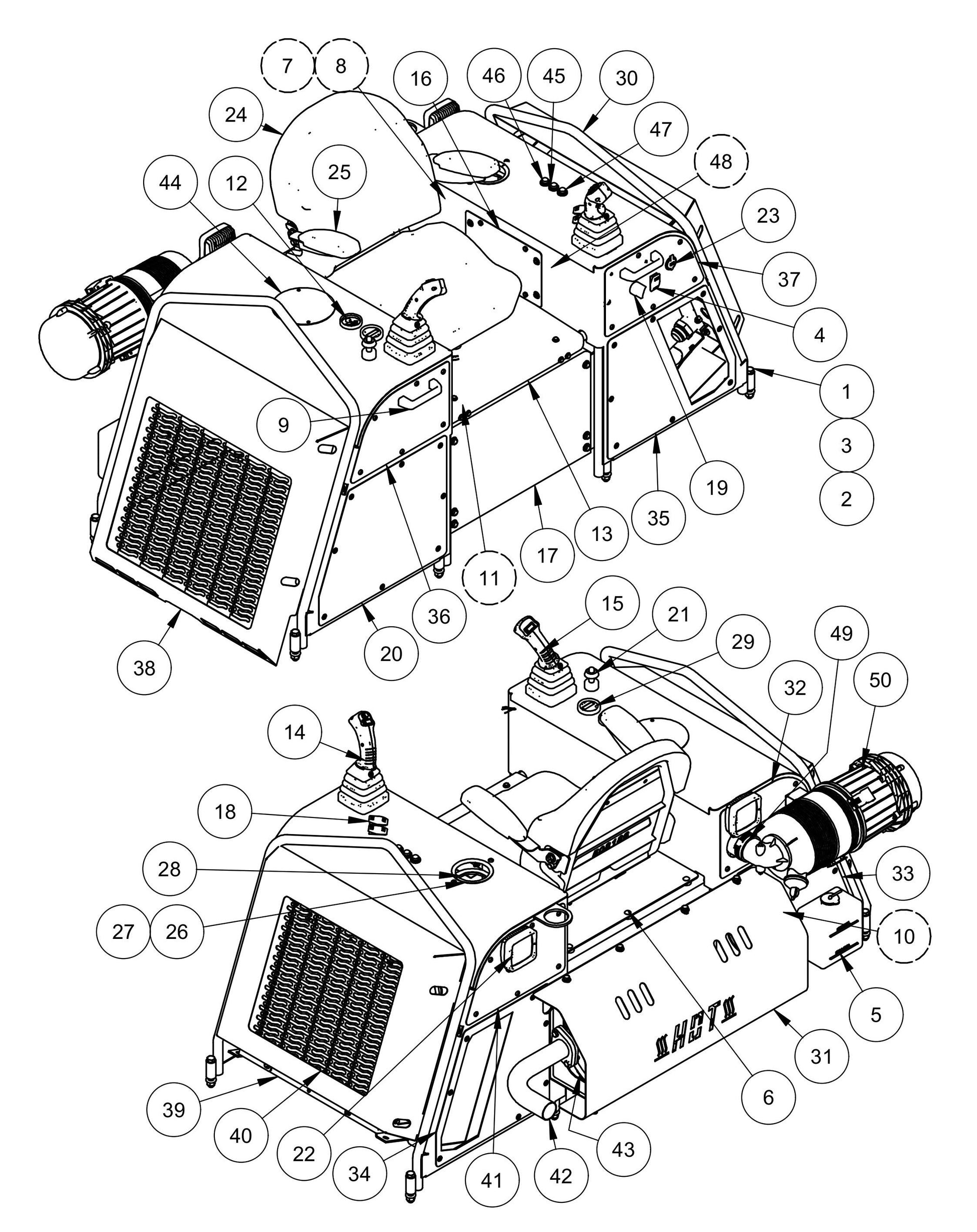

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
