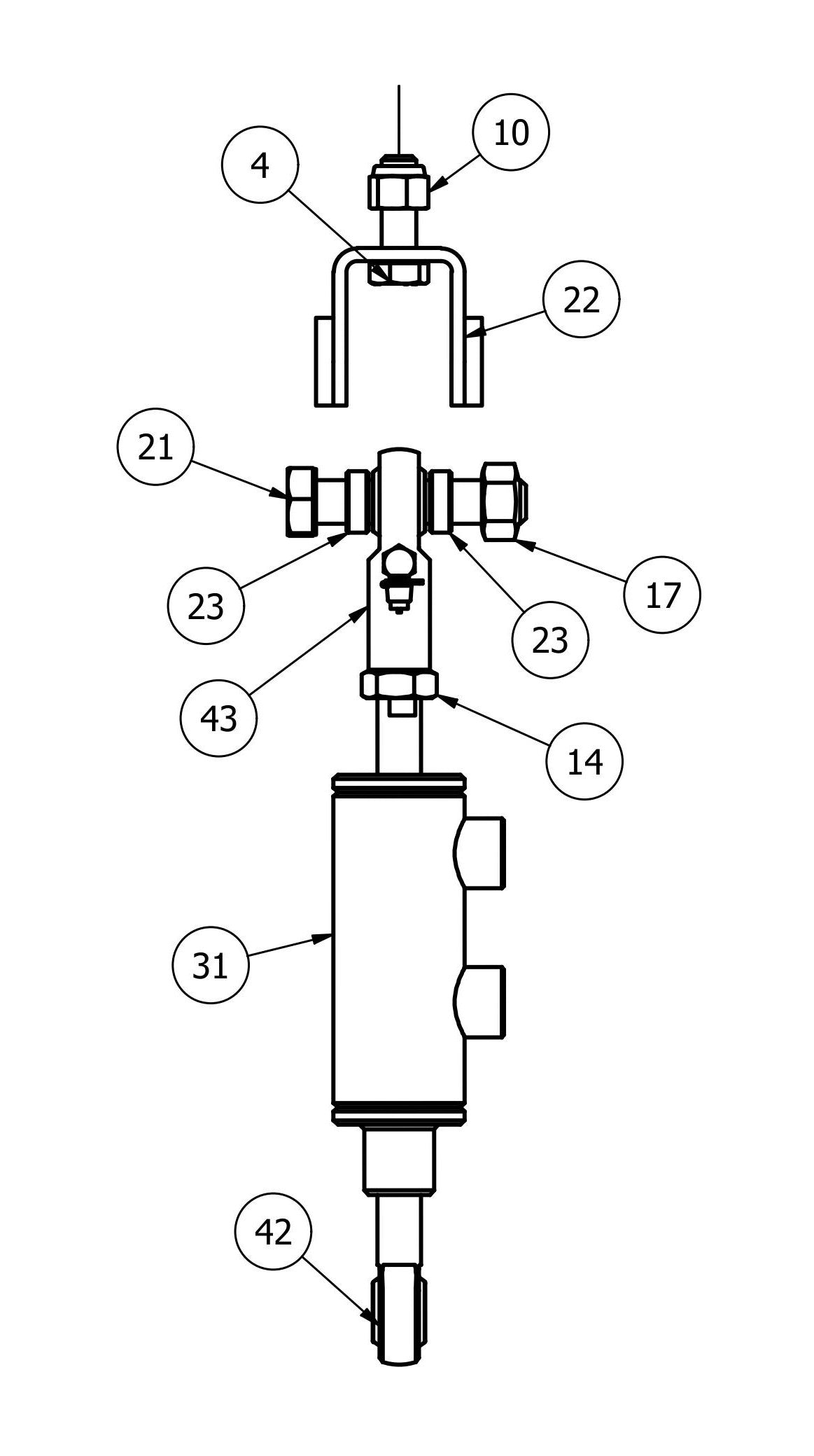

HDX705 Rotor (Right Hand) Assembly-2 Parts

HDX705 Rotor (Right Hand) Assembly-2 Parts

  • HDX705 Rotor (Right Hand) Assembly-2 Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
4
010069 Fstn Hhcs 1/2-13 X 1-1/2 Grd8 by Allen Enginnering
$4.95
10
011238 Fstn, Nut Hex Nylok 1/2-13 by Allen Enginnering
$4.95
14
020688 Fstn, Nut Hex Jam 5/8-18 Rh by Allen Enginnering
$5.99
17
043269 Fstn, Nut Stover 5/8-18 by Allen Enginnering
$5.40
21
048339 FSTN, HHCS 5/8-18 X 3 GR 8 by Allen Engineering
$9.72
22
048624 Weldt, Steering Connector Channel X1 by Allen Enginnering
$152.39
23
048627 Spacer, Steering Cylinder X1 by Allen Enginnering
$14.94
31
050718 Cylinder, 1.5X1.5 Steering by Allen Enginnering
$1,489.14
42
065446 Rod End Male 5/8"(Am-10)Silver Hd by Allen Enginnering
$235.31
43
066188 Rod, End Female 5/8 by Allen Enginnering
$207.29
