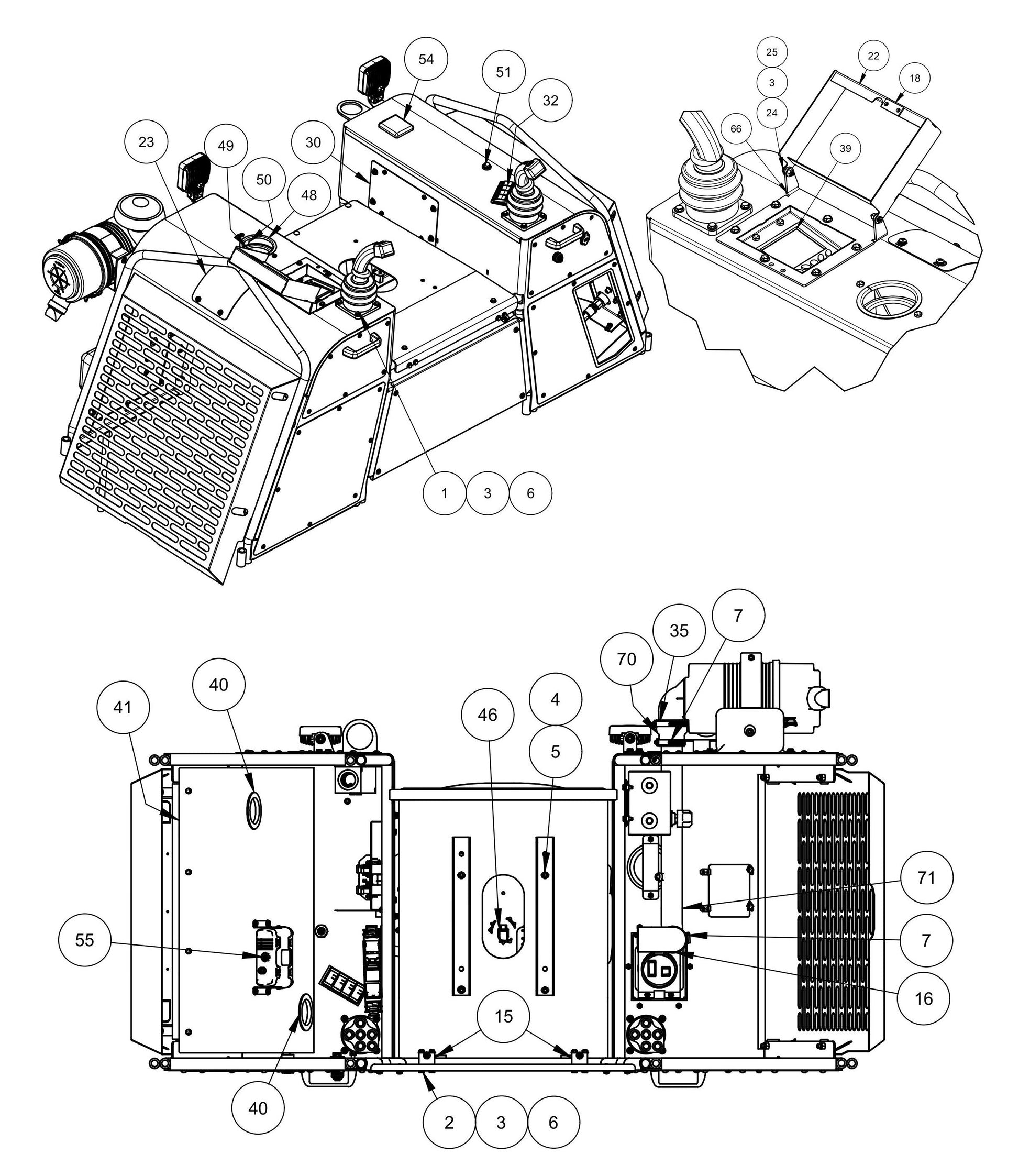

HDX705 Seat Frame Assembly-2 Parts

HDX705 Seat Frame Assembly-2 Parts

  • HDX705 Seat Frame Assembly-2 Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010003 Fstn, Hhcs 1/4-20 X 1 Grd8 by Allen Enginnering
$2.99
2
010007 Fstn, Hhcs 1/4-20 X 2 Grd8 by Allen Enginnering
$4.95
3
010081 Fstn, Fw 1/4 Grd8 by Allen Enginnering
$4.95
4
010082 Fstn, Fw 5/16 Gr8 by Allen Enginnering
$2.99
5
012612 Fstn, Nut Hex Nylock 5/16-18 Gr by Allen Enginnering
$4.95
6
020542 Fstn, Nut Stover Lock 1/4-20 by Allen Enginnering
$4.95
8
047665 Bumper, Rubber F/ Seat Plate Stop by Allen Enginnering
$3.99
9
047886 CAP, FILLER BREATHER SPB-S-1-10-N04 by Allen Engineering
$50.40
10
048302 Joystick, Rh 780/Hdx600 181420096-S by Allen Enginnering
$2,065.08
11
048303 Joystick, Lh 780/Hdx600 181420097-S by Allen Enginnering
$1,848.83
13
048678 Handle, Load Rated Nylon by Allen Enginnering
$37.35
14
048681 Grommet, Rubber 5/8 Id X 1-1/8 Od by Allen Enginnering
$7.20
16
049581 ELBOW, 2" I.D. 90 DEGREE RUBBER by Allen Engineering
$120.00
19
061374 Switch, Kill Seat With Wire, N/O 90 by Allen Enginnering
$39.84
20
064496 COVER,REAR TOP RH & LH FOR SEAT by Allen Engineering
$49.20
22
064526 WELDT, ENGINE DISPLAY COVER HDX760 by Allen Engineering
$162.00
23
064528 COVER, RADIATOR ACCES POINT FOR SEA by Allen Engineering
$40.80
30
065134 FRONT COVER PLATE, FOR GROUNDING by Allen Engineering
$38.40
32
065143 Kit, 4 Switch Block (Must Be Pre-Programmed) by Allen Enginnering
$797.80
34
065191 Key Switch Lofa F/ Hatz Engine by Allen Enginnering
$169.20
39
066227 MURPHY CONTROLLER PV380-R2 by Allen Engineering
$2,115.60
40
066911 COOLER AND SHROUND ASSEMBLY FOR HDX by Allen Engineering
$284.40
44
069835 Light, Led 1200 Lumen (1.3 Amp) by Allen Enginnering
$203.93
45
069850 RECEPTICAL, USB 12VDC by Allen Engineering
$92.40
46
069874 Seat, Rider (Seat Only) by Allen Enginnering
$734.55
47
069875 Arm Rest, Rider Seat (Rh/Lh Set) by Allen Enginnering
$217.38
51
076952 LIGHT, LED INDICATOR RED by Allen Engineering
$105.60
