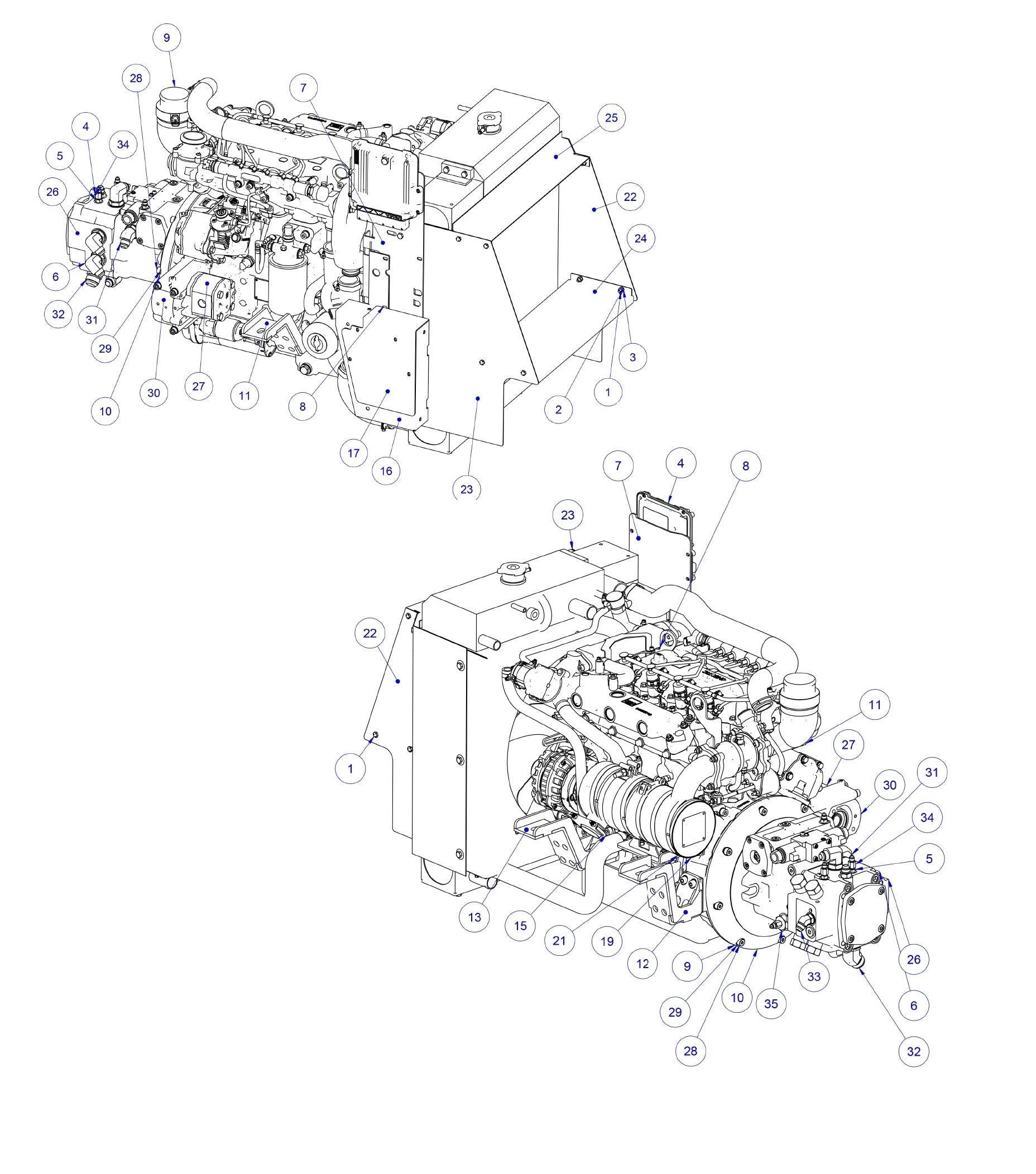

HDX760 Power Unit Assembly Parts by Allen Engineering

HDX760 Power Unit Assembly Parts by Allen Engineering

  • HDX760 Hydra Drive Extreme Riders Power Unit Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010002 Fstn, Hhcs 1/4-20 X 3/4 Gr8 by Allen Enginnering
$2.99
2
010089 Fstn, Lw 1/4 by Allen Enginnering
$4.95
3
010098 Fstn, Nut Hex 1/4-20 Grd8 by Allen Enginnering
$4.95
4
045921 Ftg, F6400-8-8-O Straight Thrd Connector by Allen Enginnering
$12.45
5
045928 Ftg, F6400-4-4-O Str Jic-Sae by Allen Enginnering
$16.20
9
064286 ENGINE, HATZ 4H50TIC by Allen Engineering
$18,000.00
10
064357 PUMP PLATE FOR HATZ H50 ON HDX760 by Allen Engineering
$1,150.80
11
064407 WELDMENT, REAR LH HATZ H50 HDX760 by Allen Engineering
$165.60
12
064413 WELDMENT, ENGINE MNT REAR RH HDX760 by Allen Engineering
$178.80
13
064416 WELDMENT, ENGINE MOUNT REAR LH HATZ by Allen Engineering
$171.60
17
064539 COVER, OUTER FOR ENGINE ELECTRICAL by Allen Engineering
$54.00
20
064873 TURBO WRAP BLANKET FOR HATZ ENGINE by Allen Engineering
$626.40
22
065124 Shroud, Rear Radiator For Hatz by Allen Enginnering
$128.86
23
065125 Shroud, Front Radiator Hatz Engine by Allen Enginnering
$113.17
24
065126 Bottom Cover Radiator Shroud Hdx760 by Allen Enginnering
$101.97
25
065127 TOP COVER RADIATOR SHROUD HDX760 by Allen Engineering
$150.00
26
065138 Pump, Hydraulic Piston Rexroth by Allen Enginnering
$15,687.00
27
065140 PUMP, AUX FOR HDX760 by Allen Engineering
$948.00
28
065243 Fstn, Shcs M10 X 1.5 X 30 Mm Long by Allen Enginnering
$4.95
30
065398 Auxiliary Drive For Hatz 550 Engine by Allen Enginnering
$1,758.06
32
065528 FTG, 45 DEG. F6802-16-16 by Allen Engineering
$61.20
