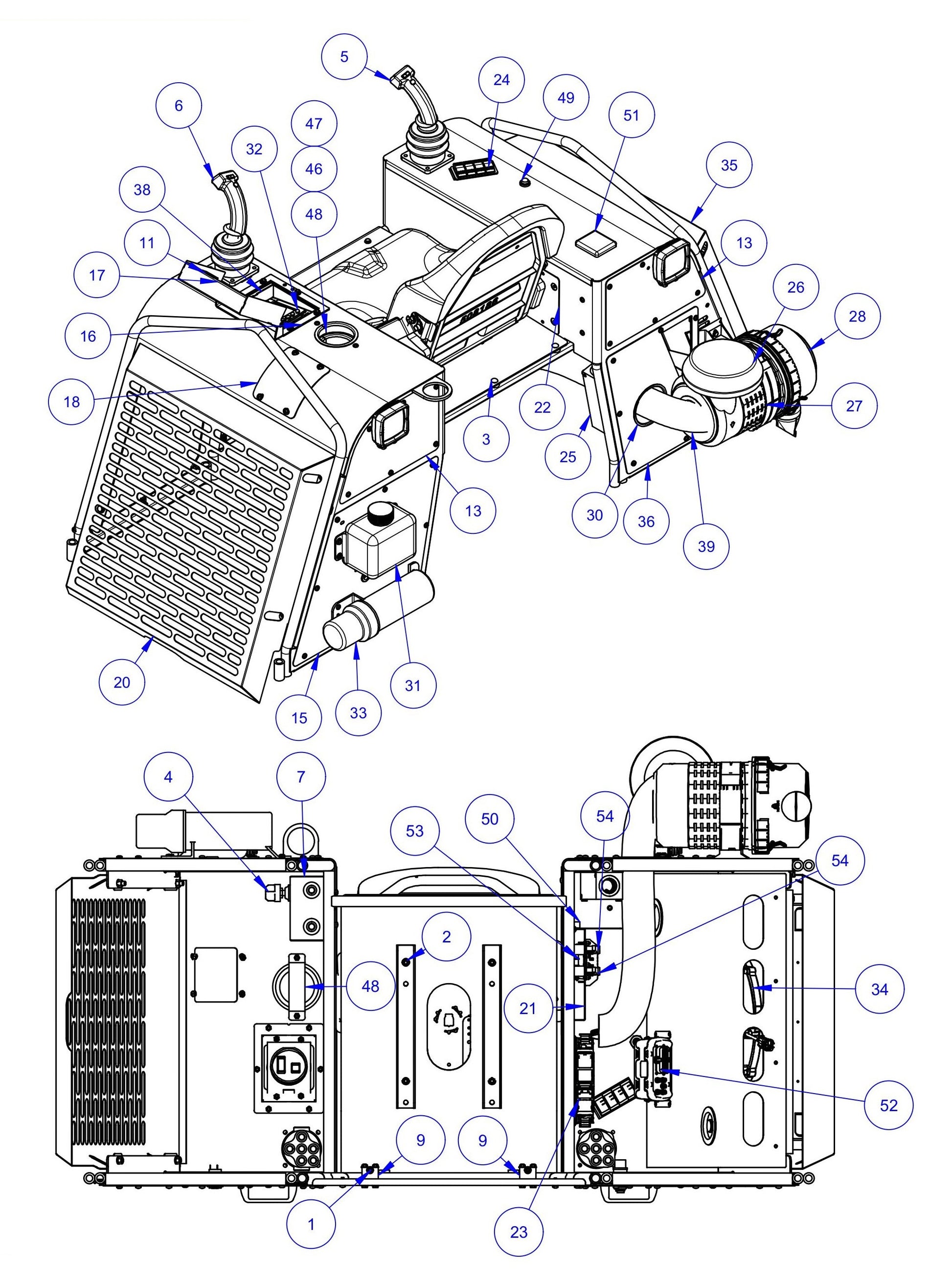

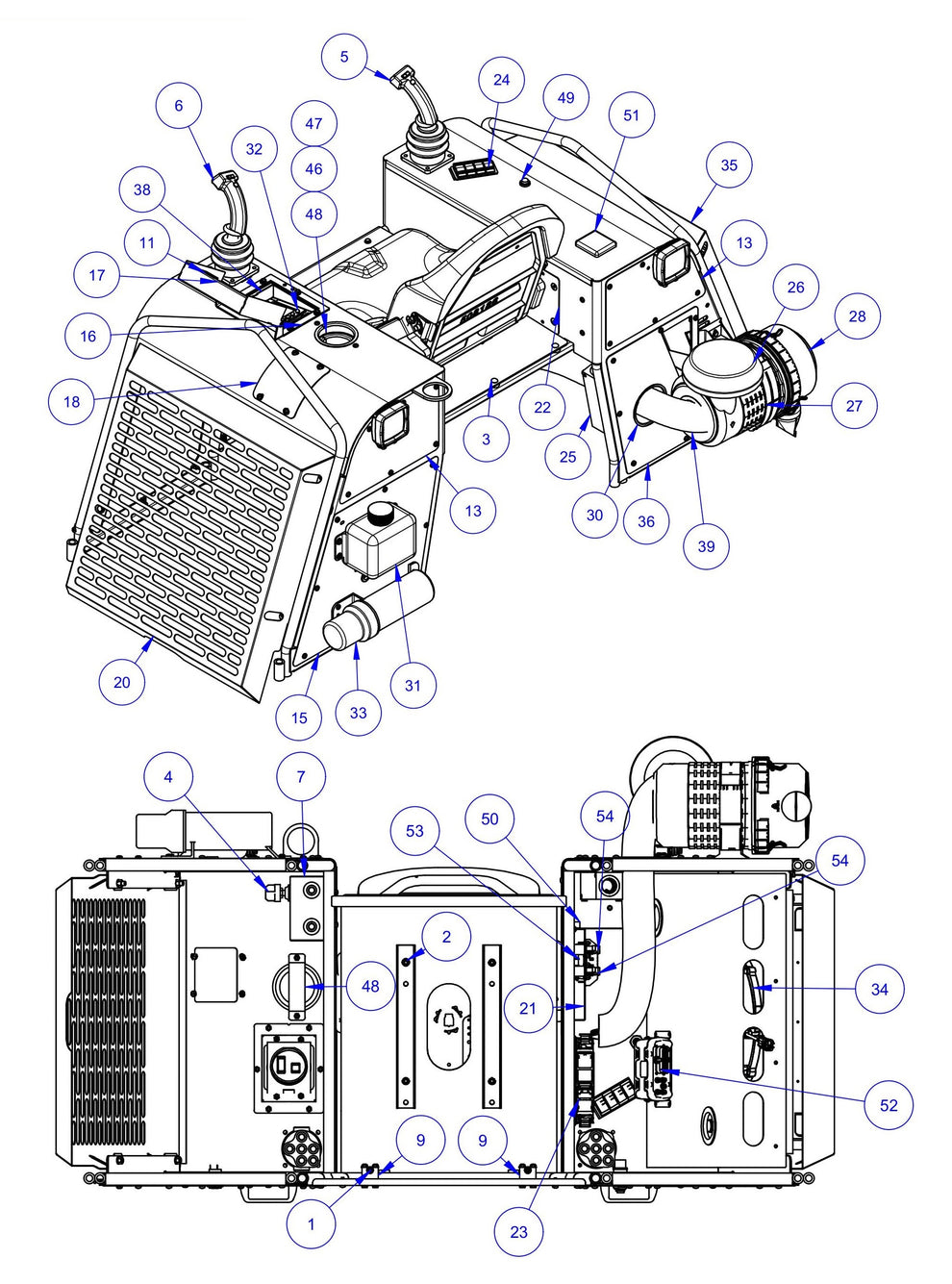

HDX760 Seat Frame Assembly-2 Parts

HDX760 Seat Frame Assembly-2 Parts

  • HDX760 Seat Frame Assembly-2 Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010007 Fstn, Hhcs 1/4-20 X 2 Grd8 by Allen Enginnering
$4.95
2
010100 Fstn, Nut Hex 5/16-18 Grd8 by Allen Enginnering
$4.95
3
047665 Bumper, Rubber F/ Seat Plate Stop by Allen Enginnering
$3.99
4
047886 CAP, FILLER BREATHER SPB-S-1-10-N04 by Allen Engineering
$50.40
5
048302 Joystick, Rh 780/Hdx600 181420096-S by Allen Enginnering
$2,065.08
6
048303 Joystick, Lh 780/Hdx600 181420097-S by Allen Enginnering
$1,848.83
12
064360 WELDT, HDX760/780 SEAT FRAME by Allen Engineering
$9,999.60
13
064496 COVER,REAR TOP RH & LH FOR SEAT by Allen Engineering
$49.20
16
064525 BRACKET, LH HINGE FOR ENGNE DISPLAY by Allen Engineering
$117.60
17
064526 WELDT, ENGINE DISPLAY COVER HDX760 by Allen Engineering
$162.00
18
064528 COVER, RADIATOR ACCES POINT FOR SEA by Allen Engineering
$40.80
22
065134 FRONT COVER PLATE, FOR GROUNDING by Allen Engineering
$38.40
24
065143 Kit, 4 Switch Block (Must Be Pre-Programmed) by Allen Enginnering
$797.80
26
065188 Air Bonnet F/Hatz H50(In Engine Kit by Allen Enginnering
$308.14
27
065189 Hatz Air Cleaner 4H50 Band by Allen Enginnering
$138.94
28
065190 Air Filter Assembly from Hatz by Allen Engineering
$673.20
29
065191 Key Switch Lofa F/ Hatz Engine by Allen Enginnering
$169.20
32
066227 MURPHY CONTROLLER PV380-R2 by Allen Engineering
$2,115.60
33
066255 Manual Tube, Canipak, Large by Allen Enginnering
$59.39
34
066911 COOLER AND SHROUND ASSEMBLY FOR HDX by Allen Engineering
$284.40
38
069227 WELDMENT, PANEL MURPHY DISPLAY HDX600X by Allen Engineering
$163.20
41
069835 Light, Led 1200 Lumen (1.3 Amp) by Allen Enginnering
$203.93
43
069850 RECEPTICAL, USB 12VDC by Allen Engineering
$92.40
45
069874 Seat, Rider (Seat Only) by Allen Enginnering
$734.55
49
076952 LIGHT, LED INDICATOR RED by Allen Engineering
$105.60
