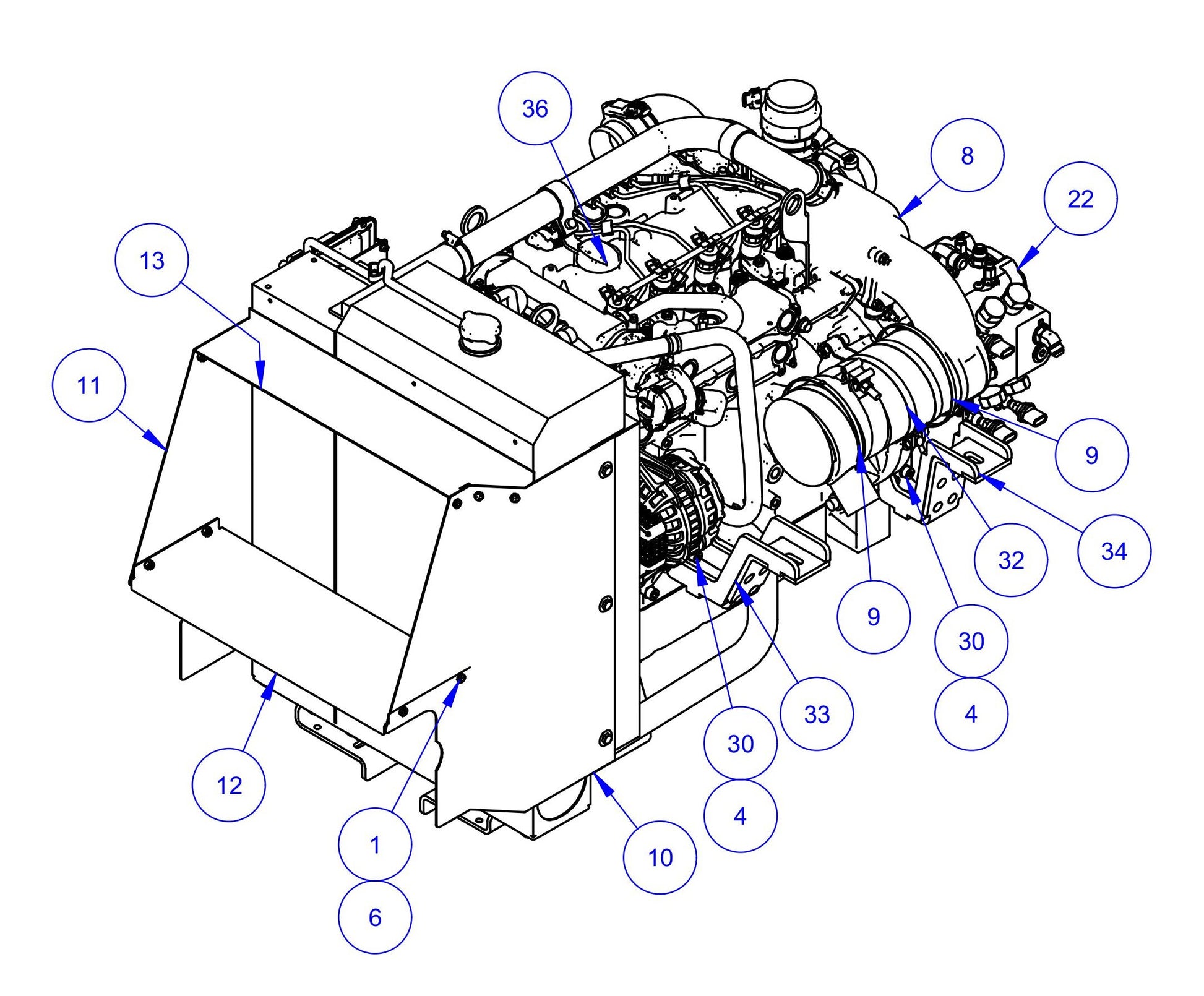

HDX780 Engine Assembly-2 Parts

HDX780 Engine Assembly-2 Parts

  • HDX780 Engine Assembly-2 Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010001 Fstn, Hhcs 1/4-20 X 1/2 Gr8 by Allen Enginnering
$4.95
2
010095 Fstn, Lw 5/8 Grd8 by Allen Enginnering
$4.95
4
021072 Fstn, Lw 10Mm by Allen Enginnering
$4.95
5
029311 Fstn, Hhcs 5/8-11 X 1 3/4 Gr 8 by Allen Enginnering
$5.99
6
029671 Fstn, Nut Hex 1/4-20 Nyloc by Allen Enginnering
$4.95
7
064357 PUMP PLATE FOR HATZ H50 ON HDX760 by Allen Engineering
$1,150.80
8
064873 TURBO WRAP BLANKET FOR HATZ ENGINE by Allen Engineering
$626.40
10
065124 Shroud, Rear Radiator For Hatz by Allen Enginnering
$128.86
11
065125 Shroud, Front Radiator Hatz Engine by Allen Enginnering
$113.17
12
065126 Bottom Cover Radiator Shroud Hdx760 by Allen Enginnering
$101.97
13
065127 TOP COVER RADIATOR SHROUD HDX760 by Allen Engineering
$150.00
14
065138 Pump, Hydraulic Piston Rexroth by Allen Enginnering
$15,687.00
15
045921 Ftg, F6400-8-8-O Straight Thrd Connector by Allen Enginnering
$12.45
16
045922 Ftg, F6400-4-6-O Str Jic-Sae by Allen Enginnering
$17.16
17
045928 Ftg, F6400-4-4-O Str Jic-Sae by Allen Enginnering
$16.20
20
046361 Ftg, F6602-4-4-4-0 Swivel Run Tee by Allen Enginnering
$39.60
23
065528 FTG, 45 DEG. F6802-16-16 by Allen Engineering
$61.20
26
077889 SENSOR, PRESSURE ROTOR MOTOR by Allen Engineering
$192.00
27
077895 SENSOR, CHARGE PRESSURE by Allen Engineering
$198.00
29
065140 PUMP, AUX FOR HDX760 by Allen Engineering
$948.00
30
065243 Fstn, Shcs M10 X 1.5 X 30 Mm Long by Allen Enginnering
$4.95
31
065398 Auxiliary Drive For Hatz 550 Engine by Allen Enginnering
$1,758.06
32
066148 Doc Wrap For Hatz Engine, 4H50 by Allen Enginnering
$952.43
33
069419 Weldt, Engine Mount,V2 Rear Lh Hatz H50 Hdx760 by Allen Enginnering
$320.46
34
069420 Weldt, Engine Mnt., V2 Rear Rh Hdx760 Hatz H50 by Allen Enginnering
$318.22
35
069424 Weld, Engine Mount, Front Rh Hdx760 by Allen Enginnering
$330.55
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
