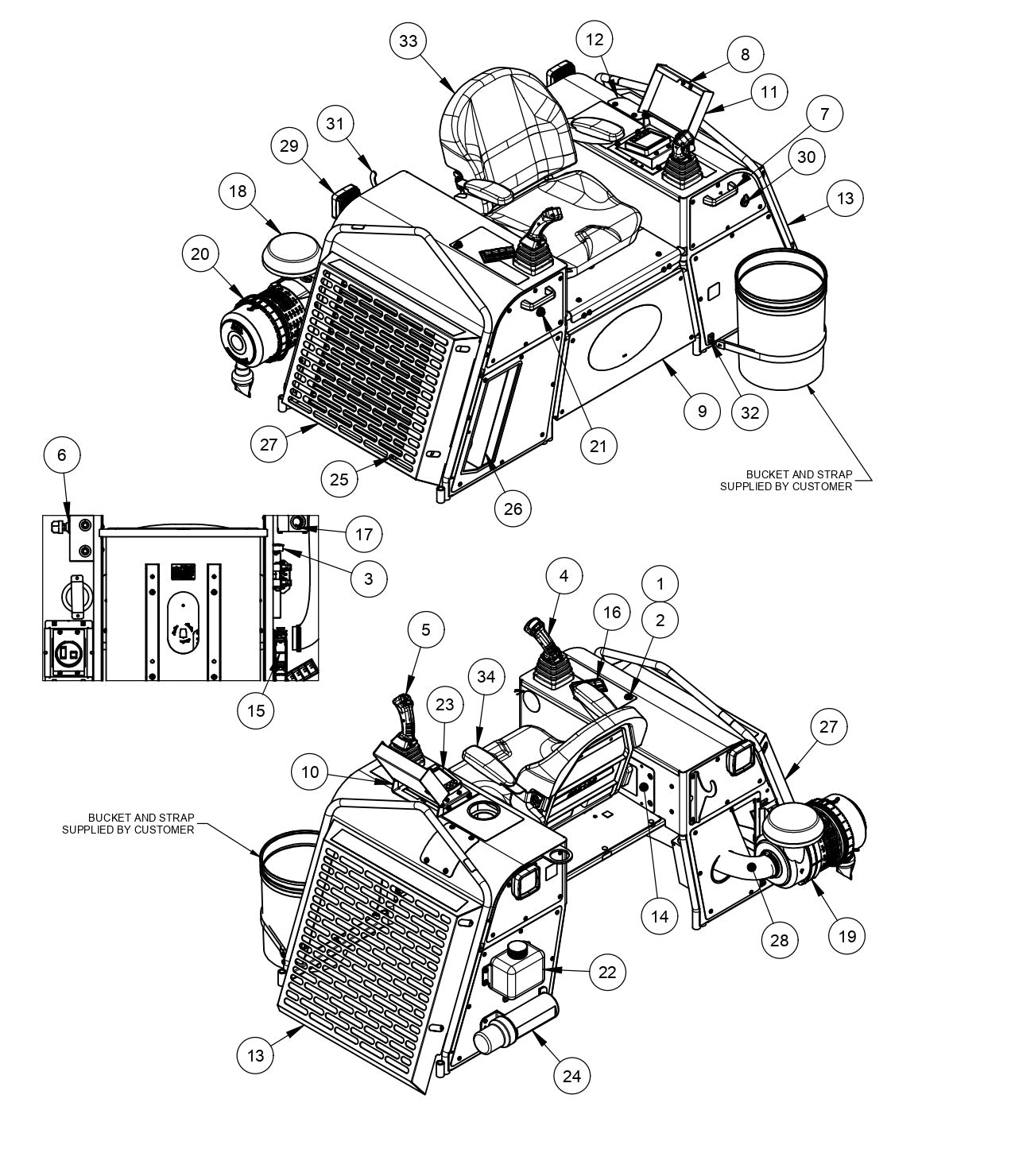

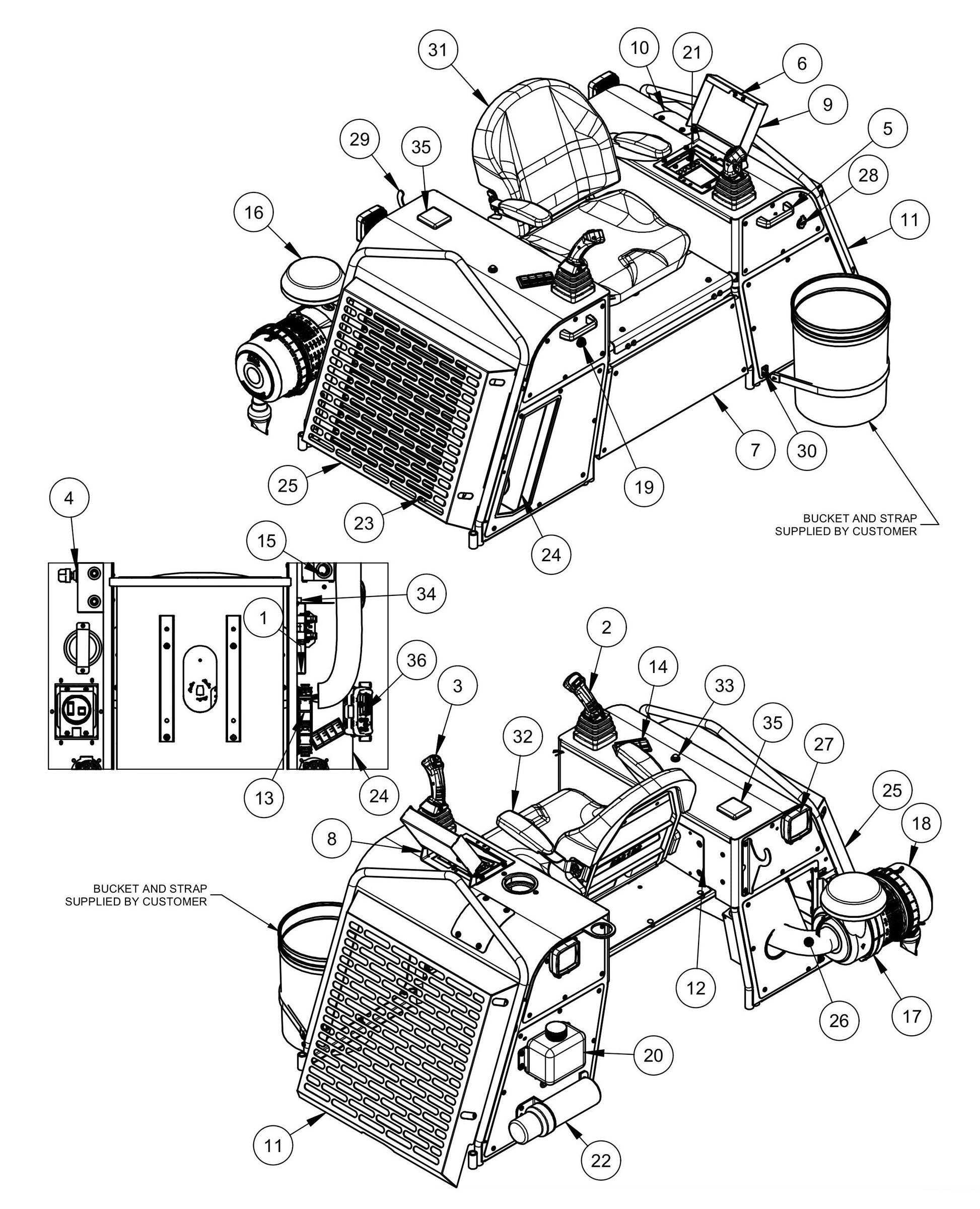

HDX780 Seat Frame Assembly Parts by Allen Engineering

HDX780 Seat Frame Assembly Parts by Allen Engineering

  • HDX780 Seat Frame Assembly Parts by Allen Engineering
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
018264 INSULATOR RUBBER SAFETY SWITCH by Allen Engineering
$3.99
2
048302 Joystick, Rh 780/Hdx600 181420096-S by Allen Enginnering
$2,065.08
3
048303 Joystick, Lh 780/Hdx600 181420097-S by Allen Enginnering
$1,848.83
-
046556 Joystick, Lh Handle Only 550 by Allen Enginnering
$1,512.68
5
048678 Handle, Load Rated Nylon by Allen Enginnering
$37.35
8
064525 BRACKET, LH HINGE FOR ENGNE DISPLAY by Allen Engineering
$117.60
9
064526 WELDT, ENGINE DISPLAY COVER HDX760 by Allen Engineering
$162.00
10
064528 COVER, RADIATOR ACCES POINT FOR SEA by Allen Engineering
$40.80
12
065134 FRONT COVER PLATE, FOR GROUNDING by Allen Engineering
$38.40
14
065143 Kit, 4 Switch Block (Must Be Pre-Programmed) by Allen Enginnering
$797.80
16
065188 Air Bonnet F/Hatz H50(In Engine Kit by Allen Enginnering
$308.14
17
065189 Hatz Air Cleaner 4H50 Band by Allen Enginnering
$138.94
18
065190 Air Filter Assembly from Hatz by Allen Engineering
$673.20
19
065191 Key Switch Lofa F/ Hatz Engine by Allen Enginnering
$169.20
21
066227 MURPHY CONTROLLER PV380-R2 by Allen Engineering
$2,115.60
22
066255 Manual Tube, Canipak, Large by Allen Enginnering
$59.39
23
066911 COOLER AND SHROUND ASSEMBLY FOR HDX by Allen Engineering
$284.40
27
069835 Light, Led 1200 Lumen (1.3 Amp) by Allen Enginnering
$203.93
28
069850 RECEPTICAL, USB 12VDC by Allen Engineering
$92.40
31
069874 Seat, Rider (Seat Only) by Allen Enginnering
$734.55
32
069875 Arm Rest, Rider Seat (Rh/Lh Set) by Allen Enginnering
$217.38
33
076952 LIGHT, LED INDICATOR RED by Allen Engineering
$105.60
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
