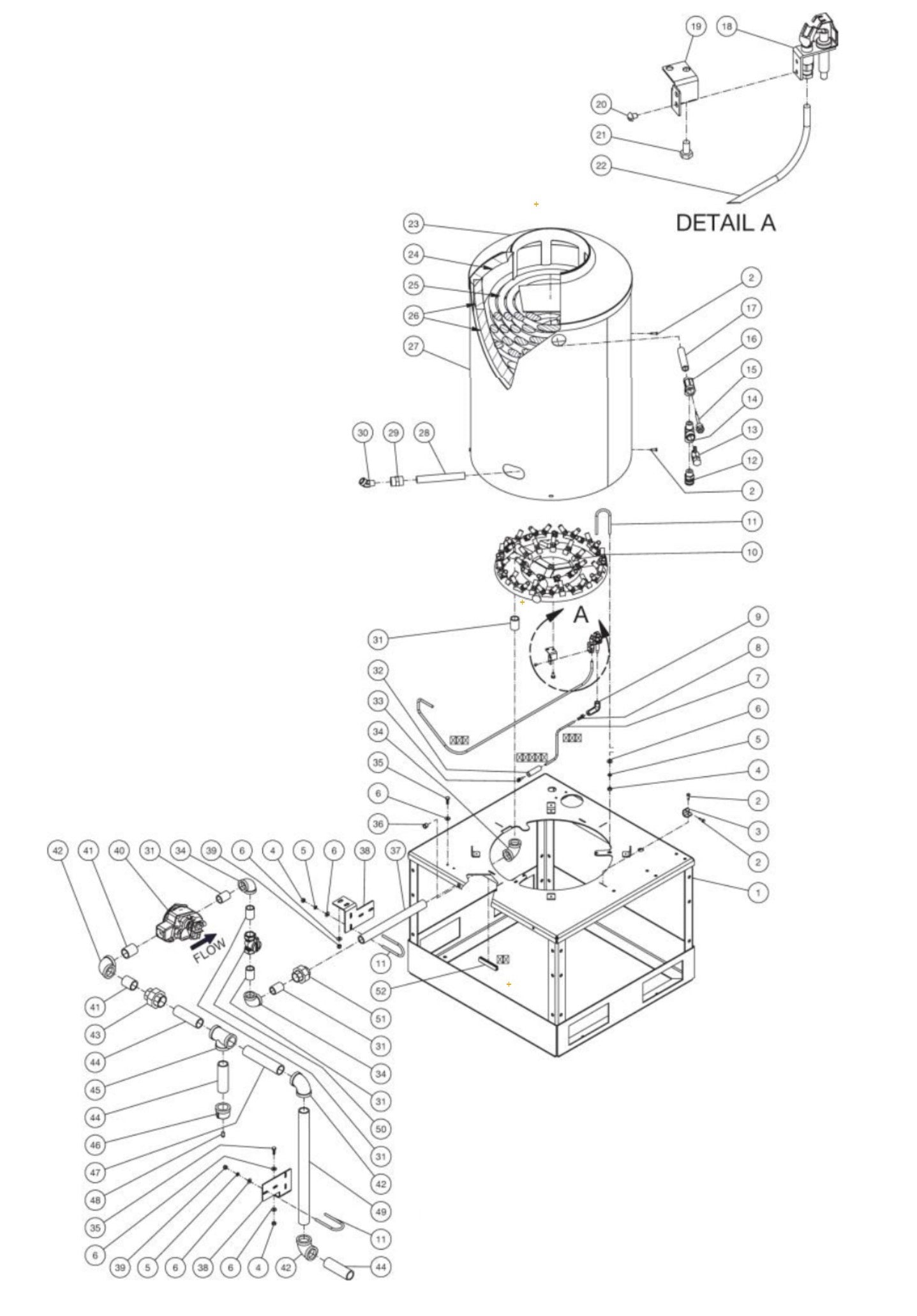

HEG-1805/2004/3004/3005 (sn:15149803-99999999), (sn:15015062-15021777), (sn:15021778-15149802) Burner Assembly Parts By MiTM

HEG-1805/2004/3004/3005 (sn:15149803-99999999), (sn:15015062-15021777), (sn:15021778-15149802) Burner Assembly Parts By MiTM

  • HEG-1805/2004/3004/3005 (sn:15149803-99999999), (sn:15015062-15021777), (sn:15021778-15149802) Burner Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0174A18 COIL BASE BY MITM
$425.12
2
27-3064 Screw BY MITM
$0.68
3
20-0651A18 CLIP/COIL RETAINER BY MITM
$3.72
4
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
5
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
6
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
7
44-0117 IGNITOR WIRE *(FIVE FEET REQUIRED) BY MITM
$3.72
8
44-0119 SPARK PLUG TERMINAL BY MITM
$2.03
9
44-0118 SPARK PLUG BOOT BY MITM
$7.28
10
4-0011 NATURAL GAS ASPERATING BURNER RING BY MITM
$623.30
11
31-2008 Bolt BY MITM
$2.03
12
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
13
32-0734 ADJUSTABLE THERMOSTAT BY MITM
$50.90
14
24-0055 Tee 1/2" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240055
$24.90
15
44-0115 PLOT BURNER IGNITOR BY MITM
$199.50
16
27-2096 SCREW BY MITM
$0.68
17
27-0014 BOLT BY MITM
$0.68
18
54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM
$3.05
19
20-0621A18 DOME BY MITM
$153.03
20
850-0315 INSULATION DOME BY MITM
$43.20
21
66-0016 HEAT EXCHANGER COIL BY MITM
$4,256.48
22
850-0313 INSULATION BLANKET BY MITM
$204.44
23
20-0634A18 OUTER WRAP BY MITM
$476.69
24
24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254
$24.17
25
24-0042 Elbow 3/8M X 3/8F 45 Deg-Steel for Mi-T-M CA-3004-0MHB by MiTM 240042
$19.05
26
33-0219 HEAT SHRINK *(ONE FOOT REQUIRED) BY MITM
$18.77
27
32-0221 Terminal 14 Ga 1/4F Spade Ins for AC1-HR45-05M Air Compressor by Mi-T-M 320221
$2.85
28
20-0667A18 SUPPORT BRACKET BY MITM
$12.83
29
22-0144 NATURAL GAS REGULATING VALVE BY MITM
$544.94
30
24-0012 Pipe Nipple BY MITM
$6.48
31
24-0096 ELBOW BY MITM
$9.53
32
24-0259 UNION BY MITM
$37.74
33
24-0260 Pipe Nipple BY MITM
$8.45
34
24-0261 TEE BY MITM
$15.12
35
24-0372 CAP BY MITM
$14.99
36
24-0097 PIPE NIPPLE BY MITM
$13.04
37
24-0373 PLUG BY MITM
$1.16
38
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
