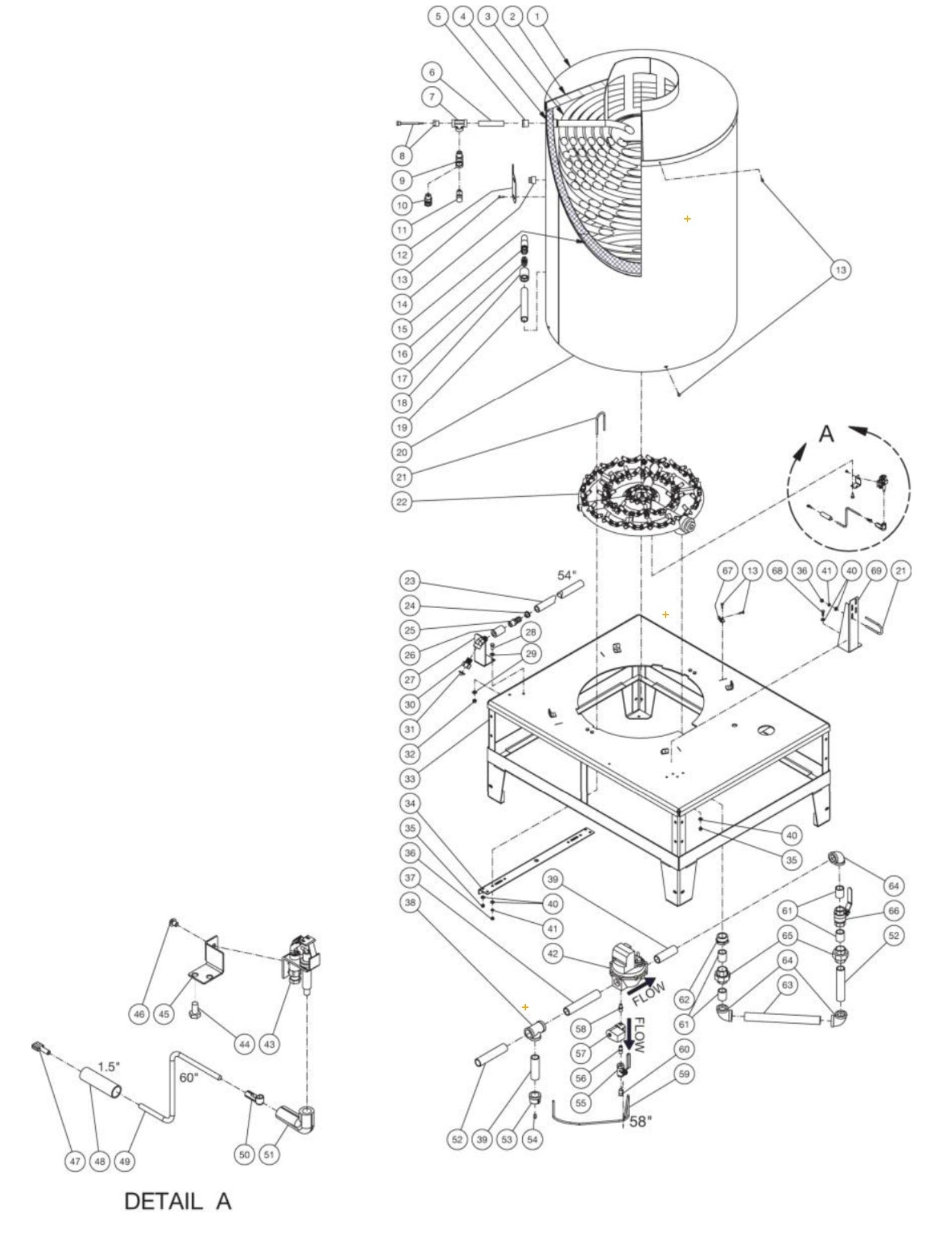

HEG-2010-1E3G/1E4G/1E5G/1E9G, HEG-3008-1E3G/1E4G/1E5G/1E9G Coil Frame Assembly Parts By MiTM

HEG-2010-1E3G/1E4G/1E5G/1E9G, HEG-3008-1E3G/1E4G/1E5G/1E9G Coil Frame Assembly Parts By MiTM

  • HEG-2010-1E3G/1E4G/1E5G/1E9G, HEG-3008-1E3G/1E4G/1E5G/1E9G Coil Frame Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
20-0928A18 Exhaust Dome Assy BY MITM
$417.42
2
850-0364 INS DOME HALF BY MITM
$18.90
3
66-0026 COIL ASSY-10GPM-NG BY MITM
$6,986.19
4
850-0363 INSULATION BLANKET BY MITM
$57.38
5
24-0308 REDUCER FITTING BY MITM
$17.55
6
24-0055 Tee 1/2" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240055
$24.90
7
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
8
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
9
20-1473A18 COVER PLATE BY MITM
$23.30
10
27-3064 Screw BY MITM
$0.68
11
24-0331 PLUG BY MITM
$2.03
12
850-0362 INSULATION BLANKET BY MITM
$92.48
13
15-0263 Hose, High Pressure BY MITM
$39.56
14
24-0054 Connector for MiTM Pressure Washers 240054
$18.87
15
24-0300 REDUCER BY MITM
$16.88
16
24-0297 PIPE NIPPLE BY MITM
$45.98
17
20-1407A18 COIL WRAP BY MITM
$281.75
18
21-0316 HEG 2010 STAINLESS STEEL COIL WRAP (HX-0194) BY MITM
$976.94
19
31-2008 Bolt BY MITM
$2.03
20
4-0024 Burner Ring -NG BY MITM
$2,628.05
21
4-0026 Burner Ring- LP (HX -0189) BY MITM
$1,439.78
22
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
23
23-0036 Barb 1/2Mp X 3/4 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230036
$14.53
24
24-0237 FULL COUPLER BY MITM
$7.16
25
20-0428A18 Bracket BY MITM
$28.35
26
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
27
5-0367A18 HEG 2010 COIL FRAME ASSY BY MITM
$1,115.45
28
20-0923A18 BURNER SUPPORT BY MITM
$29.70
29
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
30
24-0307 PIPE NIPPLE BY MITM
$15.66
31
24-0261 TEE BY MITM
$15.12
32
24-0260 Pipe Nipple BY MITM
$8.45
33
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
34
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
35
22-0407 Gas Regulator -NG BY MITM
$1,830.68
36
22-0417 Gas Regulator -LP (HX-0189) BY MITM
$1,263.33
37
44-0115 PLOT BURNER IGNITOR BY MITM
$199.50
38
44-0116 LP PILOT ORIFICE (HX-180) (REPLACES ORIFICE PROVIDED WITH 44-0115) BY MITM
$14.58
39
27-0014 BOLT BY MITM
$0.68
40
27-2096 SCREW BY MITM
$0.68
41
32-0221 Terminal 14 Ga 1/4F Spade Ins for AC1-HR45-05M Air Compressor by Mi-T-M 320221
$2.85
42
33-0219 HEAT SHRINK *(ONE FOOT REQUIRED) BY MITM
$18.77
43
44-0117 IGNITOR WIRE *(FIVE FEET REQUIRED) BY MITM
$3.72
44
44-0119 SPARK PLUG TERMINAL BY MITM
$2.03
45
44-0118 SPARK PLUG BOOT BY MITM
$7.28
46
24-0097 PIPE NIPPLE BY MITM
$13.04
47
24-0372 CAP BY MITM
$14.99
48
24-0373 PLUG BY MITM
$1.16
49
22-0002 BALL VALVE BY MITM
$34.43
50
23-0103 Nipple 1/4M X 1/4M Hex-Brass for AC1-PR06-20M Air Compressor by Mi-T-M 230103
$11.96
51
22-0409 PILOT VALVE BY MITM
$321.84
52
23-0462 REDUCER BY MITM
Call for Price call for price call for price
53
54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM
$3.05
54
23-0417 Elbow BY MITM
Call for Price call for price call for price
55
24-0012 Pipe Nipple BY MITM
$6.48
56
24-0299 Reducer BY MITM
$36.32
57
24-0289 Pipe Nipple BY MITM
$18.23
58
24-0096 ELBOW BY MITM
$9.53
59
24-0259 UNION BY MITM
$37.74
60
20-0651A18 CLIP/COIL RETAINER BY MITM
$3.72
61
20-0948A18 Bracket BY MITM
$31.32
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
