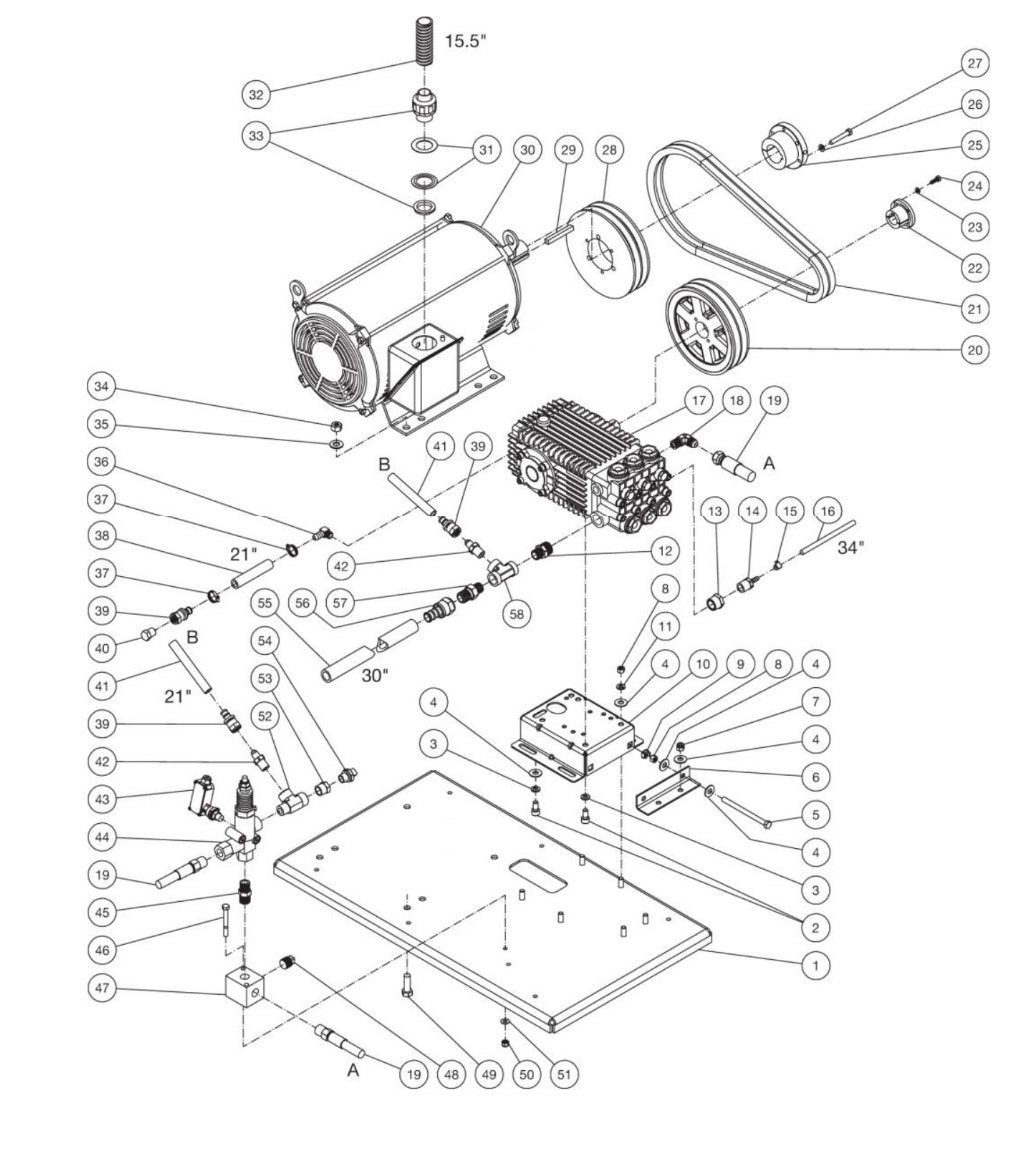

HEG-2010-1E3G/1E4G/1E5G/1E9G, HEG-3008-1E3G/1E4G/1E5G/1E9G Isolation Plate Assembly Parts By MiTM

HEG-2010-1E3G/1E4G/1E5G/1E9G, HEG-3008-1E3G/1E4G/1E5G/1E9G Isolation Plate Assembly Parts By MiTM

  • HEG-2010-1E3G/1E4G/1E5G/1E9G, HEG-3008-1E3G/1E4G/1E5G/1E9G Isolation Plate Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0266A18 BASEPLATE BY MITM
$288.57
2
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
3
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
4
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
5
5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18
Call for Price call for price call for price
6
23-0082 Nipple 3/4M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230082
$13.88
7
23-0023 Bushing 3/4M X 1/2F Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230023
$12.75
8
23-0376 Barb BY MITM
$6.56
9
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
10
15-0079 Hose 1/4"Id Vinyl Reinf.-Clear for AC1-HH04-05M Air Compressor by Mi-T-M 150079
$3.99
11
30279 Pump for MiTM Pressure Washers
$3,193.74
12
15-0263 Hose, High Pressure BY MITM
$39.56
13
10-0117 SHEAVE (2010) BY MITM
$59.75
14
10-0037 Sheave 2Bk100H for AC1-PE03-08M Air Compressor by Mi-T-M 100037
$99.22
15
110068 Belt for MiTM Pressure Washers
$63.50
16
110053 Belt for MiTM Pressure Washers
Call for Price call for price call for price
17
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
18
9-0004 BUSHING BY MITM
$91.80
19
27-0881 Screw BY MITM
$0.68
20
10-0138 SHEAVE BY MITM
$76.08
21
43-0165 KEY BY MITM
$12.90
22
2-0153 Motor (0E3G/4G) BY MITM
$2,638.85
23
2-0152 Motor (0E9G) BY MITM
$3,159.27
24
2-0154 Motor (0E5G) BY MITM
$2,774.52
25
32-1341 Reducing Washer for MiTM Pressure Washers 321341
$15.27
26
32-0908 Conduit Flex *(Six Feet Required) for MiTM Pressure Washers by MiTM 320908
$25.92
27
32-0996 Straight Conduit Fitting for MiTM Pressure Washers by MiTM 320996
$19.40
28
30-0163 Locknut for MiTM Pressure Washers 300163
$7.65
29
28-0006 Washer for MiTM Pressure Washers by MiTM 280006
$4.49
30
150305 Hose *(Two Feet Required) for MiTM Pressure Washers
$11.55
31
8-0032 Unloader for MiTM Pressure Washers 80032
$553.40
32
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
33
27-0074 Bolt for MiTM Pressure Washers 270074
$5.93
34
510034 Manifold Block for MiTM Pressure Washers
$137.73
35
27-0218 Bolt for MiTM Pressure Washers 270218
$7.65
36
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
37
23-0358 Hose Barb for AC1-PE15-08M Air Compressor by Mi-T-M 230358
$22.20
38
23-0359 Nipple 1/2M X 3/4M 45Deg Flare for AC1-PE15-08M Air Compressor by Mi-T-M 230359
$21.36
39
24-0055 Tee 1/2" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240055
$24.90
