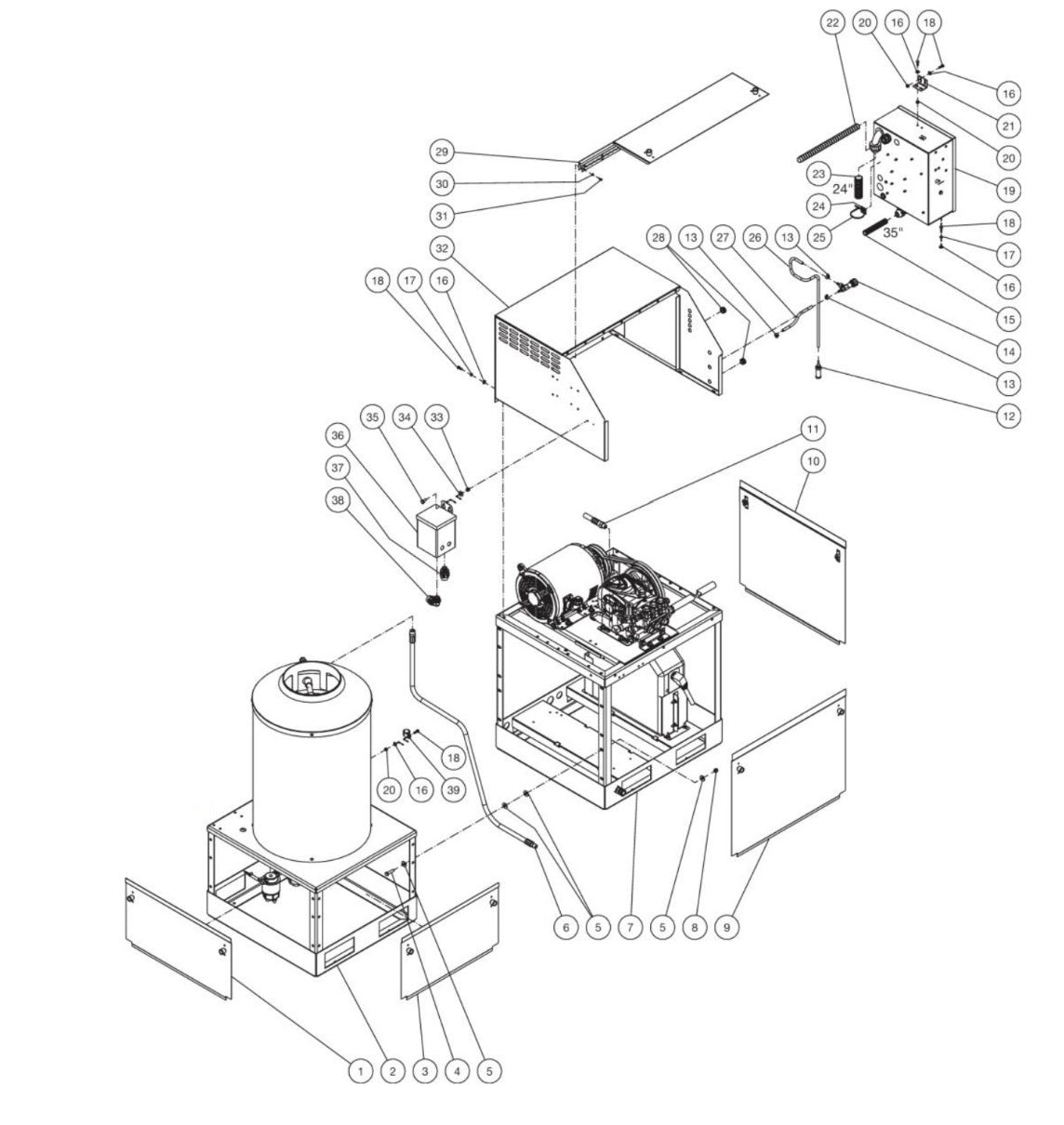

HEO Series Frame Assembly Parts By MiTM

HEO Series Frame Assembly Parts By MiTM

  • HEO Series Frame Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
850-0312 PANEL BY MITM 850-0312 PANEL BY MITM
$91.80
3
850-0311 PANEL BY MITM 850-0311 PANEL BY MITM
$87.75
4
27-0119 Bolt for MiTM Pressure Washers 270119 27-0119 Bolt for MiTM Pressure Washers 270119
$5.93
5
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
6
15-0186 Hose 3/8X57" 4000Psi R2 Black for AC1-PE15-08M Air Compressor by Mi-T-M 150186 15-0186 Hose 3/8X57" 4000Psi R2 Black for AC1-PE15-08M Air Compressor by Mi-T-M 150186
$45.88
8
30-0159 LOCKNUT BY MITM 30-0159 LOCKNUT BY MITM
$0.68
9
850-0309 PANEL BY MITM 850-0309 PANEL BY MITM
$105.98
10
850-0310 PANEL BY MITM 850-0310 PANEL BY MITM
$105.98
11
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194 15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
12
19-0056 Strainer-Detergent W/Ck Valve for AC1-PE03-20M Air Compressor by Mi-T-M 190056 19-0056 Strainer-Detergent W/Ck Valve for AC1-PE03-20M Air Compressor by Mi-T-M 190056
$19.80
13
42-0004 HOSE CLAMP BY MITM 42-0004 HOSE CLAMP BY MITM
$5.82
14
22-0226 Valve/Detergent for AC1-PE03-20M Air Compressor by Mi-T-M 220226 22-0226 Valve/Detergent for AC1-PE03-20M Air Compressor by Mi-T-M 220226
$63.26
15
32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253 32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253
$5.99
16
28-0002 Washer for MiTM Pressure Washers 280002 28-0002 Washer for MiTM Pressure Washers 280002
$5.93
17
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006 29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
18
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015 27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
20
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155 30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
21
20-0626A18 BRACKET BY MITM 20-0626A18 BRACKET BY MITM
$5.40
22
32-0486 Conduit 3/4" Black for AC1-PH65-20M Air Compressor by Mi-T-M 320486 32-0486 Conduit 3/4" Black for AC1-PH65-20M Air Compressor by Mi-T-M 320486
$12.21
22
32-0486 Conduit 3/4" Black for AC1-PR06-08M Air Compressor by Mi-T-M 320486 32-0486 Conduit 3/4" Black for AC1-PR06-08M Air Compressor by Mi-T-M 320486
$12.21
23
32-0908 Conduit Flex *(Six Feet Required) for MiTM Pressure Washers by MiTM 320908 32-0908 Conduit Flex *(Six Feet Required) for MiTM Pressure Washers by MiTM 320908
$25.92
24
32-0621 MOUNTING BASE BY MITM 32-0621 MOUNTING BASE BY MITM
$4.80
25
33-0022 CABLE TIE BY MITM 33-0022 CABLE TIE BY MITM
$1.47
26
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE15-05M Air Compressor by Mi-T-M 150021 15-0021 Hose 1/4 Id Clear Chemi for AC1-HE15-05M Air Compressor by Mi-T-M 150021
$1.99
27
15-0079 Hose 1/4"Id Vinyl Reinf.-Clear for AC1-HH04-05M Air Compressor by Mi-T-M 150079 15-0079 Hose 1/4"Id Vinyl Reinf.-Clear for AC1-HH04-05M Air Compressor by Mi-T-M 150079
$3.99
28
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
29
850-0308 CABINET DOOR BY MITM 850-0308 CABINET DOOR BY MITM
$133.65
30
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009 28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
31
27-8835 Screw for MiTM Pressure Washers by MiTM 278835 27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
32
20-0632A18 CABINET BY MITM 20-0632A18 CABINET BY MITM
$209.25
33
30-0157 Locknut for MiTM Pressure Washers 300157 30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
34
28-0022 WASHER BY MITM 28-0022 WASHER BY MITM
$5.18
35
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066 27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
36
32-1063 TRANSFOMER (2004; 3004; 3005-0E4G) BY MITM 32-1063 TRANSFOMER (2004; 3004; 3005-0E4G) BY MITM
$745.14
37
32-0255 CONDUIT FITTING BY MITM 32-0255 CONDUIT FITTING BY MITM
$2.97
38
32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254 32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254
$9.43
39
33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291 33-0291 Tube Clip for AC1-PE03-20M Air Compressor by Mi-T-M 330291
$4.85
