HEO Series Motor Base Assembly Parts By MiTM

HEO Series Motor Base Assembly Parts By MiTM

  • HEO Series Motor Base Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0173A18 Motor Pump Base Assembly BY MITM
$655.43
2
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
3
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
4
23-0391 Elbow 3/4Fx3/4F 90 Cast Brass for AC1-PE02-20M Air Compressor by Mi-T-M 230391
$32.40
5
23-0023 Bushing 3/4M X 1/2F Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230023
$12.75
6
23-0036 Barb 1/2Mp X 3/4 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230036
$14.53
7
420003 Hose Clamp for MiTM Pressure Washers
$7.43
8
15-0033 Hose 3/4 250 Psi for AC1-HH04-05M Air Compressor by Mi-T-M 150033
$9.96
9
28-0051 Washer for MiTM Pressure Washers 280051
$20.40
10
32-0907 Conduit Elbow for MiTM Pressure Washers by MiTM 320907
$28.83
11
32-0310 JUNCTION BOX BY MITM
$7.43
12
33-0017 BLANK COVER BY MITM
$5.21
13
20-0626A18 BRACKET BY MITM
$5.40
14
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
15
5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18
Call for Price call for price call for price
16
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
17
23-0074 Elbow 3/8M X 3/8 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230074
$21.00
18
10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007
$124.92
19
11-0005 Belt (3004) for MiTM Pressure Washers 110005
$61.16
20
11-0008 Cog Belt Ax40 for AC1-HR45-05M Air Compressor by Mi-T-M 110008
$27.27
21
11-0057 Cog Belt Ax39 for MiTM Pressure Washers 110057
$81.81
22
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
23
9-0008 Bushing H X 1 3/8 Motor for AC1-PH65-20M Air Compressor by Mi-T-M 90008
$21.01
24
150305 Hose *(Two Feet Required) for MiTM Pressure Washers
$11.55
25
23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230120
$5.84
26
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014
$9.18
27
10-0104 Sheave for MiTM Pressure Washers 100104
$161.63
28
10-0036 Sheave 2Ak56H for AC1-PH65-20M Air Compressor by Mi-T-M 100036
$94.67
29
10-0041 Sheave 2Ak54H for MI-T-M 3004-0ME1 CW Series by MiTM 100041
$64.45
30
43-0174 Key for MiTM Pressure Washers 430174
$78.33
31
43-0166 Key (2004) for MiTM Pressure Washers 430166
$35.67
32
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
33
2-0210 Motor (3004 Three Phase, Cx-0077) for MiTM Pressure Washers 20210
$2,885.07
34
2-0207 Motor (2004 Single Phase) for MiTM Pressure Washers 20207
$2,119.05
35
2-0208 MOTOR 6HP 230V 3PH ODP (1805/2004-0E3G/4G) BY MITM
$1,193.07
36
2-0215 Motor (Cx-0119) for MiTM Pressure Washers 20215
$1,959.66
37
2-0216 Motor (Cx-0120) for MiTM Pressure Washers 20216
$2,057.70
38
2-0217 MOTOR 8HP 230V 1PH ODP (3004-0E2G) BY MITM
$1,844.99
39
2-0212 Motor (3005 Three Phase, Cx-0121) for MiTM Pressure Washers 20212
$3,249.21
40
2-0228 MOTOR 8HP 575V 3PH ODP (3004-0E5G) BY MITM
$1,540.16
41
2-0219 MOTOR 8HP 200V 1PH ODP (3004-0E8G) BY MITM
$1,857.87
42
2-0220 MOTOR 8HP 200V 3PH ODP (3004-0E9G) BY MITM
$1,522.13
43
2-0221 MOTOR 10HP 230V 1PH ODP (3005-0E2G) BY MITM
$2,060.85
44
2-0229 MOTOR 10HP 575V 3PH ODP (3005-0E5G) BY MITM
$1,702.35
45
2-0223 MOTOR (3005-2E8G) BY MITM
$1,689.53
46
26-0314 Gasket-3/4 Npt Conduit Fitting for AC1-PH65-08M Air Compressor by Mi-T-M 260314
$4.85
47
32-0487 CONDUIT ELBOW BY MITM
$12.83
48
32-0488 Conduit Straight End 3/4" for AC1-PH65-08M Air Compressor by Mi-T-M 320488
$9.24
49
23-0127 Tee 1/4M X 1/4F X 1/4F Street for AC1-HE15-05M Air Compressor by Mi-T-M 230127
$16.37
50
22-0408 Thermal Relief Valve-1/4" 140F for AC1-PE03-20M Air Compressor by Mi-T-M 220408
Call for Price call for price call for price
51
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
52
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
53
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
54
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
55
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
56
20-0584A18 Tension Bracket for MiTM Pressure Washers 200584A18
$57.12
57
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

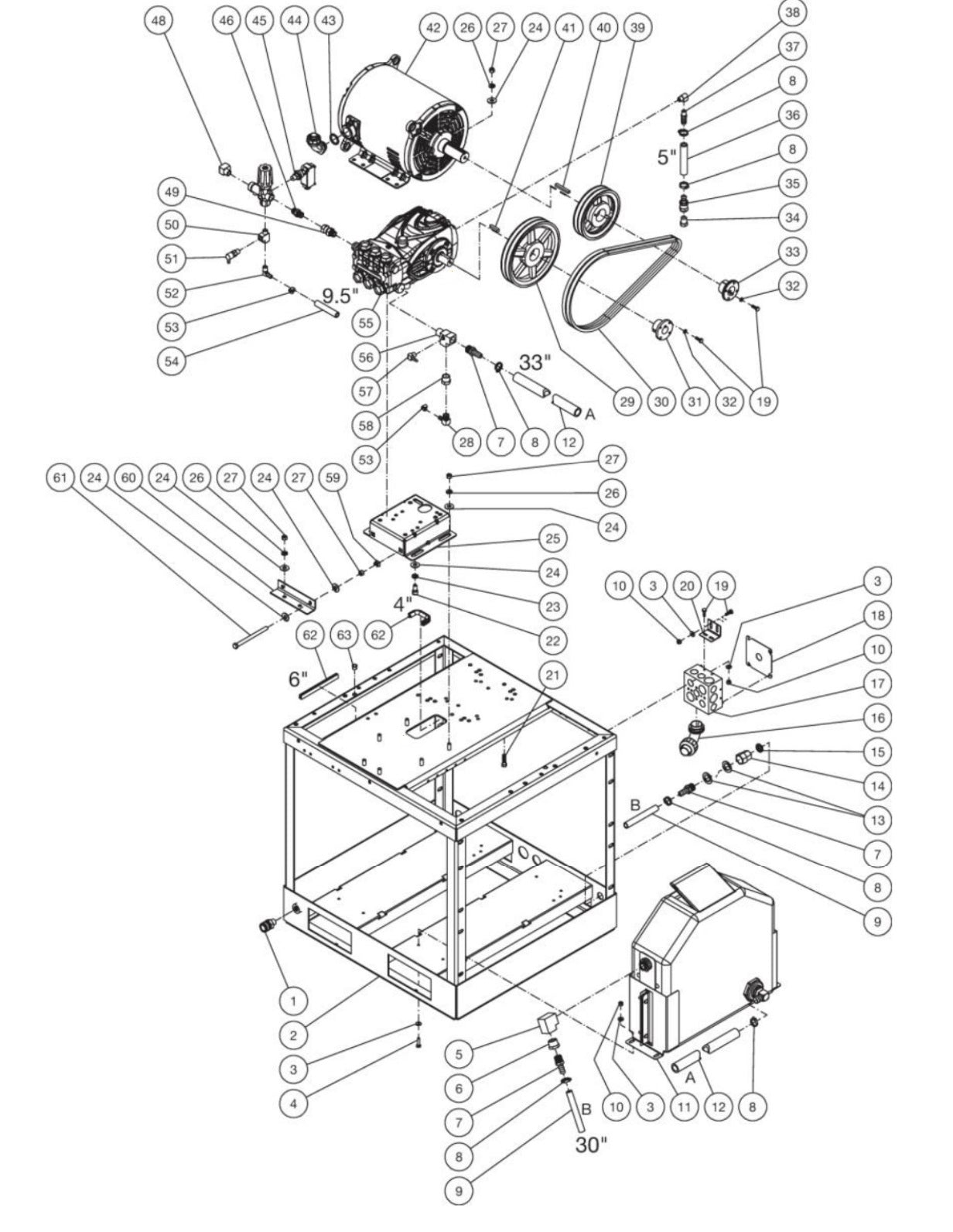

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
