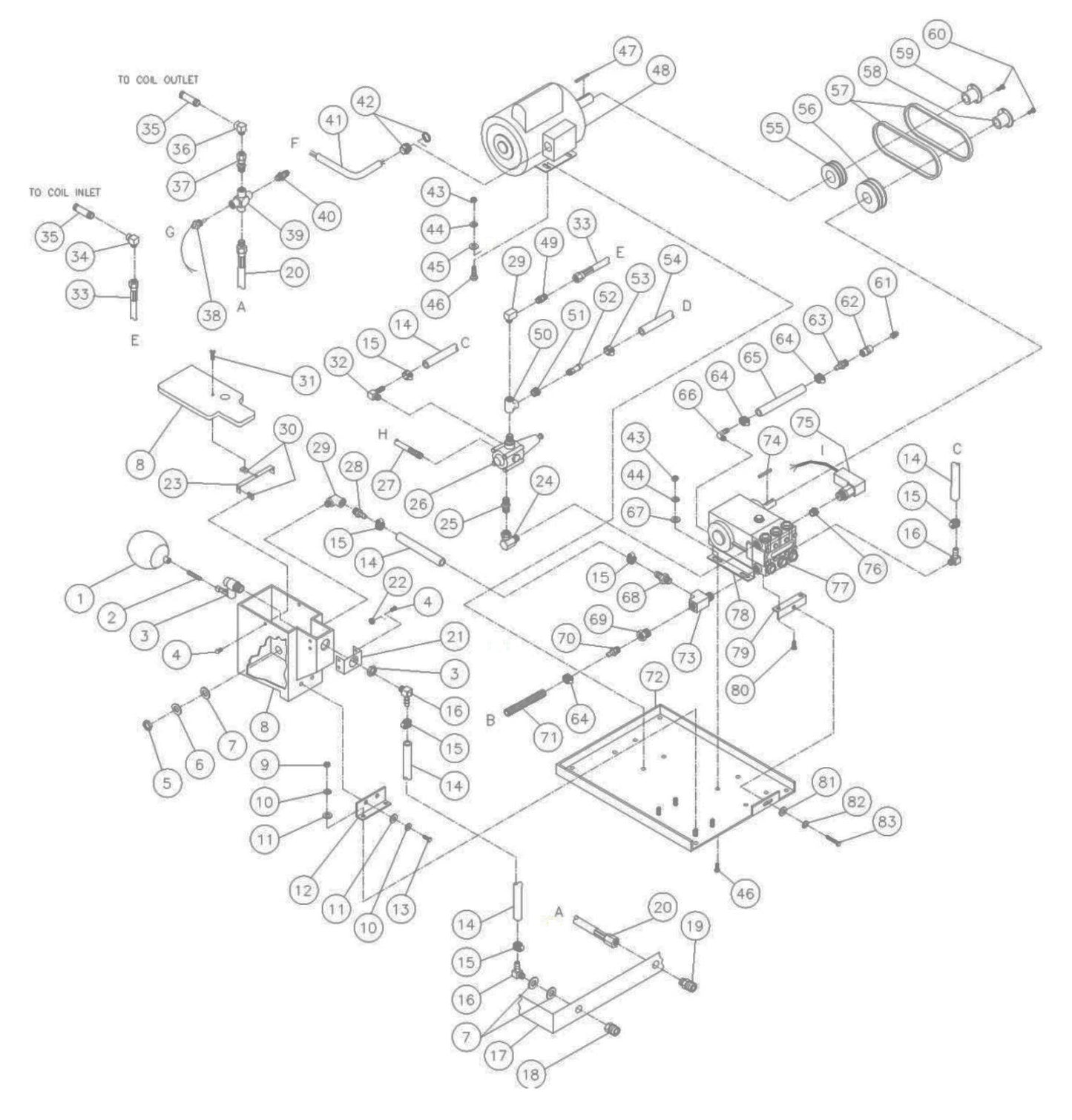

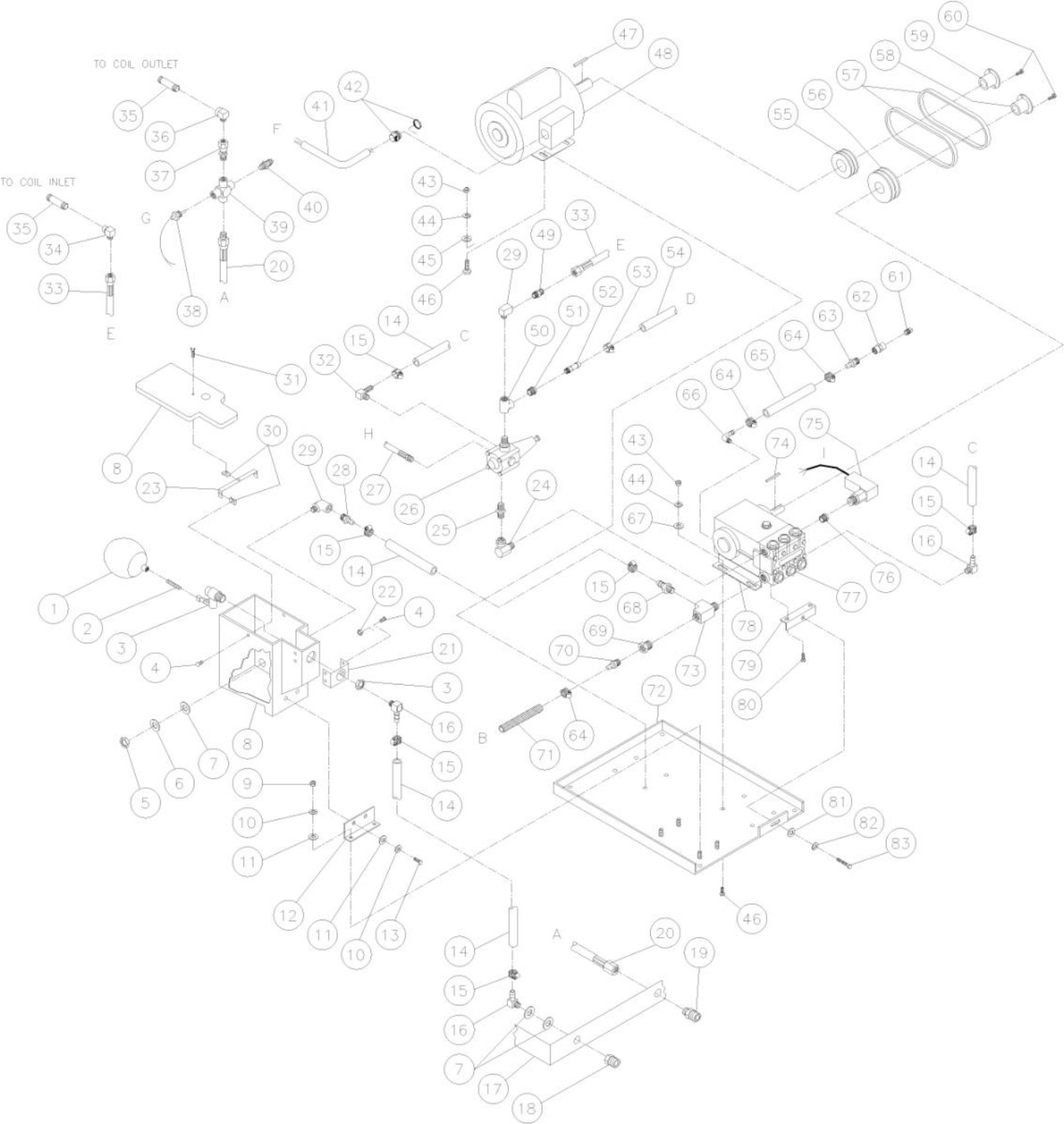

HG-1505-0M30, HG-2004-0M30, HG-2205-0M30, HG-3004-0M30 (sn:0-26639) Motor/Pump Assembly Parts by Mi-T-M

HG-1505-0M30, HG-2004-0M30, HG-2205-0M30, HG-3004-0M30 (sn:0-26639) Motor/Pump Assembly Parts by Mi-T-M

  • HG-1505-0M30, HG-2004-0M30, HG-2205-0M30, HG-3004-0M30 (sn:0-26639) Motor/Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
22-0059 Float 1/4-20 Polyethyne for AC1-HE15-05M Air Compressor by Mi-T-M 220059
$7.70
2
31-3318 STUD BY MITM
Call for Price call for price call for price
3
22-0058 FLOAT VALVE BY MITM
Call for Price call for price call for price
4
27-2930 Screw for MiTM Pressure Washers 272930
$7.65
5
23-0138 Locknut- 3/8"Jam, Brass for AC1-HE02-05M by Mi-T-M 230138
$11.95
6
28-0050 WASHER BY MITM
$0.68
7
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
8
12-0035 FLOAT TANK AND LID ASSEMBLY BY MITM
Call for Price call for price call for price
9
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
10
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
11
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
12
20-0148A01 BRACKET BY MITM
$8.10
13
27-0014 BOLT BY MITM
$0.68
14
15-0007 HOSE *(TWO FEET REQUIRED) BY MITM
$3.51
15
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
16
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
17
5-0084A01 FRAME BY MITM
Call for Price call for price call for price
18
23-0001 Garden Hose-Swiv 1/2Fx3/4F-Br for AC1-HE02-05M by Mi-T-M 230001
$13.87
19
17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007
$17.83
20
15-0090 HIGH PRESSURE HOSE BY MITM
$29.84
21
20-0188A01 FLOAT SUPPORT BRACKET BY MITM
$10.80
22
30-0154 Locknut for MiTM Pressure Washers 300154
$5.93
23
56-0020 LID BRACKET BY MITM
$0.68
24
24-0046 Elbow 3/8Mx1/2Jic Fs 90 Steel for AC2-PH11-20M Air Compressor by Mi-T-M 240046
$33.30
25
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
26
8-0013 Unloader K7.1 Regulating for AC1-HR45-05M Air Compressor by Mi-T-M 80013
$238.05
26
8-0012 Unloader K 7.0 Regulating for AC1-HE15-05M Air Compressor by Mi-T-M 80012
$245.19
27
15-0072 Hose 1/4X24" 5800Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150072
$42.58
28
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
29
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
30
30-2104 U-CLIP NUT BY MITM
Call for Price call for price call for price
31
27-2953 SCREW BY MITM
$1.35
32
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
33
15-0089 HOSE BY MITM
$32.40
34
24-0006 Elbow for MiTM Pressure Washers 240006
$52.50
35
24-0103 NIPPLE BY MITM
$1.35
36
24-0011 ELBOW BY MITM
$10.80
37
24-0049 Connect 3/8M X 3/8F Swiv-Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240049
Call for Price call for price call for price
38
22-0118 Thermo Control Rtd (Pakstat) for AC1-HH04-05M Air Compressor by Mi-T-M 220118
$164.47
39
24-0001 Cross 3/8" All Female Steel for AC1-HE02-05M1 Air Compressor by Mi-T-M 240001
$43.35
40
32-0303 HIGH LIMIT TEMPERATURE CONTROL BY MITM
$72.23
41
32-0023 Cord 10/4 So Per Ft for AC1-PR06-08M Air Compressor by Mi-T-M 320023
$22.28
42
32-0085 Connector 3/4 Romex for AC1-PE15-08M Air Compressor by Mi-T-M 320085
$5.84
43
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
44
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
45
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
46
27-0117 Bolt for ABS Air Compressor by Mi-T-M 270117
$1.99
47
43-0039 KEY WITH MOTOR BY MITM
$5.40
48
2-0011 MOTOR 8HP 575V 3PH ODP (3004-0E5G) BY MITM
$1,595.51
48
2-0015 MOTOR 8HP 200V 1PH ODP (3004-0E8G) BY MITM
$1,337.85
49
*24-0010 Nipple 3/8" Hex Steel for Mi-T-M CA-2403-0MRB by MiTM 240010
$7.89
50
24-0026 Tee 3/8" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240026
$25.92
51
23-0017 Bushing 1/4F X 3/8M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230017
$5.99
52
22-0046 POP-OFF VALVE BY MITM
$31.94
53
42-0003 HOSE CLAMP BY MITM
$2.16
54
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
55
10-0029 Sheave 2Ak32H for AC2-PH11-30M Air Compressor by Mi-T-M 100029
$67.56
55
10-0030 Sheave 2Ak46H for AC2-PR09-08AB Air Compressor by Mi-T-M 100030
$83.22
56
10-0065 Sheave 2Ak49H (4.5 Pitch Dia) for AC1-PH65-08M Air Compressor by Mi-T-M 100065
$52.10
56
10-0026 PUMP SHEAVE FOR HG-2004-0M10 BY MITM
$38.48
56
10-0035 Sheave 2Ak74H for AC2-PR09-08AB Air Compressor by Mi-T-M 100035
$119.25
57
11-0031 Cog Belt Ax35 for AC2-SV11-30M Air Compressor by Mi-T-M 110031
$37.11
57
11-0006 Cog Belt Ax36 for AC1-HE02-05M by Mi-T-M 110006
$25.30
57
11-0030 Belt Ax41 for AC1-HE15-05M Air Compressor by Mi-T-M 110030
$35.72
58
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
59
*9-0010 Bushing H X 1-1/8 Motor for Mi-T-M CA-2403-0MHB by MiTM 90010
$18.08
59
*9-0008 Bushing H X 1 3/8 Motor for MI-T-M 3004-0ME1 CW Series by MiTM 90008
$18.08
60
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
61
*24-0009 Plug 1/4"Npt Sq Head Zinc for Mi-T-M CA-2403-0MHB by MiTM 240009
$3.95
62
23-0002 Coupling 1/4F X 1/4F Hex-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230002
Call for Price call for price call for price
63
23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230069
$4.85
64
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
65
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
66
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
67
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
68
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
69
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
76
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
70
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
71
15-0079 Hose 1/4"Id Vinyl Reinf.-Clear for AC1-HH04-05M Air Compressor by Mi-T-M 150079
$3.99
72
20-0143A01 PUMP & MOTOR MOUNT PLATE BY MITM
$116.10
73
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
74
43-0048 KEY BY MITM
$6.35
75
850-0173 NIPPLE BY MITM
$46.71
77
3-0008 Pump Rh 4.5 Gpm At 2200 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 30008
$1,244.52
77
3-0009 PUMP (HG-2205-0M10) BY MITM
$1,530.90
77
3-0011 Pump for MiTM Pressure Washers 30011
$2,081.96
78
46-0066 PUMP FOOT BY MITM
Call for Price call for price call for price
79
13-0050A01 PUMP TIGHTENER BY MITM
$9.45
80
27-8471 BOLT BY MITM
$7.65
81
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
82
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
83
27-0526 BOLT BY MITM
$0.68
