HG Series Burner Assembly Parts By Mi-T-M

HG Series Burner Assembly Parts By Mi-T-M

  • HG Series Burner Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0174A18 COIL BASE BY MITM
$425.12
2
27-3064 Screw BY MITM
$0.68
3
20-0651A18 CLIP/COIL RETAINER BY MITM
$3.72
4
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
5
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
6
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
7
44-0117 IGNITOR WIRE *(FIVE FEET REQUIRED) BY MITM
$3.72
8
44-0119 SPARK PLUG TERMINAL BY MITM
$2.03
9
44-0118 SPARK PLUG BOOT BY MITM
$7.28
10
44-0115 PLOT BURNER IGNITOR BY MITM
$199.50
11
4-0011 NATURAL GAS ASPERATING BURNER RING BY MITM
$623.30
12
31-2008 Bolt BY MITM
$2.03
13
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
16
24-0055 Tee 1/2" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240055
$24.90
18
20-0621A18 DOME BY MITM
$153.03
19
850-0315 INSULATION DOME BY MITM
$43.20
20
66-0016 HEAT EXCHANGER COIL BY MITM
$4,256.48
22
850-0313 INSULATION BLANKET BY MITM
$204.44
23
20-0634A18 OUTER WRAP BY MITM
$476.69
24
24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254
$24.17
26
13-0107A01 Ignitor Bracket BY MITM
$13.50
27
27-2096 SCREW BY MITM
$0.68
29
27-0014 BOLT BY MITM
$0.68
30
54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM
$3.05
31
33-0219 HEAT SHRINK *(ONE FOOT REQUIRED) BY MITM
$18.77
32
32-0221 Terminal 14 Ga 1/4F Spade Ins for AC1-HR45-05M Air Compressor by Mi-T-M 320221
$2.85
37
20-0667A18 SUPPORT BRACKET BY MITM
$12.83
39
22-0144 NATURAL GAS REGULATING VALVE BY MITM
$544.94
40
24-0012 Pipe Nipple BY MITM
$6.48
41
24-0096 ELBOW BY MITM
$9.53
42
24-0259 UNION BY MITM
$37.74
43
24-0260 Pipe Nipple BY MITM
$8.45
44
24-0261 TEE BY MITM
$15.12
45
24-0262 Cap BY MITM
$5.40
46
24-0097 PIPE NIPPLE BY MITM
$13.04
47
24-0263 PIPE NIPPLE BY MITM
$65.42
14
24-0242 Street Tee-1/2Npt Steel Forged for AC1-HE02-05M by Mi-T-M 240242
$40.76
15
32-0962 Thermostat-Adj 250F 72" Cap for AC1-HE02-05M by Mi-T-M 320962
$88.61
17
24-0244 Pipe Nipple-1/2Npt X 4"Long for AC1-HE02-05M1 Air Compressor by Mi-T-M 240244
$17.50
25
24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243
$19.94
33
24-0102 Elbow-3/4"Fnpt Black Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240102
$11.09
34
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
35
9-0028 Bushing 1/2 Od Snap for AC1-HE02-05M1 Air Compressor by Mi-T-M 90028
$1.99
36
24-0258 Pipe Nipple 3/4"X11" Blk Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240258
$21.93
38
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
48
22-0336 Ball Valve for AC1-HE02-05M1 Air Compressor by Mi-T-M 220336
$32.40
49
24-0101 Union-3/4"Fnpt Black Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240101
$27.49
21
850-0314 INSULATION BLANKET BY MITM
$233.97
28
24-0095 Nipple for ABS Air Compressor by Mi-T-M 240095
$6.77
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

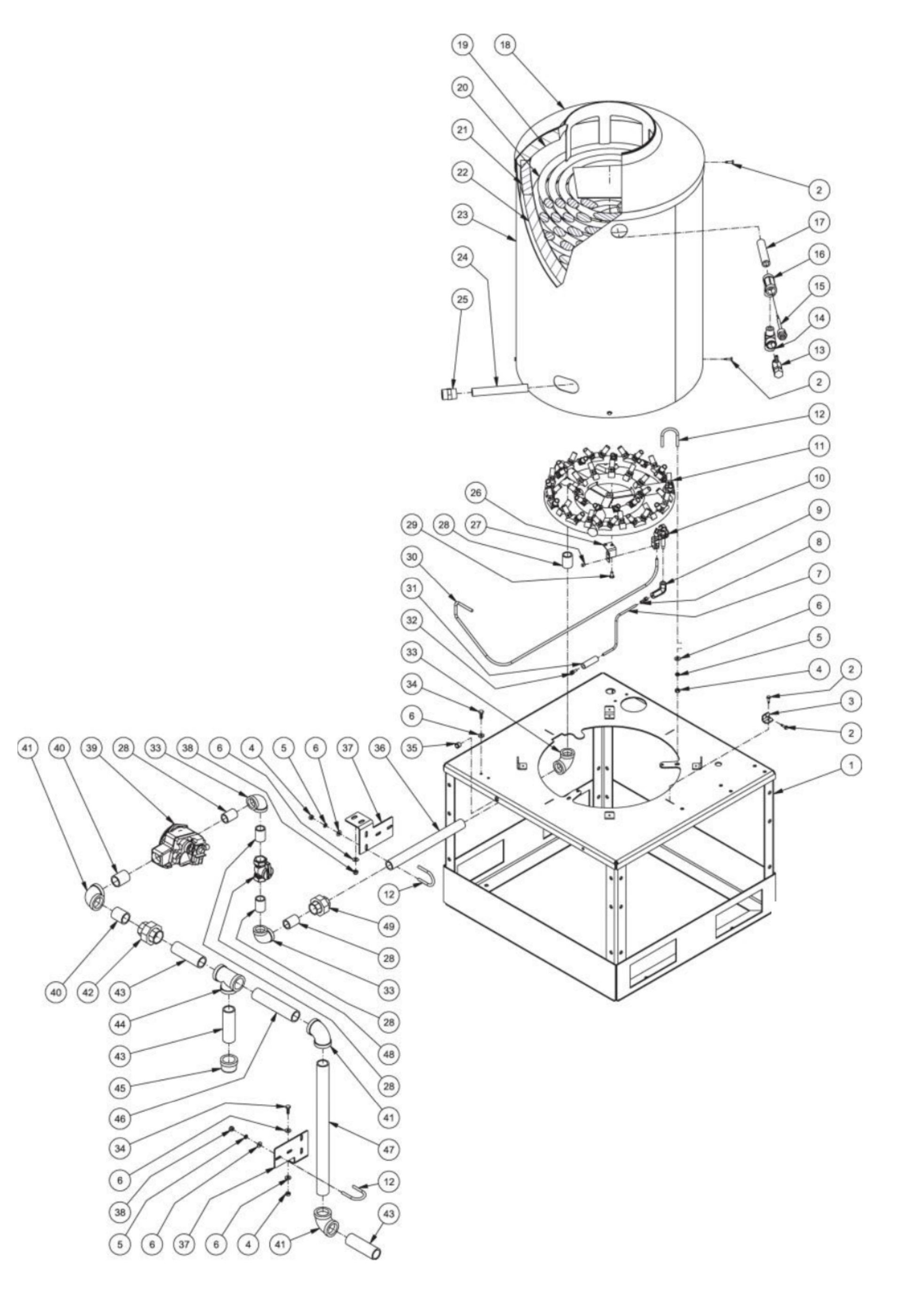

How do I use this diagram?
