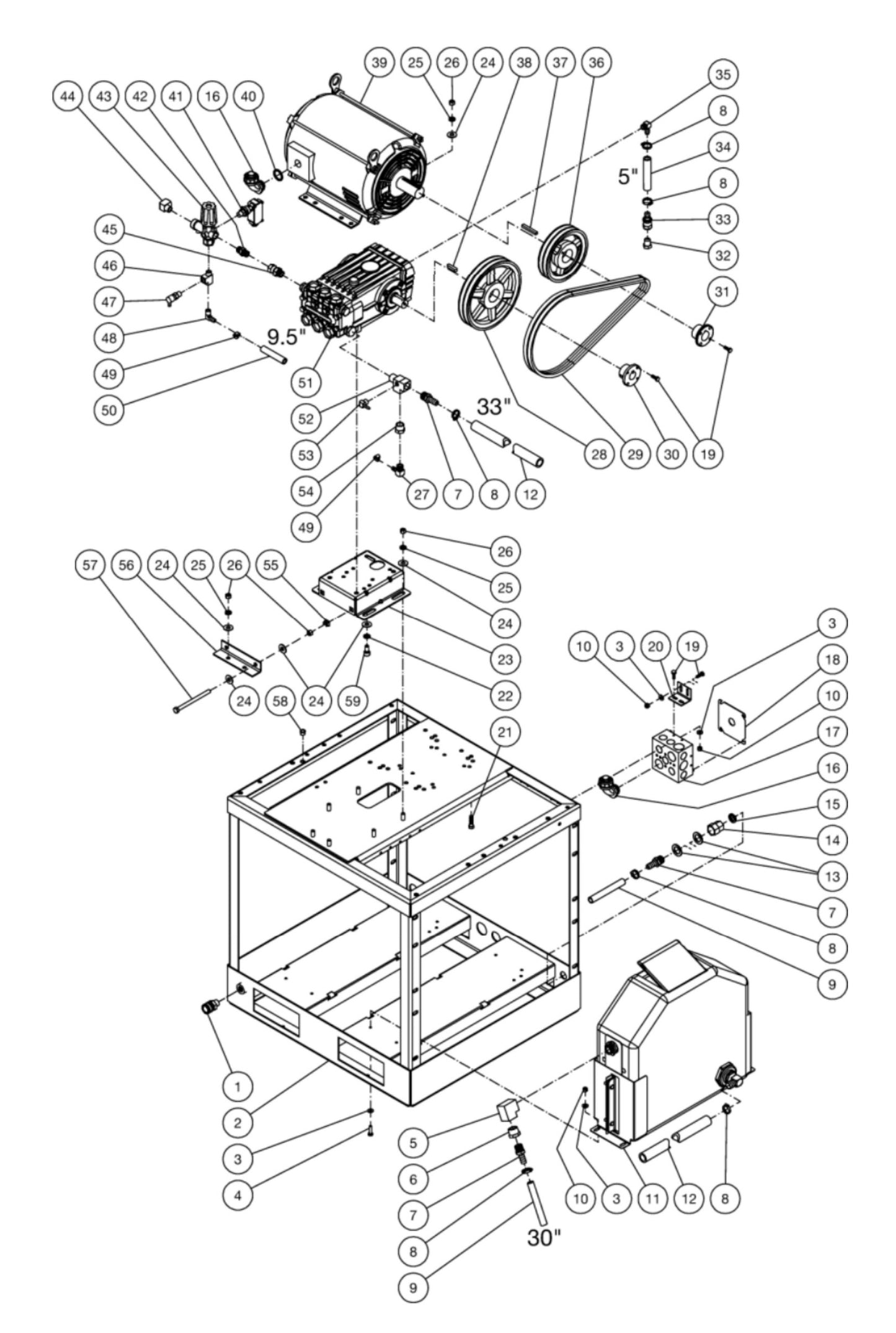

HG (sn:15021778-15024154), (sn:15024155-15045000) Series Motor Base Assembly Parts By Mi-T-M

HG (sn:15021778-15024154), (sn:15024155-15045000) Series Motor Base Assembly Parts By Mi-T-M

  • HG (sn:15021778-15024154), (sn:15024155-15045000) Series Motor Base Assembly Parts By Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
2
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
4
23-0391 Elbow 3/4Fx3/4F 90 Cast Brass for AC1-PE02-20M Air Compressor by Mi-T-M 230391
$32.40
5
23-0023 Bushing 3/4M X 1/2F Hex Brass for AC1-HH04-05M Air Compressor by Mi-T-M 230023
$12.75
6
23-0036 Barb 1/2Mp X 3/4 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230036
$14.53
7
42-0003 HOSE CLAMP BY MITM
$2.16
11
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
12
28-0051 Washer for MiTM Pressure Washers 280051
$20.40
15
32-0487 Conduit Elbow for MiTM Pressure Washers by MiTM 320487
$43.85
15
32-0488 Conduit Straight End 3/4" for AC1-PH65-08M Air Compressor by Mi-T-M 320488
$9.24
15
32-0310 JUNCTION BOX BY MITM
$7.43
16
33-0017 BLANK COVER BY MITM
$5.21
17
20-0626A18 BRACKET BY MITM
$5.40
19
5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18
Call for Price call for price call for price
21
10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007
$124.92
24
9-0008 Bushing H X 1 3/8 Motor for AC1-PH65-20M Air Compressor by Mi-T-M 90008
$21.01
26
11-0005 Belt (3004) for MiTM Pressure Washers 110005
$61.16
27
11-0057 Cog Belt Ax39 for MiTM Pressure Washers 110057
$81.81
27
11-0008 Cog Belt Ax40 for AC1-HR45-05M Air Compressor by Mi-T-M 110008
$27.27
27
10-0104 Sheave for MiTM Pressure Washers 100104
$161.63
28
10-0041 Sheave 2Ak54H for MI-T-M 3004-0ME1 CW Series by MiTM 100041
$64.45
28
10-0036 Sheave 2Ak56H for AC1-PH65-20M Air Compressor by Mi-T-M 100036
$94.67
28
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
29
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
30
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
33
2-0107 Motor (HEG-1805/2004-0E2G) BY MITM
$1,150.61
34
2-0110 Motor (HEG-3004-0E3G/4G) BY MITM
$1,499.58
34
2-0108 MOTOR (2004-2E3G_2E4G) BY MITM
$1,193.07
34
2-0113 Motor (HHD-3005-0E5G) BY MITM
$1,702.35
34
2-0111 MOTOR 8HP 575V 3PH ODP (3004-0E5G) BY MITM
$1,903.71
34
2-0131 Motor (HEG-3005-0E9G) BY MITM
$1,749.81
34
2-0112 Motor (HHS-3005-0E3A/4A) BY MITM
$1,338.53
34
2-0132 Motor (HEG-3005-0E2G) BY MITM
$2,060.85
34
2-0129 Motor (HEG-3004-0E9G) BY MITM
Call for Price call for price call for price
34
2-0125 Motor (HEG-3004-0E8G) BY MITM
$1,857.87
34
2-0109 Motor (HEG-3004-0E2G) BY MITM
$1,844.99
34
2-0127 Motor (HHS-2004-0E9A) BY MITM
$1,008.93
34
2-0124 Motor (HHD-2004-0E8G) BY MITM
$1,258.88
34
2-0130 Motor (HEG-3005-0E8G) BY MITM
$1,689.53
34
26-0314 Gasket-3/4 Npt Conduit Fitting for AC1-PH65-08M Air Compressor by Mi-T-M 260314
$4.85
34
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
34
23-0127 Tee 1/4M X 1/4F X 1/4F Street for AC1-HE15-05M Air Compressor by Mi-T-M 230127
$16.37
41
22-0408 Thermal Relief Valve-1/4" 140F for AC1-PE03-20M Air Compressor by Mi-T-M 220408
Call for Price call for price call for price
42
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
43
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
44
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
45
23-0074 Elbow 3/8M X 3/8 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230074
$21.00
47
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
48
20-0584A18 Tension Bracket for MiTM Pressure Washers 200584A18
$57.12
49
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
