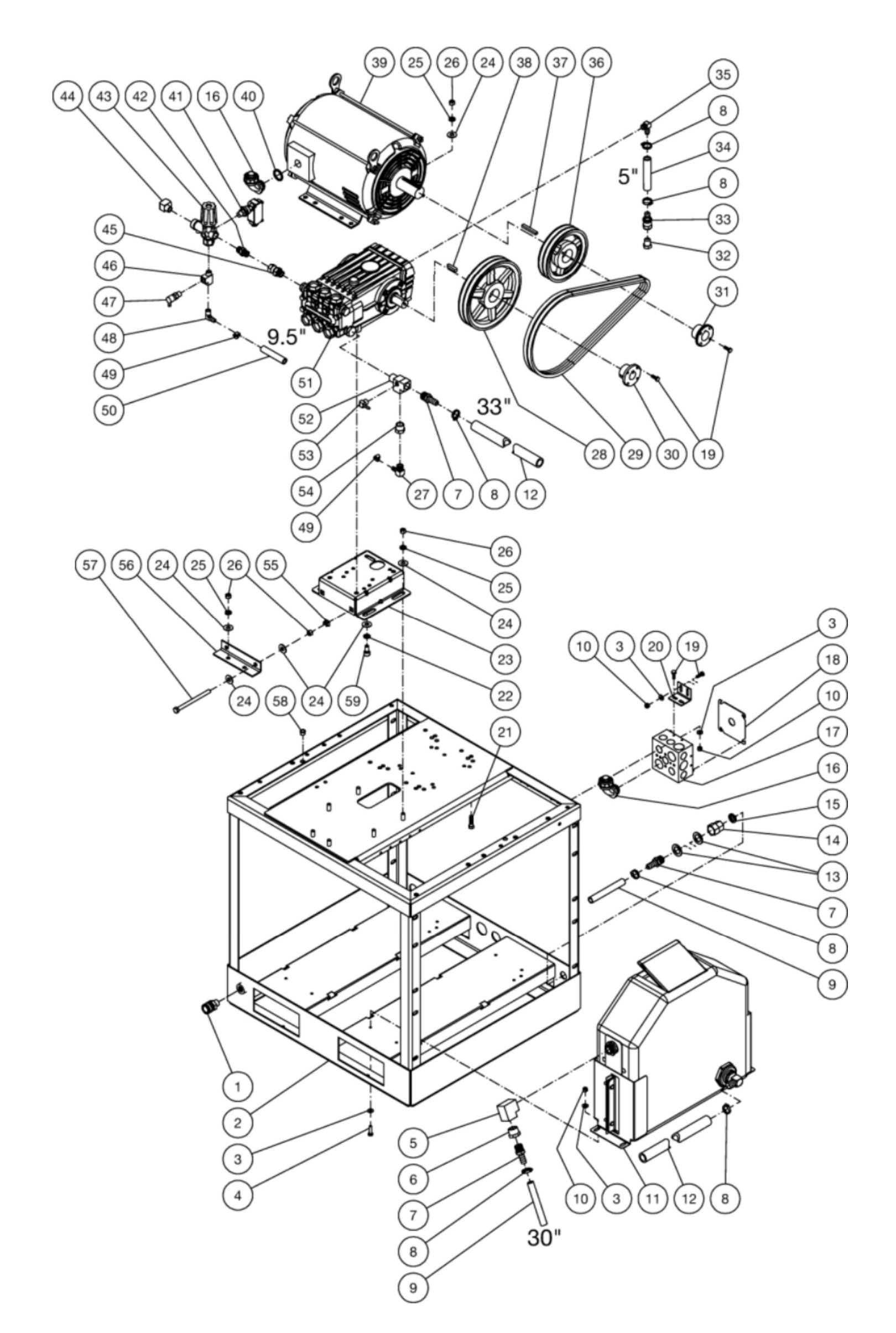

HG (sn:15045001-99999999) Series Motor Base Assembly Parts By Mi-T-M

HG (sn:15045001-99999999) Series Motor Base Assembly Parts By Mi-T-M

  • HG (sn:15045001-99999999) Series Motor Base Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007
$17.83
2
5-0173A18 Motor Pump Base Assembly BY MITM
$655.43
3
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
4
27-0016 Bolt for MiTM Pressure Washers 270016
$5.93
5
23-0391 Elbow 3/4Fx3/4F 90 Cast Brass for AC1-PE02-20M Air Compressor by Mi-T-M 230391
$32.40
6
23-0023 Bushing 3/4M X 1/2F Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230023
$12.75
7
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
7
23-0036 Barb 1/2Mp X 3/4 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230036
$14.53
8
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
8
42-0003 HOSE CLAMP BY MITM
$2.16
9
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
12
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
10
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
12
15-0033 Hose 3/4 250 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 150033
$9.96
13
28-0051 Washer for MiTM Pressure Washers 280051
$20.40
14
23-0001 Garden Hose-Swiv 1/2Fx3/4F-Br for AC1-HE02-05M by Mi-T-M 230001
$13.87
15
19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001
$1.99
16
32-0487 Conduit Elbow for MiTM Pressure Washers by MiTM 320487
$43.85
16
32-0488 Conduit Straight End 3/4" for AC1-PH65-08M Air Compressor by Mi-T-M 320488
$9.24
17
32-0310 JUNCTION BOX BY MITM
$7.43
18
33-0017 BLANK COVER BY MITM
$5.21
19
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
20
20-0626A18 BRACKET BY MITM
$5.40
21
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
22
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
23
29-0055 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290055
$1.99
24
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
25
5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18
Call for Price call for price call for price
26
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
27
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
28
23-0074 Elbow 3/8M X 3/8 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230074
$21.00
29
10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007
$124.92
30
11-0005 Belt (3004) for MiTM Pressure Washers 110005
$61.16
30
11-0008 Cog Belt Ax40 for AC1-HR45-05M Air Compressor by Mi-T-M 110008
$27.27
30
11-0057 Cog Belt Ax39 for MiTM Pressure Washers 110057
$81.81
31
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
32
9-0010 Bushing for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 90010
$21.01
32
9-0008 Bushing H X 1 3/8 Motor for AC1-PH65-20M Air Compressor by Mi-T-M 90008
$21.01
33
23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411
$12.87
34
23-0360 Hose Barb for AC1-HE02-05M by Mi-T-M 230360
$13.55
35
15-0305 HOSE BY MITM
$3.86
36
23-0120 Barb 1/4M X 1/2 Hose Brass for AC1-PE02-08M Air Compressor by Mi-T-M 230120
$5.84
37
23-0014 Elbow 1/4"Fptx1/4Mpt 90 Brass for AC1-HR45-05M Air Compressor by Mi-T-M 230014
$9.18
38
10-0104 Sheave for MiTM Pressure Washers 100104
$161.63
38
10-0036 Sheave 2Ak56H for AC1-PH65-20M Air Compressor by Mi-T-M 100036
$94.67
38
10-0041 Sheave 2Ak54H for MI-T-M 3004-0ME1 CW Series by MiTM 100041
$64.45
39
43-0174 Key for MiTM Pressure Washers 430174
$78.33
39
43-0166 Key (2004) for MiTM Pressure Washers 430166
$35.67
40
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
41
2-0210 Motor (3004 Three Phase, Cx-0077) for MiTM Pressure Washers 20210
$2,885.07
41
2-0207 Motor (2004 Single Phase) for MiTM Pressure Washers 20207
$2,119.05
41
2-0208 MOTOR 6HP 230V 3PH ODP (1805/2004-0E3G/4G) BY MITM
$1,193.07
41
2-0215 Motor (Cx-0119) for MiTM Pressure Washers 20215
$1,959.66
41
2-0216 Motor (Cx-0120) for MiTM Pressure Washers 20216
$2,057.70
41
2-0217 MOTOR 8HP 230V 1PH ODP (3004-0E2G) BY MITM
$1,844.99
41
2-0212 Motor (3005 Three Phase, Cx-0121) for MiTM Pressure Washers 20212
$3,249.21
41
2-0228 MOTOR 8HP 575V 3PH ODP (3004-0E5G) BY MITM
$1,540.16
41
2-0219 MOTOR 8HP 200V 1PH ODP (3004-0E8G) BY MITM
$1,857.87
41
2-0220 MOTOR 8HP 200V 3PH ODP (3004-0E9G) BY MITM
$1,522.13
41
2-0221 MOTOR 10HP 230V 1PH ODP (3005-0E2G) BY MITM
$2,060.85
41
2-0229 MOTOR 10HP 575V 3PH ODP (3005-0E5G) BY MITM
$1,702.35
41
2-0223 MOTOR (3005-2E8G) BY MITM
$1,689.53
41
2-0224 MOTOR 10HP 200V 3PH ODP (3005-0E9G) BY MITM
$1,749.81
41
26-0314 Gasket-3/4 Npt Conduit Fitting for AC1-PH65-08M Air Compressor by Mi-T-M 260314
$4.85
42
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
43
850-0252 Unloader Assy for AC1-HE02-05M by Mi-T-M 8500252
$131.04
44
23-0034 Elbow 3/8M X 3/8F 90 Str Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230034
$19.33
45
24-0037 3/8Mnptx#8Jic Swivel for AC1-HE02-05M by Mi-T-M 240037
$26.35
46
23-0127 Tee 1/4M X 1/4F X 1/4F Street for AC1-HE15-05M Air Compressor by Mi-T-M 230127
$16.37
47
22-0408 Thermal Relief Valve-1/4" 140F for AC1-PE03-20M Air Compressor by Mi-T-M 220408
Call for Price call for price call for price
48
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
49
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
50
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
51
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
52
23-0388 23-0124 Street Tee Tapped for AC1-HE02-05M by Mi-T-M 230388
$36.69
53
23-0054 Elbow 1/4M X 1/4 Barb 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230054
$11.28
54
23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016
$6.03
55
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
56
20-0584A18 Tension Bracket for MiTM Pressure Washers 200584A18
$57.12
57
27-0133 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270133
$1.99
58
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
59
9-0028 Bushing 1/2 Od Snap for AC1-HE02-05M1 Air Compressor by Mi-T-M 90028
$1.99
