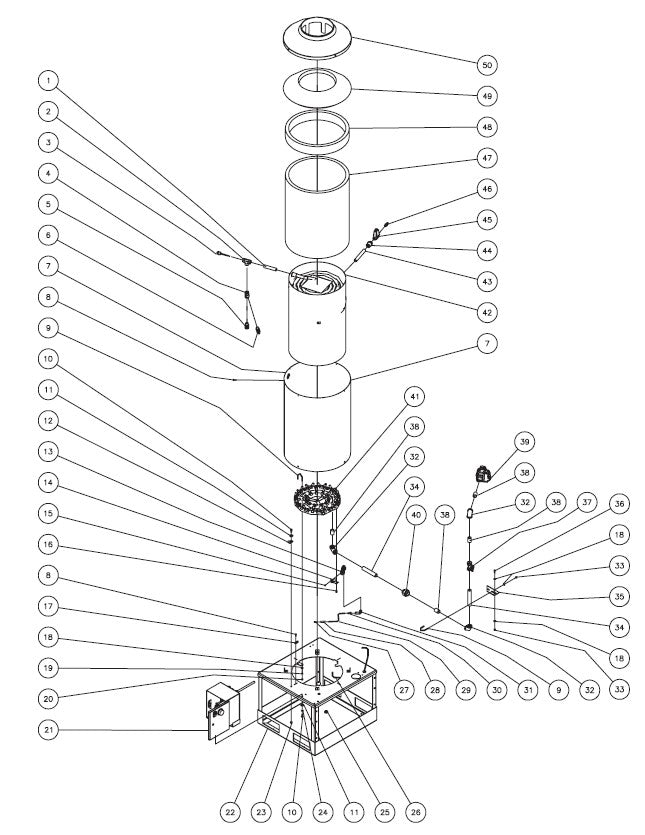

HGM-3506-0E10 Burner Assembly Parts By MiTM

HGM-3506-0E10 Burner Assembly Parts By MiTM

  • HGM-3506-0E10 Burner Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
23-0244 Plug 3/8 Hex Socket Head Brass for AS2-P305-30M Air Compressor by Mi-T-M 230244 23-0244 Plug 3/8 Hex Socket Head Brass for AS2-P305-30M Air Compressor by Mi-T-M 230244
$19.70
2
24-0055 Tee 1/2" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240055 24-0055 Tee 1/2" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240055
$24.90
3
32-0962 Thermostat-Adj 250F 72" Cap for AC1-HE02-05M by Mi-T-M 320962 32-0962 Thermostat-Adj 250F 72" Cap for AC1-HE02-05M by Mi-T-M 320962
$88.61
4
24-0242 Street Tee-1/2Npt Steel Forged for AC1-HE02-05M by Mi-T-M 240242 24-0242 Street Tee-1/2Npt Steel Forged for AC1-HE02-05M by Mi-T-M 240242
$40.76
5
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029 17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
6
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309 22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
7
20-0634A18 OUTER WRAP BY MITM 20-0634A18 OUTER WRAP BY MITM
$476.69
8
27-3064 Screw BY MITM 27-3064 Screw BY MITM
$0.68
9
31-2008 Bolt BY MITM 31-2008 Bolt BY MITM
$2.03
10
27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066 27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066
$1.99
11
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
12
43-0003 Clip Wire Fastener 3/8Id for AC1-PE15-08M1 Air Compressor by Mi-T-M 430003 43-0003 Clip Wire Fastener 3/8Id for AC1-PE15-08M1 Air Compressor by Mi-T-M 430003
$2.85
13
44-0115 PLOT BURNER IGNITOR BY MITM 44-0115 PLOT BURNER IGNITOR BY MITM
$199.50
14
13-0107A01 Ignitor Bracket BY MITM 13-0107A01 Ignitor Bracket BY MITM
$13.50
15
27-2096 SCREW BY MITM 27-2096 SCREW BY MITM
$0.68
16
27-0014 BOLT BY MITM 27-0014 BOLT BY MITM
$0.68
17
20-0651A18 CLIP/COIL RETAINER BY MITM 20-0651A18 CLIP/COIL RETAINER BY MITM
$3.72
18
28-0002 Washer for MiTM Pressure Washers 280002 28-0002 Washer for MiTM Pressure Washers 280002
$5.93
19
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006 29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
20
30-0002 Nut for MiTM Pressure Washers 300002 30-0002 Nut for MiTM Pressure Washers 300002
$7.65
22
5-0174A18 COIL BASE BY MITM 5-0174A18 COIL BASE BY MITM
$425.12
23
30-0157 Locknut for MiTM Pressure Washers 300157 30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
24
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007 29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
25
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
26
54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM 54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM
$3.05
27
32-0221 Terminal 14 Ga 1/4F Spade Ins for AC1-HR45-05M Air Compressor by Mi-T-M 320221 32-0221 Terminal 14 Ga 1/4F Spade Ins for AC1-HR45-05M Air Compressor by Mi-T-M 320221
$2.85
28
33-0219 HEAT SHRINK *(ONE FOOT REQUIRED) BY MITM 33-0219 HEAT SHRINK *(ONE FOOT REQUIRED) BY MITM
$18.77
29
44-0117 IGNITOR WIRE *(FIVE FEET REQUIRED) BY MITM 44-0117 IGNITOR WIRE *(FIVE FEET REQUIRED) BY MITM
$3.72
30
44-0119 SPARK PLUG TERMINAL BY MITM 44-0119 SPARK PLUG TERMINAL BY MITM
$2.03
31
44-0118 SPARK PLUG BOOT BY MITM 44-0118 SPARK PLUG BOOT BY MITM
$12.28
32
24-0102 Elbow-3/4"Fnpt Black Pipe for AC1-HE15-04M Air Compressor by Mi-T-M 240102 24-0102 Elbow-3/4"Fnpt Black Pipe for AC1-HE15-04M Air Compressor by Mi-T-M 240102
$11.09
33
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155 30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
34
24-0268 Pipe Nipple BY MITM 24-0268 Pipe Nipple BY MITM
$4.26
35
20-0732A18 Plumbing Bracket BY MITM 20-0732A18 Plumbing Bracket BY MITM
$15.53
36
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015 27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
37
22-0336 Ball Valve for AC1-HE02-05M1 Air Compressor by Mi-T-M 220336 22-0336 Ball Valve for AC1-HE02-05M1 Air Compressor by Mi-T-M 220336
$32.40
38
24-0095 Nipple for ABS Air Compressor by Mi-T-M 240095 24-0095 Nipple for ABS Air Compressor by Mi-T-M 240095
$6.77
39
22-0144 NATURAL GAS REGULATING VALVE BY MITM 22-0144 NATURAL GAS REGULATING VALVE BY MITM
$544.94
40
24-0101 Union-3/4"Fnpt Black Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240101 24-0101 Union-3/4"Fnpt Black Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240101
$27.49
41
4-0011 NATURAL GAS ASPERATING BURNER RING BY MITM 4-0011 NATURAL GAS ASPERATING BURNER RING BY MITM
$623.30
42
66-0016 HEAT EXCHANGER COIL BY MITM 66-0016 HEAT EXCHANGER COIL BY MITM
$4,256.48
43
24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254 24-0254 Pipe Nipple-1/2Npt X 6" Long for AC1-PE03-20M Air Compressor by Mi-T-M 240254
$24.17
44
24-0048 Reducer 1/2F X 3/8M Hex-Steel for AC1-HE02-05M1 Air Compressor by Mi-T-M 240048 24-0048 Reducer 1/2F X 3/8M Hex-Steel for AC1-HE02-05M1 Air Compressor by Mi-T-M 240048
$13.29
45
22-0348 FLOW SWITCH BY MITM 22-0348 FLOW SWITCH BY MITM
$107.19
46
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005 17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
47
850-0313 INSULATION BLANKET BY MITM 850-0313 INSULATION BLANKET BY MITM
$204.44
48
850-0314 INSULATION BLANKET BY MITM 850-0314 INSULATION BLANKET BY MITM
$233.97
49
850-0315 INSULATION DOME BY MITM 850-0315 INSULATION DOME BY MITM
$43.20
50
20-0621A18 DOME BY MITM 20-0621A18 DOME BY MITM
$153.03
21
Call for Price call for price call for price
