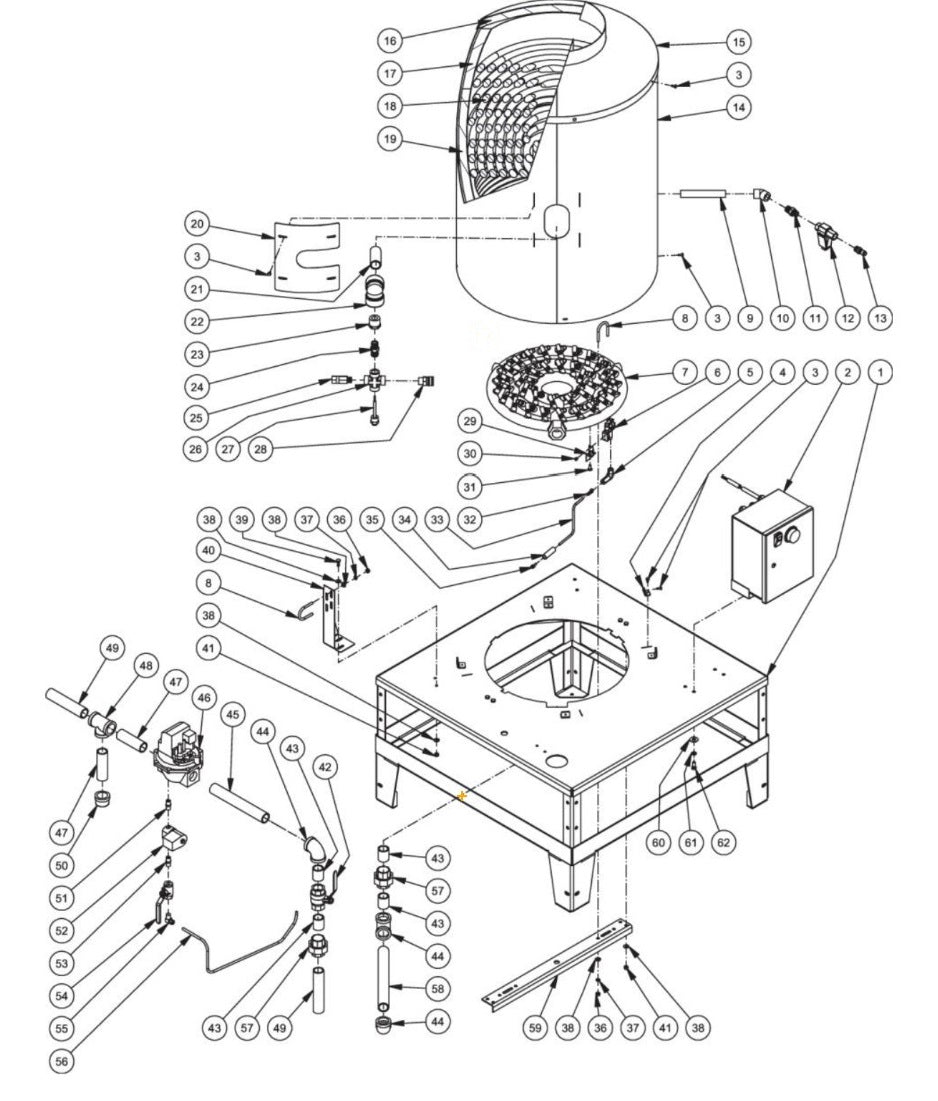

HGM-3508-0E10 Frame Assembly Parts By MiTM

HGM-3508-0E10 Frame Assembly Parts By MiTM

  • HGM-3508-0E10 Frame Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
5-0267A18 Coil Base Assembly BY MITM 5-0267A18 Coil Base Assembly BY MITM
$750.20
3
27-3062 Screw for MiTM Pressure Washers 273062 27-3062 Screw for MiTM Pressure Washers 273062
$5.93
4
20-0651A18 CLIP/COIL RETAINER BY MITM 20-0651A18 CLIP/COIL RETAINER BY MITM
$3.72
5
44-0118 SPARK PLUG BOOT BY MITM 44-0118 SPARK PLUG BOOT BY MITM
$12.28
6
44-0115 PLOT BURNER IGNITOR BY MITM 44-0115 PLOT BURNER IGNITOR BY MITM
$199.50
6
44-0116 Pilot (HX-189) (Replaces Orfice provided with 44-0115) BY MITM 44-0116 Pilot (HX-189) (Replaces Orfice provided with 44-0115) BY MITM
$14.58
7
4-0023 BURNER RING BY MITM 4-0023 BURNER RING BY MITM
Call for Price call for price call for price
8
31-2008 Bolt BY MITM 31-2008 Bolt BY MITM
$2.03
9
24-0246 Pipe Nipple-1/2Npt X 5-1/2Long for AC1-HE02-05M by Mi-T-M 240246 24-0246 Pipe Nipple-1/2Npt X 5-1/2Long for AC1-HE02-05M by Mi-T-M 240246
$24.93
10
24-0148 Elbow BY MITM 24-0148 Elbow BY MITM
$5.40
11
24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024 24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024
$12.52
12
22-0348 FLOW SWITCH BY MITM 22-0348 FLOW SWITCH BY MITM
$107.19
13
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005 17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
14
20-0924A18 Coil Wrap BY MITM 20-0924A18 Coil Wrap BY MITM
$261.23
15
20-0935A18 Dome Assembly BY MITM 20-0935A18 Dome Assembly BY MITM
$174.15
16
850-0367 Insulation Dome BY MITM 850-0367 Insulation Dome BY MITM
$24.30
17
850-0366 INSULATION BLANKET BY MITM 850-0366 INSULATION BLANKET BY MITM
$18.90
18
66-0020 Coil Assembly BY MITM 66-0020 Coil Assembly BY MITM
Call for Price call for price call for price
19
850-0365 INSULATION BLANKET BY MITM 850-0365 INSULATION BLANKET BY MITM
$75.60
20
20-0925A18 Cover- Coil BY MITM 20-0925A18 Cover- Coil BY MITM
$26.33
21
24-0288 Pipe Nipple BY MITM 24-0288 Pipe Nipple BY MITM
$22.62
22
24-0298 Elbow BY MITM 24-0298 Elbow BY MITM
$64.34
23
24-0303 Reducer BY MITM 24-0303 Reducer BY MITM
$28.56
24
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031 24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
25
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309 22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
26
24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241 24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241
$68.11
27
32-0734 ADJUSTABLE THERMOSTAT BY MITM 32-0734 ADJUSTABLE THERMOSTAT BY MITM
$50.90
28
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029 17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
29
20-0936A18 IGNITOR BRACKET BY MITM 20-0936A18 IGNITOR BRACKET BY MITM
$15.53
30
27-2096 SCREW BY MITM 27-2096 SCREW BY MITM
$0.68
31
27-0014 BOLT BY MITM 27-0014 BOLT BY MITM
$0.68
32
44-0119 SPARK PLUG TERMINAL BY MITM 44-0119 SPARK PLUG TERMINAL BY MITM
$2.03
33
44-0117 IGNITOR WIRE *(FIVE FEET REQUIRED) BY MITM 44-0117 IGNITOR WIRE *(FIVE FEET REQUIRED) BY MITM
$3.72
34
33-0219 HEAT SHRINK *(ONE FOOT REQUIRED) BY MITM 33-0219 HEAT SHRINK *(ONE FOOT REQUIRED) BY MITM
$18.77
35
32-0221 SPADE TERMINAL BY MITM 32-0221 SPADE TERMINAL BY MITM
$1.62
36
30-0002 Nut for MiTM Pressure Washers 300002 30-0002 Nut for MiTM Pressure Washers 300002
$7.65
37
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006 29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
38
28-0002 Washer for MiTM Pressure Washers 280002 28-0002 Washer for MiTM Pressure Washers 280002
$5.93
39
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015 27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
40
20-0948A18 Bracket BY MITM 20-0948A18 Bracket BY MITM
$31.32
41
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155 30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
43
25-0012 O-Ring 20.69 X 2.62Mm for AM2-PE75-30M Air Compressor by Mi-T-M 250012 25-0012 O-Ring 20.69 X 2.62Mm for AM2-PE75-30M Air Compressor by Mi-T-M 250012
$2.99
44
24-0096 ELBOW BY MITM 24-0096 ELBOW BY MITM
$9.53
45
24-0252 PIPE NIPPLE BY MITM 24-0252 PIPE NIPPLE BY MITM
$26.87
46
25-0407 O-Ring 12.42 X 1.78Mm for AM2-SH09-30M Air Compressor by Mi-T-M 250407 25-0407 O-Ring 12.42 X 1.78Mm for AM2-SH09-30M Air Compressor by Mi-T-M 250407
$8.88
46
22-0417 Gas Regulator -LP (HX-0189) BY MITM 22-0417 Gas Regulator -LP (HX-0189) BY MITM
$1,263.33
47
24-0260 Pipe Nipple BY MITM 24-0260 Pipe Nipple BY MITM
$8.45
48
24-0261 TEE BY MITM 24-0261 TEE BY MITM
$15.12
49
24-0097 PIPE NIPPLE BY MITM 24-0097 PIPE NIPPLE BY MITM
$13.04
50
24-0262 Cap BY MITM 24-0262 Cap BY MITM
$5.40
51
23-0103 Nipple 1/4M X 1/4M Hex-Brass for AC1-PR06-20M Air Compressor by Mi-T-M 230103 23-0103 Nipple 1/4M X 1/4M Hex-Brass for AC1-PR06-20M Air Compressor by Mi-T-M 230103
$11.96
52
22-0409 PILOT VALVE BY MITM 22-0409 PILOT VALVE BY MITM
$321.84
54
22-0002 BALL VALVE BY MITM 22-0002 BALL VALVE BY MITM
$34.43
55
23-0417 Elbow BY MITM 23-0417 Elbow BY MITM
Call for Price call for price call for price
56
54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM 54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM
$3.05
57
24-0259 UNION BY MITM 24-0259 UNION BY MITM
$37.74
58
24-0289 Pipe Nipple BY MITM 24-0289 Pipe Nipple BY MITM
$18.23
59
20-0923A18 BURNER SUPPORT BY MITM 20-0923A18 BURNER SUPPORT BY MITM
$29.70
60
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
61
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007 29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
62
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066 27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
42
22-0344 Valve/Gas-1"-Aga Certified for Mi-T-M CA-2403-0MHB by MiTM 220344 22-0344 Valve/Gas-1"-Aga Certified for Mi-T-M CA-2403-0MHB by MiTM 220344
$54.11
