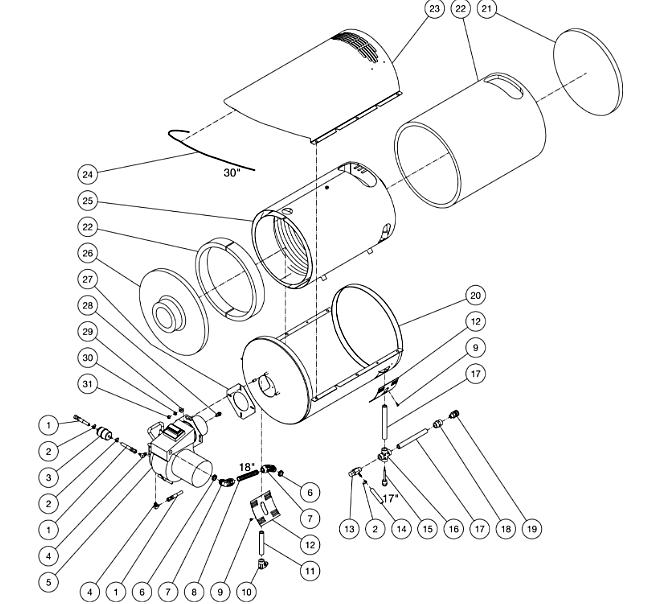

HHB-303-0E1A Heat Exchange Assembly Parts By MiTM

HHB-303-0E1A Heat Exchange Assembly Parts By MiTM

  • HHB-303-0E1A Heat Exchange Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147 15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147
$26.29
2
42-0004 Hose Clamp for MiTM Pressure Washers 420004 42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
3
19-0110 Fuel Filter/Inline for AC1-HE02-05M by Mi-T-M 190110 19-0110 Fuel Filter/Inline for AC1-HE02-05M by Mi-T-M 190110
$26.72
4
23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237 23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237
$12.39
5
4-0017 Sm-115Volt 3.375Inch Air Tube for AC1-HE02-05M by Mi-T-M 40017 4-0017 Sm-115Volt 3.375Inch Air Tube for AC1-HE02-05M by Mi-T-M 40017
$794.25
7
32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254 32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254
$9.43
8
32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253 32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253
$5.99
9
27-3062 Screw for MiTM Pressure Washers 273062 27-3062 Screw for MiTM Pressure Washers 273062
$5.93
10
24-0240 Elbow-1/2Fnpt X #8Jic M Steel for AC1-HE02-05M by Mi-T-M 240240 24-0240 Elbow-1/2Fnpt X #8Jic M Steel for AC1-HE02-05M by Mi-T-M 240240
$35.00
11
24-0245 Pipe Nipple-1/2Npt X 5" Long for AC1-HE02-05M by Mi-T-M 240245 24-0245 Pipe Nipple-1/2Npt X 5" Long for AC1-HE02-05M by Mi-T-M 240245
$21.80
12
20-0537A18 PATCH PLATE BY MITM 20-0537A18 PATCH PLATE BY MITM
$7.43
13
22-0308 Safety Releif 1/2" 3500 W/Hb for AC1-HE02-05M by Mi-T-M 220308 22-0308 Safety Releif 1/2" 3500 W/Hb for AC1-HE02-05M by Mi-T-M 220308
$97.90
14
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020 15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
15
22-0310 ADJUSTABLE THERMOSTAT (303) BY MITM 22-0310 ADJUSTABLE THERMOSTAT (303) BY MITM
$71.55
16
24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241 24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241
$68.11
17
24-0255 Pipe Nipple-1/2Nptx7-1/2" Long for AC1-HE02-05M by Mi-T-M 240255 24-0255 Pipe Nipple-1/2Nptx7-1/2" Long for AC1-HE02-05M by Mi-T-M 240255
$33.09
18
24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243 24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243
$19.94
19
17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007 17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007
$17.83
20
20-0527A18 Bottom Wrap Assembly BY MITM 20-0527A18 Bottom Wrap Assembly BY MITM
$388.67
21
33-0346 Insulation Disc for AC1-HE02-05M by Mi-T-M 330346 33-0346 Insulation Disc for AC1-HE02-05M by Mi-T-M 330346
$45.32
22
850-0279 Insulation Blanket Hh Coil for AC1-HE02-05M by Mi-T-M 8500279 850-0279 Insulation Blanket Hh Coil for AC1-HE02-05M by Mi-T-M 8500279
$104.99
23
21-0129 TOP WRAP BY MITM 21-0129 TOP WRAP BY MITM
$187.73
24
33-0020 Edging *(Three Feet Required) for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 330020 33-0020 Edging *(Three Feet Required) for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 330020
$5.99
25
66-0014 Coil Assembly for AC1-HE02-05M by Mi-T-M 660014 66-0014 Coil Assembly for AC1-HE02-05M by Mi-T-M 660014
$1,577.83
26
33-0345 Insulation Drum Head for AC1-HE02-05M by Mi-T-M 330345 33-0345 Insulation Drum Head for AC1-HE02-05M by Mi-T-M 330345
$73.72
28
18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090 18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090
$20.32
29
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
30
29-0008 LOCKWASHER BY MITM 29-0008 LOCKWASHER BY MITM
$2.55
31
30-0006 Hex Nut for MiTM Pressure Washers 300006 30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
