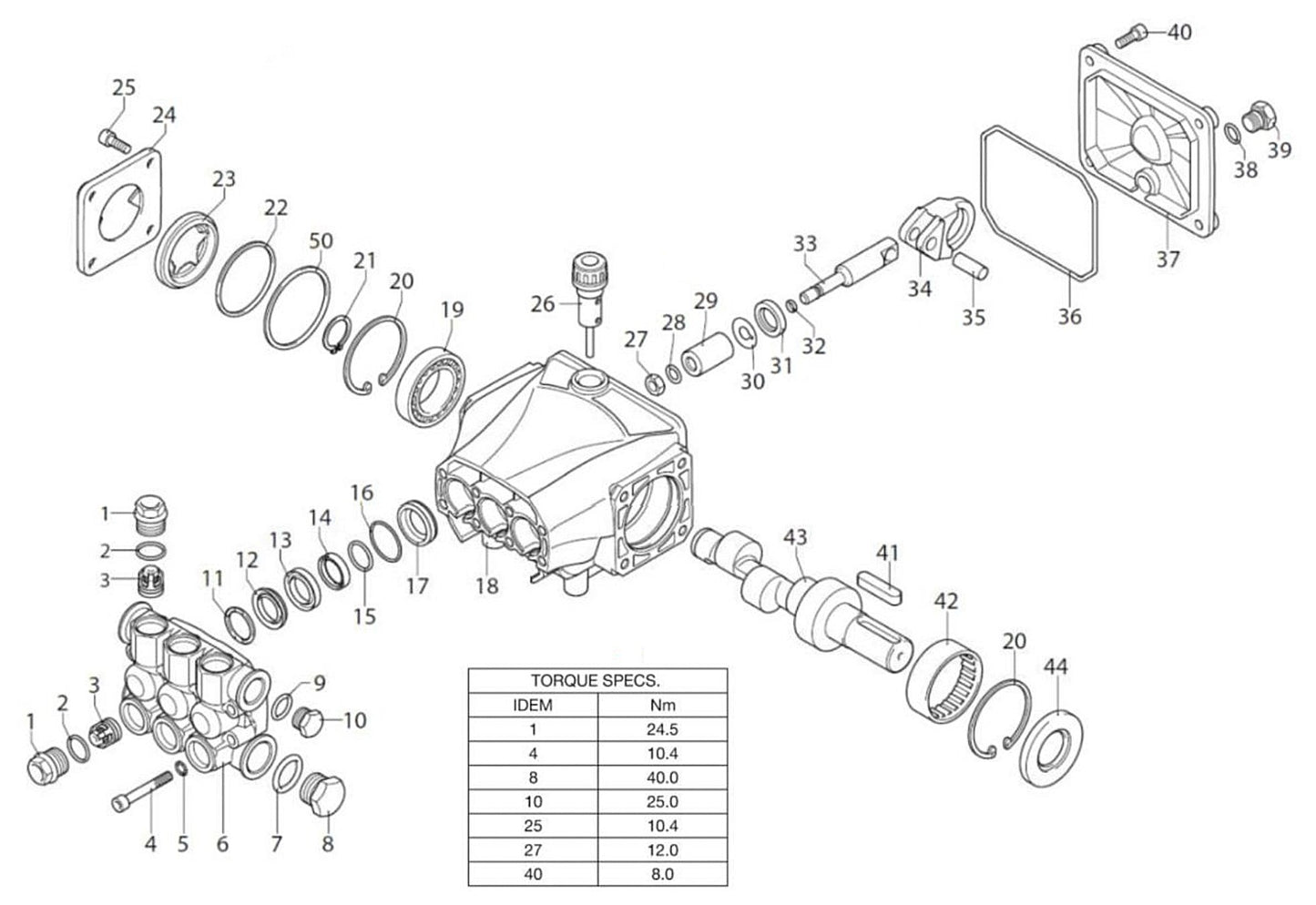

HHB-1002-0E1A, HHB-1003-0E1A, HHB-1502-0E1A, HHB-2503-0E2A, HHB-303-0E1A Series Pump Assembly Parts By MiTM

HHB-1002-0E1A, HHB-1003-0E1A, HHB-1502-0E1A, HHB-2503-0E2A, HHB-303-0E1A Series Pump Assembly Parts By MiTM

  • HHB-1002-0E1A, HHB-1003-0E1A, HHB-1502-0E1A, HHB-2503-0E2A, HHB-303-0E1A Series Pump Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
39-0241 Valve Plug for MiTM Pressure Washers 390241 39-0241 Valve Plug for MiTM Pressure Washers 390241
$116.70
2
25-0644 O-Ring 15.6 X 1.78Mm for MiTM Pressure Washers 250644 25-0644 O-Ring 15.6 X 1.78Mm for MiTM Pressure Washers 250644
$15.30
4
27-8406 Bolt for MiTM Pressure Washers 278406 27-8406 Bolt for MiTM Pressure Washers 278406
$18.42
5
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153 29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
7
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372 25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
8
39-0202 Plug for MiTM Pressure Washers by MiTM 390202 39-0202 Plug for MiTM Pressure Washers by MiTM 390202
$28.80
9
25-0510 O-Ring I.D. 14X1.75Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250510 25-0510 O-Ring I.D. 14X1.75Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250510
$7.28
10
39-0102 Plug Brass for AC1-HE02-05M by Mi-T-M 390102 39-0102 Plug Brass for AC1-HE02-05M by Mi-T-M 390102
$7.14
13
46-1457 PACKING RETAINER BY MITM 46-1457 PACKING RETAINER BY MITM
$39.83
16
25-0149 O-Ring 23.52 X 1.78Mm for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 250149 25-0149 O-Ring 23.52 X 1.78Mm for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 250149
$7.28
17
46-1458 RETAINER BY MITM 46-1458 RETAINER BY MITM
$31.05
19
48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063 48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063
$83.17
20
46-0676 Retaining Ring for AC1-HE02-05M by Mi-T-M 460676 46-0676 Retaining Ring for AC1-HE02-05M by Mi-T-M 460676
$7.40
21
46-0732 Pump Retainer for AC1-HE02-05M by Mi-T-M 460732 46-0732 Pump Retainer for AC1-HE02-05M by Mi-T-M 460732
$2.85
23
46-1452 Oil Indicator for MiTM Pressure Washers 461452 46-1452 Oil Indicator for MiTM Pressure Washers 461452
$83.43
24
46-1453 Crankcase Cover for MiTM Pressure Washers by MiTM 461453 46-1453 Crankcase Cover for MiTM Pressure Washers by MiTM 461453
$55.40
25
27-8888 Screw for MiTM Air Compressors by MiTM 278888 27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
26
39-0254 Oil Dipstick for MiTM Pressure Washers 390254 39-0254 Oil Dipstick for MiTM Pressure Washers 390254
$122.31
27
30-6016 Nut for MiTM Air Compressors by MiTM 306016 30-6016 Nut for MiTM Air Compressors by MiTM 306016
$8.75
28
26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187 26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187
$3.99
29
46-1459 PISTON (SEE KIT 70-0564) BY MITM 46-1459 PISTON (SEE KIT 70-0564) BY MITM
$101.25
30
28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027 28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027
$8.93
31
26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193 26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193
$22.85
32
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371 25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
35
46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721 46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721
$11.57
37
46-1455 Rear Cover for MiTM Pressure Washers 461455 46-1455 Rear Cover for MiTM Pressure Washers 461455
$202.37
38
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387 25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
39
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096 39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
40
27-8408 Hhcs-Tcei M6 X 16Mm Tapping for MiTM Pressure Washers by MiTM 278408 27-8408 Hhcs-Tcei M6 X 16Mm Tapping for MiTM Pressure Washers by MiTM 278408
$7.49
42
48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059 48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059
$87.81
44
26-0250 Oil Seal-25X52X7Mm for AC1-HE02-05M by Mi-T-M 260250 26-0250 Oil Seal-25X52X7Mm for AC1-HE02-05M by Mi-T-M 260250
$22.62
KIT
70-0563 Support Ring for MiTM Pressure Washers 700563 70-0563 Support Ring for MiTM Pressure Washers 700563
$61.17
KIT
70-0565 O-Rings (Inc. 7, 9, 22, 32, 36, 38; 3 Of 16; 6 Of 2) for MiTM Pressure Washers 700565 70-0565 O-Rings (Inc. 7, 9, 22, 32, 36, 38; 3 Of 16; 6 Of 2) for MiTM Pressure Washers 700565
$114.60
KIT
70-0581 WATER SEALS (INC. 3 OF 12, 14, 15, 16) BY MITM 70-0581 WATER SEALS (INC. 3 OF 12, 14, 15, 16) BY MITM
$91.13
KIT
70-0609 Valves (Inc. 6 Of 3) for MiTM Pressure Washers 700609 70-0609 Valves (Inc. 6 Of 3) for MiTM Pressure Washers 700609
$197.73
KIT
70-0728 OIL SEALS (INC. 44; 3 OF 31) BY MITM 70-0728 OIL SEALS (INC. 44; 3 OF 31) BY MITM
$20.93
KIT
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

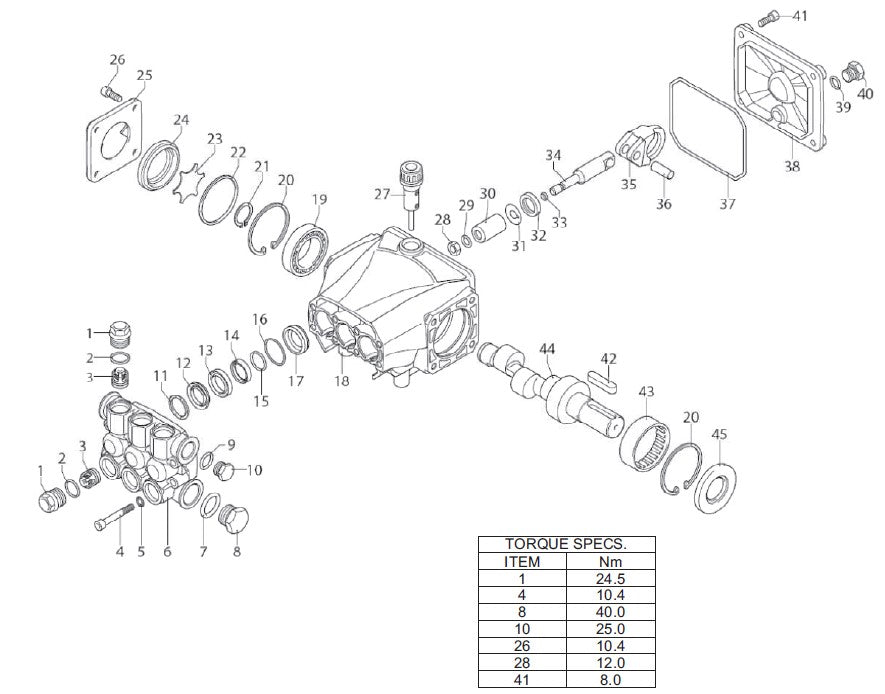

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
