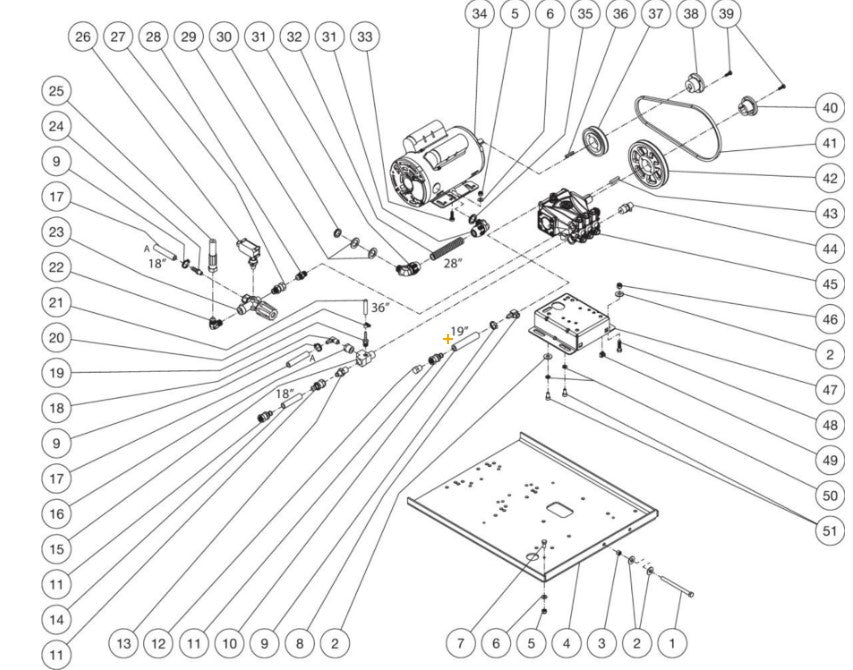

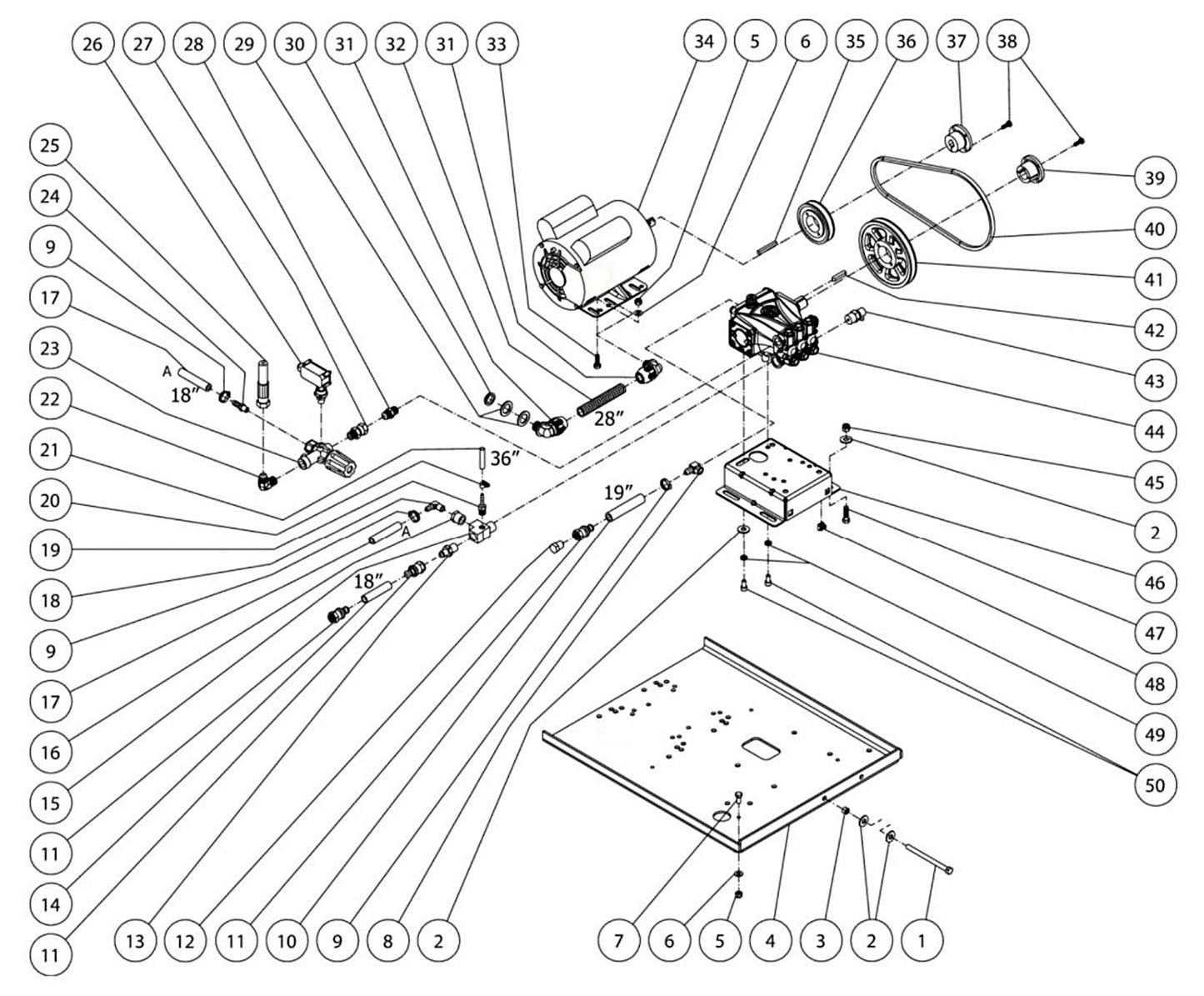

HHB-1002-0E1A, HHB-1003-0E1A, HHB-1003-0E1A, HHB-1502-0E1A, HHB-2503-0E2A, HHB-303-0E1A (sn:0-15152417) Series Motor//Pump Plate Assembly Parts By MiTM

HHB-1002-0E1A, HHB-1003-0E1A, HHB-1003-0E1A, HHB-1502-0E1A, HHB-2503-0E2A, HHB-303-0E1A (sn:0-15152417) Series Motor//Pump Plate Assembly Parts By MiTM

  • HHB-1002-0E1A, HHB-1003-0E1A, HHB-1003-0E1A, HHB-1502-0E1A, HHB-2503-0E2A, HHB-303-0E1A (sn:0-15152417) Series Motor//Pump Plate Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
27-0133 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270133 27-0133 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270133
$1.99
2
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
3
30-0006 Hex Nut BY MITM 30-0006 Hex Nut BY MITM
$0.68
4
5-0152A18 Baseplate BY MITM 5-0152A18 Baseplate BY MITM
$210.06
5
30-0157 Locknut for MiTM Pressure Washers 300157 30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
6
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003 28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
7
27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066 27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066
$1.99
8
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050 23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
9
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011 42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
10
15-0305 HOSE BY MITM 15-0305 HOSE BY MITM
$3.86
11
23-0360 HOSE BARB BY MITM 23-0360 HOSE BARB BY MITM
$7.02
12
23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411 23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411
$12.87
13
23-0361 Nipple 1/2M X 1/2M 45Deg Flare for AC1-HE02-05M by Mi-T-M 230361 23-0361 Nipple 1/2M X 1/2M 45Deg Flare for AC1-HE02-05M by Mi-T-M 230361
$9.54
14
15-0200 Hose 1/2" for AC1-HE02-05M by Mi-T-M 150200 15-0200 Hose 1/2" for AC1-HE02-05M by Mi-T-M 150200
$11.20
15
23-0388 23-0124 Street Tee Tapped for AC1-HE02-05M by Mi-T-M 230388 23-0388 23-0124 Street Tee Tapped for AC1-HE02-05M by Mi-T-M 230388
$36.69
16
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056 23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
17
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020 15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
18
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123 23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
19
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051 23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
20
42-0004 HOSE CLAMP BY MITM 42-0004 HOSE CLAMP BY MITM
$5.82
21
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021 15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
22
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092 24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
23
8-0361 Unloader W/O Chem Inj (Psi Tra for AC2-PH11-20M Air Compressor by Mi-T-M 80361 8-0361 Unloader W/O Chem Inj (Psi Tra for AC2-PH11-20M Air Compressor by Mi-T-M 80361
$184.59
24
23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230069 23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230069
$4.85
25
15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221 15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221
$40.69
26
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171 22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
27
24-0037 3/8Mnptx#8Jic Swivel for AC1-HE02-05M by Mi-T-M 240037 24-0037 3/8Mnptx#8Jic Swivel for AC1-HE02-05M by Mi-T-M 240037
$26.35
28
24-0002 Nipple 3/8M X #8Jic Hex -Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240002 24-0002 Nipple 3/8M X #8Jic Hex -Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240002
$6.10
29
28-0051 Washer for MiTM Pressure Washers 280051 28-0051 Washer for MiTM Pressure Washers 280051
$20.40
30
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108 32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
31
32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254 32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254
$9.43
32
32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253 32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253
$5.99
33
27-0067 Bolt for MiTM Pressure Washers 270067 27-0067 Bolt for MiTM Pressure Washers 270067
$5.93
34
2-0118 Motor 1.5 Hp Odp 115/208-230 V for AC1-HE02-05M by Mi-T-M 20118 2-0118 Motor 1.5 Hp Odp 115/208-230 V for AC1-HE02-05M by Mi-T-M 20118
$399.47
34
2-0120 Motor Assembly BY MITM 2-0120 Motor Assembly BY MITM
Call for Price call for price call for price
34
2-0107 Motor (HEG-1805/2004-0E2G) BY MITM 2-0107 Motor (HEG-1805/2004-0E2G) BY MITM
$1,150.61
35
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078 43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
36
10-0049 Sheave Ak39H for AC1-HR45-05M Air Compressor by Mi-T-M 100049 10-0049 Sheave Ak39H for AC1-HR45-05M Air Compressor by Mi-T-M 100049
$28.90
36
10-0111 MOTOR SHEAVE (1003) BY MITM 10-0111 MOTOR SHEAVE (1003) BY MITM
$29.64
36
10-0110 MOTOR SHEAVE (1003) BY MITM 10-0110 MOTOR SHEAVE (1003) BY MITM
$60.48
36
10-0105 Sheave Ak49H for AC1-HE02-05M by Mi-T-M 100105 10-0105 Sheave Ak49H for AC1-HE02-05M by Mi-T-M 100105
$30.51
36
10-0064 Sheave 2Ak59H (5.5 Pitch Dia) for AC2-PR09-30M Air Compressor by Mi-T-M 100064 10-0064 Sheave 2Ak59H (5.5 Pitch Dia) for AC2-PR09-30M Air Compressor by Mi-T-M 100064
$69.14
37
9-0037 Bushing D X 5/8 for AC1-HE02-05M by Mi-T-M 90037 9-0037 Bushing D X 5/8 for AC1-HE02-05M by Mi-T-M 90037
$19.22
37
9-0010 Bushing for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 90010 9-0010 Bushing for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 90010
$21.01
38
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015 27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
39
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017 9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
40
11-0023 Belt-Honda for MiTM Pressure Washers 110023 11-0023 Belt-Honda for MiTM Pressure Washers 110023
$61.31
40
11-0006 Cog Belt Ax36 for AC1-HE02-05M by Mi-T-M 110006 11-0006 Cog Belt Ax36 for AC1-HE02-05M by Mi-T-M 110006
$25.30
40
11-0006 Cog Belt Ax36 for AC1-HE02-05M by Mi-T-M 110006 11-0006 Cog Belt Ax36 for AC1-HE02-05M by Mi-T-M 110006
$25.30
40
11-0031 Cog Belt Ax35 for AC2-SV11-30M Air Compressor by Mi-T-M 110031 11-0031 Cog Belt Ax35 for AC2-SV11-30M Air Compressor by Mi-T-M 110031
$37.11
41
10-0103 Sheave Ak64H for AC1-HE02-05M by Mi-T-M 100103 10-0103 Sheave Ak64H for AC1-HE02-05M by Mi-T-M 100103
$26.89
41
10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007 10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007
$124.92
41
10-0066 Sheave Ak74H (7.0 Pitch Dia.) for MiTM Pressure Washers 100066 10-0066 Sheave Ak74H (7.0 Pitch Dia.) for MiTM Pressure Washers 100066
$81.86
41
10-0068 PUMP SHEAVE (2503) BY MITM 10-0068 PUMP SHEAVE (2503) BY MITM
$31.05
42
43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091 43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
$12.87
43
22-0414 HEAT DUMP VALVE BY MITM 22-0414 HEAT DUMP VALVE BY MITM
$14.45
44
3-0365 PUMP BY MITM 3-0365 PUMP BY MITM
$630.26
45
30-0159 LOCKNUT BY MITM 30-0159 LOCKNUT BY MITM
$0.68
46
5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18 5-0153A18 Pump Hat for MiTM Pressure Washers 50153A18
Call for Price call for price call for price
47
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118 27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
48
30-6025 CLIP NUT BY MITM 30-6025 CLIP NUT BY MITM
$3.24
49
29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054 29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054
$1.99
50
27-8884 Screw for MiTM Air Compressors by MiTM 278884 27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
