HHB (sn:15152418-99999999) Series Motor//Pump Plate Assembly Parts By MiTM

HHB (sn:15152418-99999999) Series Motor//Pump Plate Assembly Parts By MiTM

  • HHB (sn:15152418-99999999) Series Motor//Pump Plate Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
30-0006 Hex Nut BY MITM
$0.68
2
5-0152A18 Baseplate BY MITM
$210.06
3
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HH04-05M Air Compressor by Mi-T-M 230050
$15.94
4
15-0305 HOSE BY MITM
$3.86
5
23-0360 HOSE BARB BY MITM
$7.02
6
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
7
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
8
42-0004 HOSE CLAMP BY MITM
$5.82
9
23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230069
$4.85
10
28-0051 WASHER BY MITM
$10.20
11
2-0236 MOTOR (1003-2E1G) BY MITM
$492.75
12
2-0207 Motor (2004 Single Phase) for MiTM Pressure Washers 20207
$2,119.05
13
26-0443 GASKET BY MITM
$13.77
14
43-0166 Key (2004) for MiTM Pressure Washers 430166
$35.67
15
10-0049 Sheave Ak39H for AC1-HR45-05M Air Compressor by Mi-T-M 100049
$28.90
16
10-0111 MOTOR SHEAVE (1003) BY MITM
$29.64
17
10-0110 MOTOR SHEAVE (1003) BY MITM
$60.48
18
10-0064 Sheave 2Ak59H (5.5 Pitch Dia) for AC2-PR09-30M Air Compressor by Mi-T-M 100064
$69.14
19
11-0023 Belt-Honda for MiTM Pressure Washers 110023
$61.31
20
11-0031 Cog Belt Ax35 for AC2-SV11-30M Air Compressor by Mi-T-M 110031
$37.11
21
10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007
$124.92
22
10-0066 Sheave Ak74H (7.0 Pitch Dia.) for MiTM Pressure Washers 100066
$81.86
23
10-0068 PUMP SHEAVE (2503) BY MITM
$31.05
24
22-0414 HEAT DUMP VALVE BY MITM
$14.45
25
3-0365 PUMP BY MITM
$630.26
26
30-0159 LOCKNUT BY MITM
$0.68
27
5-0153A18 Pump Hat BY MITM
$34.43
28
30-6025 CLIP NUT BY MITM
$7.13
29
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

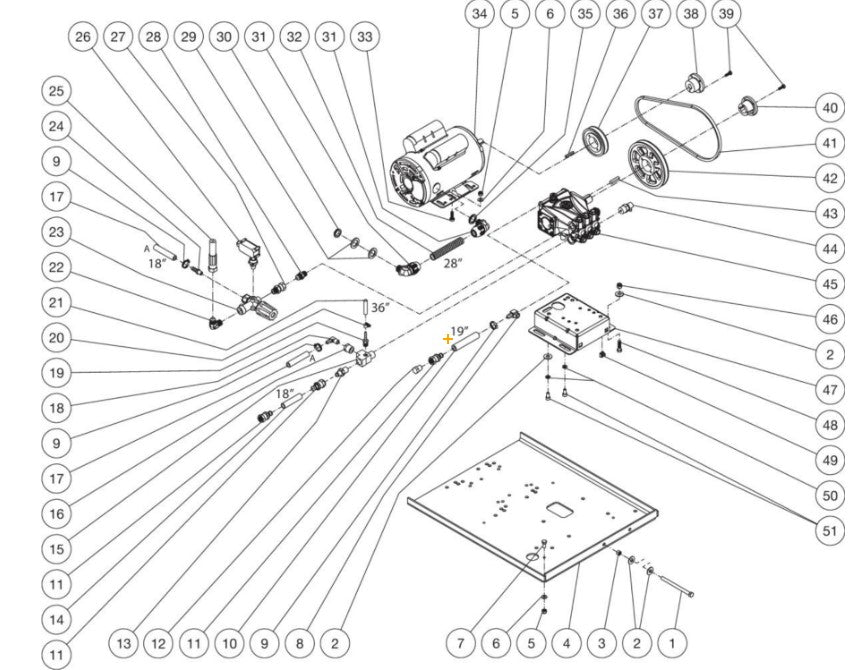

How do I use this diagram?
