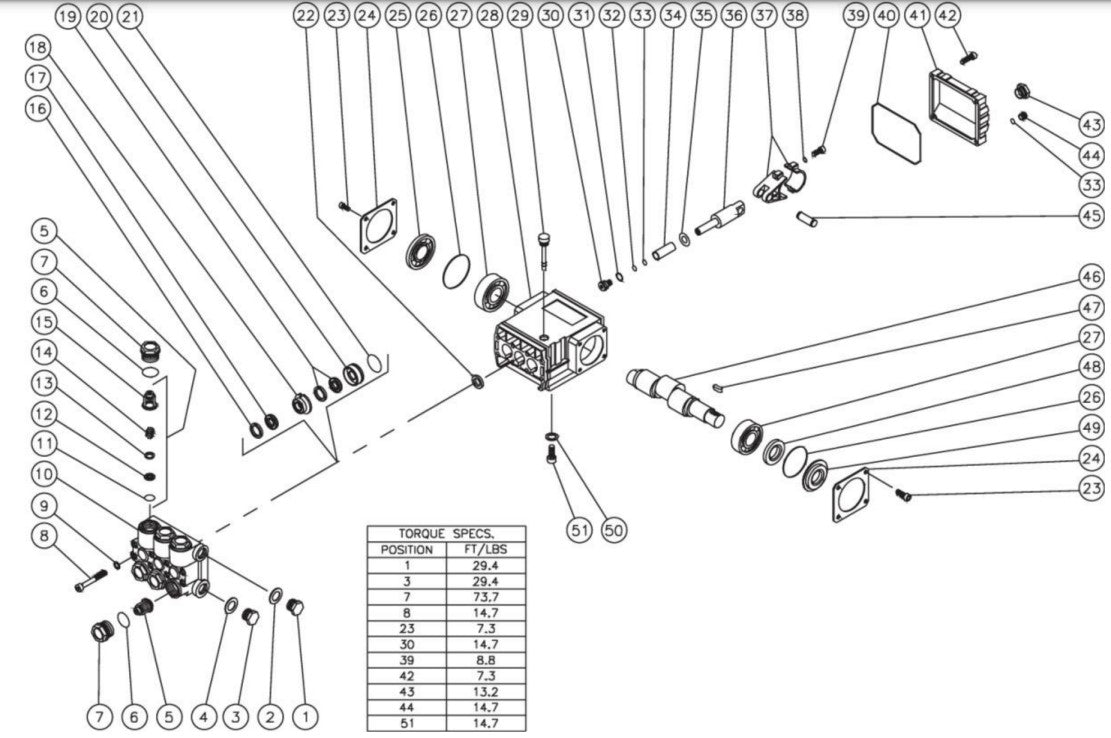

HHD-1002-0E1G, HHD-1003-0E1G Pump Assembly Parts By MiTM

HHD-1002-0E1G, HHD-1003-0E1G Pump Assembly Parts By MiTM

  • HHD-1002-0E1G, HHD-1003-0E1G Pump Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018 39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
2
28-0600 Washer for MiTM Pressure Washers by MiTM 280600 28-0600 Washer for MiTM Pressure Washers by MiTM 280600
$39.59
3
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019 39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
4
28-0601 Washer for MiTM Pressure Washers 280601 28-0601 Washer for MiTM Pressure Washers 280601
$85.11
6
25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012 25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012
$1.99
7
39-0020 Plug/Valve for AC1-HE15-05M Air Compressor by Mi-T-M 390020 39-0020 Plug/Valve for AC1-HE15-05M Air Compressor by Mi-T-M 390020
$45.24
8
27-8439 Bolt for MiTM Pressure Washers by MiTM 278439 27-8439 Bolt for MiTM Pressure Washers by MiTM 278439
$12.75
9
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154 29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
10
46-0083 Pump Manifold for MiTM Pressure Washers 460083 46-0083 Pump Manifold for MiTM Pressure Washers 460083
$1,940.03
18
46-0089 Intermediate Ring for MiTM Pressure Washers 460089 46-0089 Intermediate Ring for MiTM Pressure Washers 460089
$63.59
20
46-0081 Low Pressure Seal Retainer for MiTM Pressure Washers 460081 46-0081 Low Pressure Seal Retainer for MiTM Pressure Washers 460081
$48.18
21
25-0048 O-Ring 1-1/4 X 1-3/8 for MiTM Pressure Washers 250048 25-0048 O-Ring 1-1/4 X 1-3/8 for MiTM Pressure Washers 250048
$7.49
22
26-0046 Oil Seal (See Kit 70-0391) for MiTM Pressure Washers by MiTM 260046 26-0046 Oil Seal (See Kit 70-0391) for MiTM Pressure Washers by MiTM 260046
$46.08
23
27-8000 Bolt for MiTM Pressure Washers 278000 27-8000 Bolt for MiTM Pressure Washers 278000
$5.93
24
46-0084 Retainer/Oil Level/Spacer for AC1-HE15-04M Air Compressor by Mi-T-M 460084 46-0084 Retainer/Oil Level/Spacer for AC1-HE15-04M Air Compressor by Mi-T-M 460084
$21.98
25
46-0088 Spacer for MiTM Pressure Washers 460088 46-0088 Spacer for MiTM Pressure Washers 460088
$60.08
26
25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE15-04M Air Compressor by Mi-T-M 250060 25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE15-04M Air Compressor by Mi-T-M 250060
$8.44
27
48-0011 Bear Ball .6305 25 X 62 X 17 for AC1-HE15-04M Air Compressor by Mi-T-M 480011 48-0011 Bear Ball .6305 25 X 62 X 17 for AC1-HE15-04M Air Compressor by Mi-T-M 480011
$91.85
28
46-0225 Crankcase for MiTM Pressure Washers 460225 46-0225 Crankcase for MiTM Pressure Washers 460225
Call for Price call for price call for price
29
46-0143 Dipstick for AC1-HE15-04M Air Compressor by Mi-T-M 460143 46-0143 Dipstick for AC1-HE15-04M Air Compressor by Mi-T-M 460143
$27.70
30
46-0069 Nut/Piston for AC1-HH04-05M Air Compressor by Mi-T-M 460069 46-0069 Nut/Piston for AC1-HH04-05M Air Compressor by Mi-T-M 460069
$26.59
31
28-0400 Washer/Gasket for MiTM Pressure Washers 280400 28-0400 Washer/Gasket for MiTM Pressure Washers 280400
$18.30
32
25-0014 O-Ring 7/16 X 9/16 for AC1-HH04-05M Air Compressor by Mi-T-M 250014 25-0014 O-Ring 7/16 X 9/16 for AC1-HH04-05M Air Compressor by Mi-T-M 250014
$1.99
33
46-0109 Teflon Back-Up Ring for MiTM Pressure Washers 460109 46-0109 Teflon Back-Up Ring for MiTM Pressure Washers 460109
$8.93
34
46-0078 Plunger-Ceramic for MiTM Pressure Washers 460078 46-0078 Plunger-Ceramic for MiTM Pressure Washers 460078
$281.21
35
46-0146 Slinger Washer for AC1-HH04-05M Air Compressor by Mi-T-M 460146 46-0146 Slinger Washer for AC1-HH04-05M Air Compressor by Mi-T-M 460146
$5.99
36
46-0080 Piston Rod for MiTM Pressure Washers 460080 46-0080 Piston Rod for MiTM Pressure Washers 460080
$165.11
37
46-0077 Connecting Rod for MiTM Pressure Washers 460077 46-0077 Connecting Rod for MiTM Pressure Washers 460077
$204.75
38
28-0201 Washer for MiTM Pressure Washers 280201 28-0201 Washer for MiTM Pressure Washers 280201
$7.65
39
27-8405 Bolt for MiTM Pressure Washers 278405 27-8405 Bolt for MiTM Pressure Washers 278405
$20.40
40
26-0081 Gasket Cover - Old Style for MiTM Pressure Washers 260081 26-0081 Gasket Cover - Old Style for MiTM Pressure Washers 260081
$119.94
40
25-0317 O-Ring for MiTM Pressure Washers 250317 25-0317 O-Ring for MiTM Pressure Washers 250317
$27.60
41
46-0085 Crankcase Cover - Old Style for MiTM Pressure Washers 460085 46-0085 Crankcase Cover - Old Style for MiTM Pressure Washers 460085
$202.04
41
46-0226 Crankcase Cover - New Style for MiTM Pressure Washers 460226 46-0226 Crankcase Cover - New Style for MiTM Pressure Washers 460226
$196.37
42
27-8401 Bolt for MiTM Air Compressors by MiTM 278401 27-8401 Bolt for MiTM Air Compressors by MiTM 278401
$7.49
43
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114 46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
44
39-0017 Plug/Hex for AC1-HE15-04M Air Compressor by Mi-T-M 390017 39-0017 Plug/Hex for AC1-HE15-04M Air Compressor by Mi-T-M 390017
$19.87
45
43-0031 Connecting Rod Pin for MiTM Pressure Washers 430031 43-0031 Connecting Rod Pin for MiTM Pressure Washers 430031
$45.87
46
46-0230 Crankshaft for MiTM Pressure Washers 460230 46-0230 Crankshaft for MiTM Pressure Washers 460230
$672.47
47
43-0028 Key 25 X 8 X 7 for AC1-HE15-04M Air Compressor by Mi-T-M 430028 43-0028 Key 25 X 8 X 7 for AC1-HE15-04M Air Compressor by Mi-T-M 430028
$12.31
48
26-0048 Seal Oil for AC1-HE15-04M Air Compressor by Mi-T-M 260048 26-0048 Seal Oil for AC1-HE15-04M Air Compressor by Mi-T-M 260048
$27.85
49
46-0087 Spacer Bearing for AC1-HE15-04M Air Compressor by Mi-T-M 460087 46-0087 Spacer Bearing for AC1-HE15-04M Air Compressor by Mi-T-M 460087
$27.06
50
46-0605 Lockwasher for MiTM Pressure Washers 460605 46-0605 Lockwasher for MiTM Pressure Washers 460605
$4.41
51
46-0606 Bolt for MiTM Pressure Washers 460606 46-0606 Bolt for MiTM Pressure Washers 460606
$7.65
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009 70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
70-0040 Packing Kit (Inc. 3 Each 17, 19) for MiTM Pressure Washers 700040 70-0040 Packing Kit (Inc. 3 Each 17, 19) for MiTM Pressure Washers 700040
$226.62
-
852-0012 Packing Kit (Inc. 3 Each 16, 17, 19, 21) for MiTM Pressure Washers 8520012 852-0012 Packing Kit (Inc. 3 Each 16, 17, 19, 21) for MiTM Pressure Washers 8520012
$276.35
-
70-0032 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700032 70-0032 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700032
$67.86
