HHM-3506-0E10 Frame Assembly Parts By MiTM

HHM-3506-0E10 Frame Assembly Parts By MiTM

  • HHM-3506-0E10 Frame Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
2
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194 15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
3
24-0010 Nipple 3/8" Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240010 24-0010 Nipple 3/8" Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240010
$7.97
4
22-0348 FLOW SWITCH BY MITM 22-0348 FLOW SWITCH BY MITM
$107.19
5
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005 17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
6
24-0274 FITTING BY MITM 24-0274 FITTING BY MITM
$42.39
7
17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007 17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007
$17.83
10
28-0030 Washer for MiTM Pressure Washers 280030 28-0030 Washer for MiTM Pressure Washers 280030
$7.65
11
29-0008 LOCKWASHER BY MITM 29-0008 LOCKWASHER BY MITM
$2.55
12
27-0121 Bolt for ABS Air Compressor by Mi-T-M 270121 27-0121 Bolt for ABS Air Compressor by Mi-T-M 270121
$1.99
13
28-0002 Washer for MiTM Pressure Washers 280002 28-0002 Washer for MiTM Pressure Washers 280002
$5.93
14
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006 29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
15
27-0019 Bolt for ABS Air Compressor by Mi-T-M 270019 27-0019 Bolt for ABS Air Compressor by Mi-T-M 270019
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

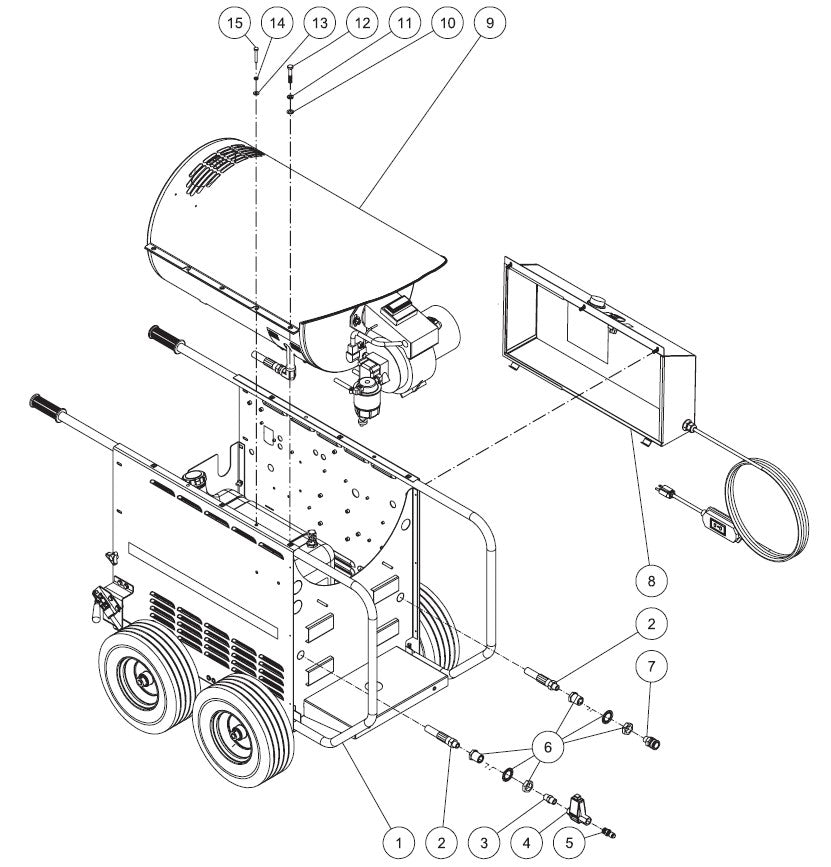

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
