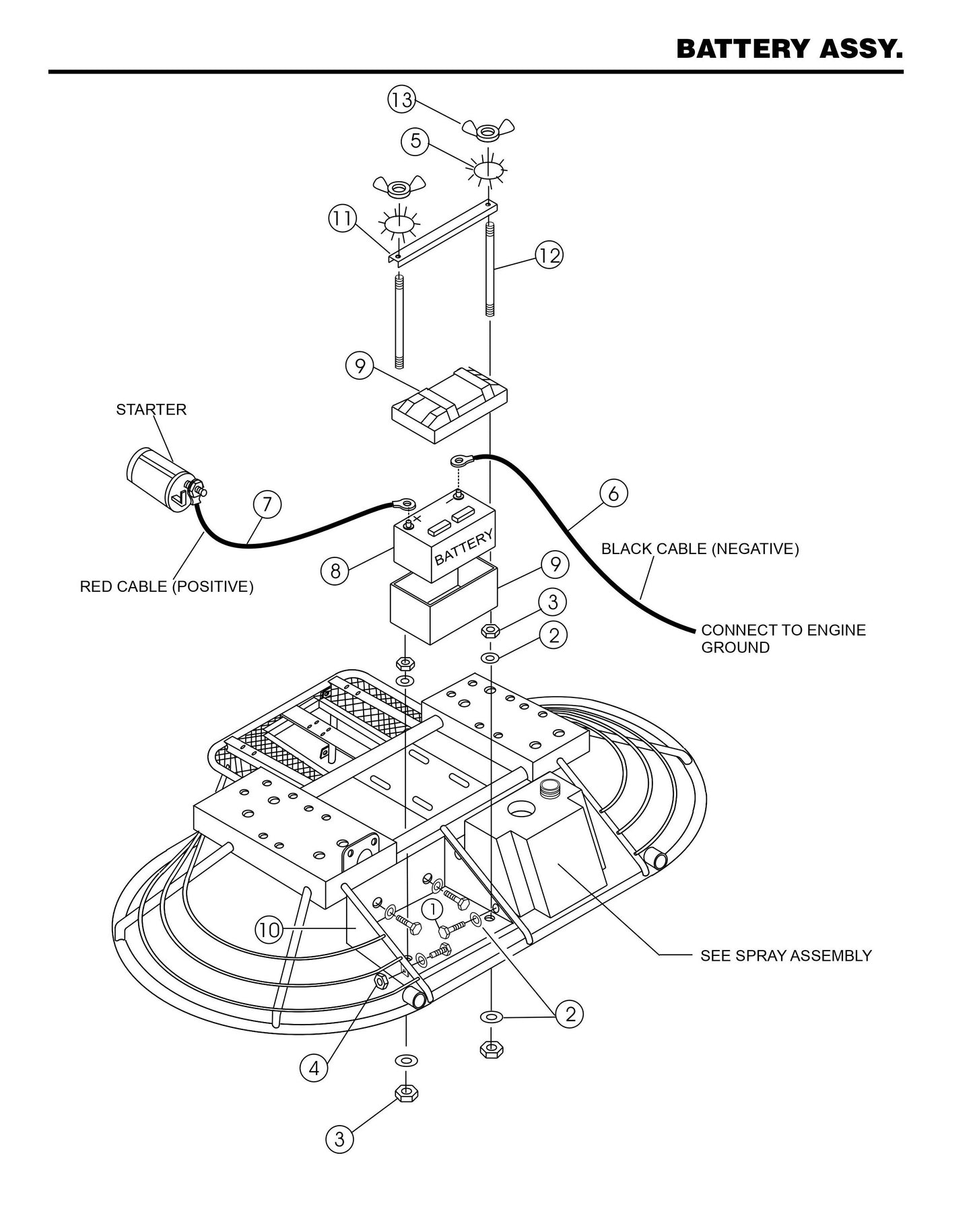

HHN31VTCSL5 Battery Assembly

HHN31VTCSL5 Battery Assembly

  • HHN31VTCSL5 Battery Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
0949 Hex Finish Nut 1/4-20 for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
5
10031 Ext. Shkp. Washer 1/4” for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
6
10313 Cable, Neg Battery Black 20 for HTH44T Walk Behind Trowels by Multiquip Whiteman
$37.63
8
10315 Battery, 12V Wet Group 22 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$229.32
10
11362 Battery Frame Box for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$135.64
11
11692 Bracket, Battery Box Hold Down for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$17.17
12
11693 Bolt Battery Bracket for HTH44T Walk Behind Trowels by Multiquip Whiteman
$16.52
13
2509 Nut, Wing 1/4-20 Plated for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
1
0730 Screw, Hhc 1/4 - 20 X 1 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
2
0948 Flat Washer 1/4 " for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
4
10024 Nut, Nyloc 1/4 20 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
7
19303 Cable, Pos Battery Red 48” for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$55.82
9
10318 Battery Box, Group 24, W/Lid for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$28.44
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
