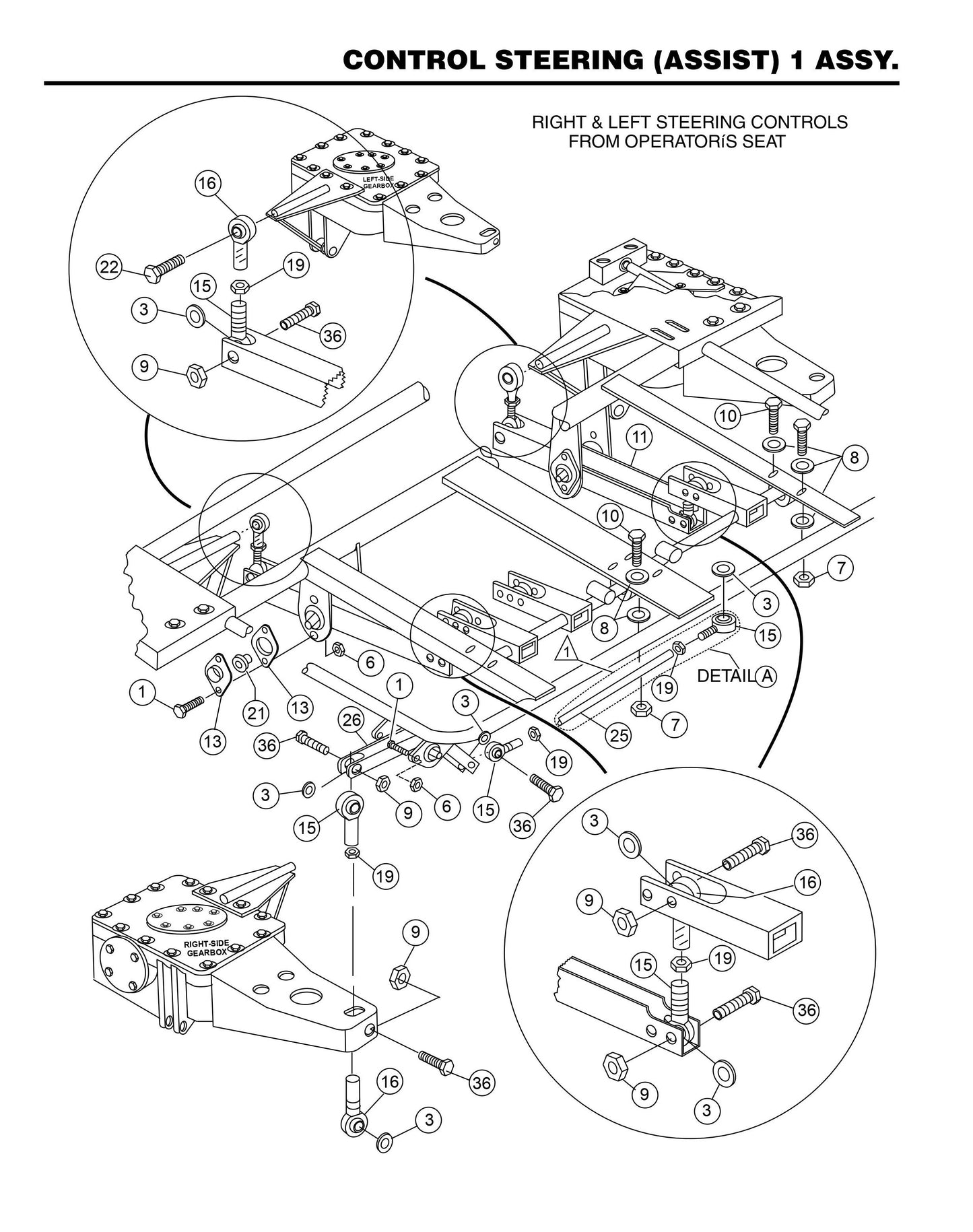

HHN31VTCSL5 Control Steering (Assist) 1 Assembly

HHN31VTCSL5 Control Steering (Assist) 1 Assembly

  • HHN31VTCSL5 Control Steering (Assist) 1 Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
0131 A Screw, Hhc 1/4 - 20 X 3/4 for HHN34TVD Mechanical ride on power trowels by Multiquip Whiteman
$4.39
3
0447 Washer, Flat 1/2 Sae for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
11
11127 Lever, Steering Control W/A for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$116.81
13
11139 Bearing, Flange Housing 40M-2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$8.77
14
11141 Spacer, Rod End for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$5.37
15
11142 Rod End, 1/2- 20 Male Rh for HTH44T Walk Behind Trowels by Multiquip Whiteman
$51.27
16
11143 Rod End, 1/2-20 Female Rh for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$18.88
19
11146 Nut, Hex Jam 1/2-20 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
21
11150 Bearing, Sb-201-8 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$38.18
22
22135 Screw, Hhc 1/2-20 X 1.1/2” for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
25
11172 Rod, L/R Motion for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$13.32
26
12193 Lever, L/R Control W/A for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$131.28
36
6159 A Screw, Hhc 1/2-13 X 2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
6
10024 Nut, Nyloc 1/4 - 20 for HHN34TVD Mechanical ride on power trowels by Multiquip Whiteman
$4.39
7
10133 Nut, Nyloc 3/8 - 16 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
8
10136 Washer, Flat 3/8 Sae for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
9
10176 Nut, Nyloc 1/2-13 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$5.99
10
1023 Screw, Hhc 3/8-16 X 1 1/4 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
View full details
