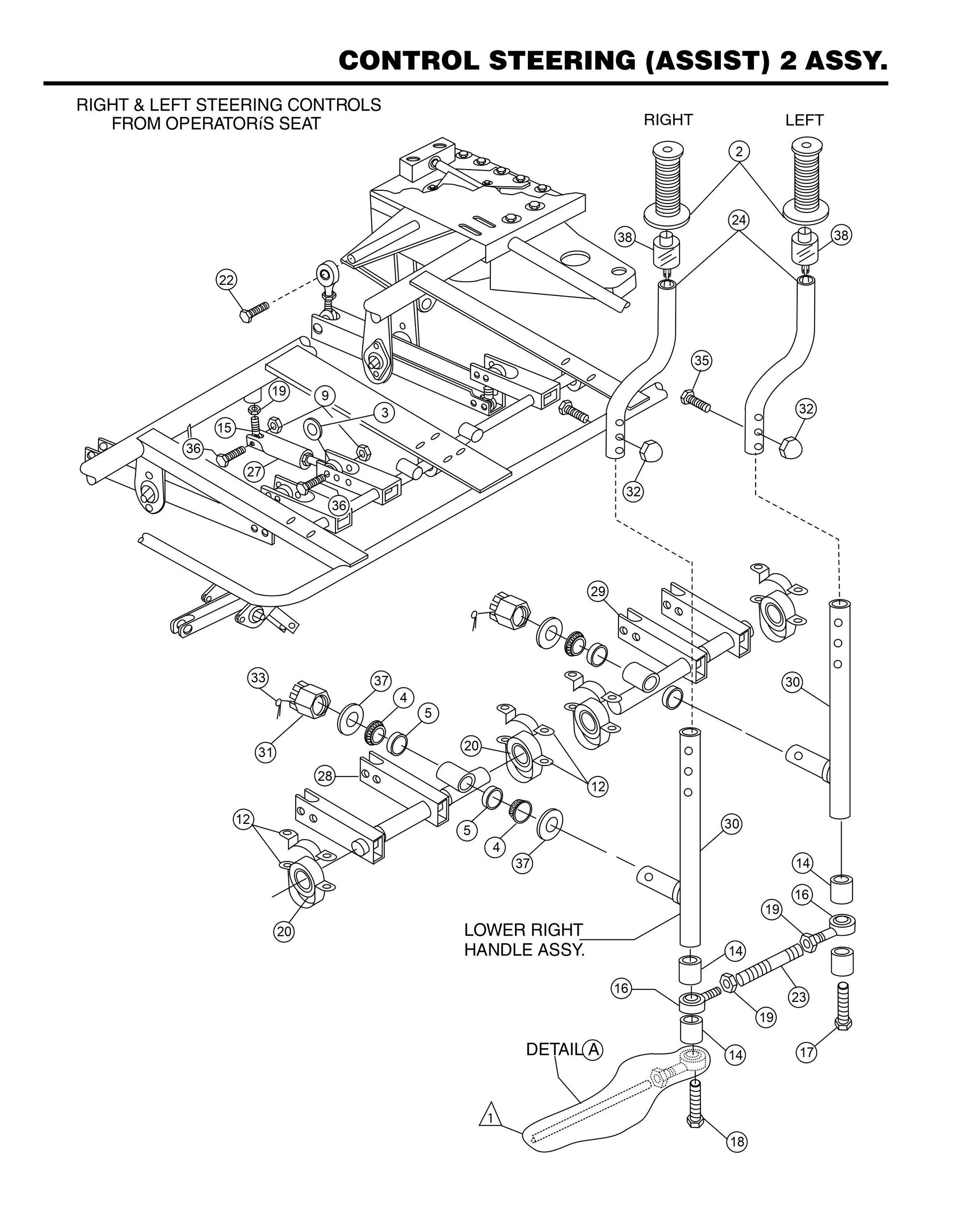

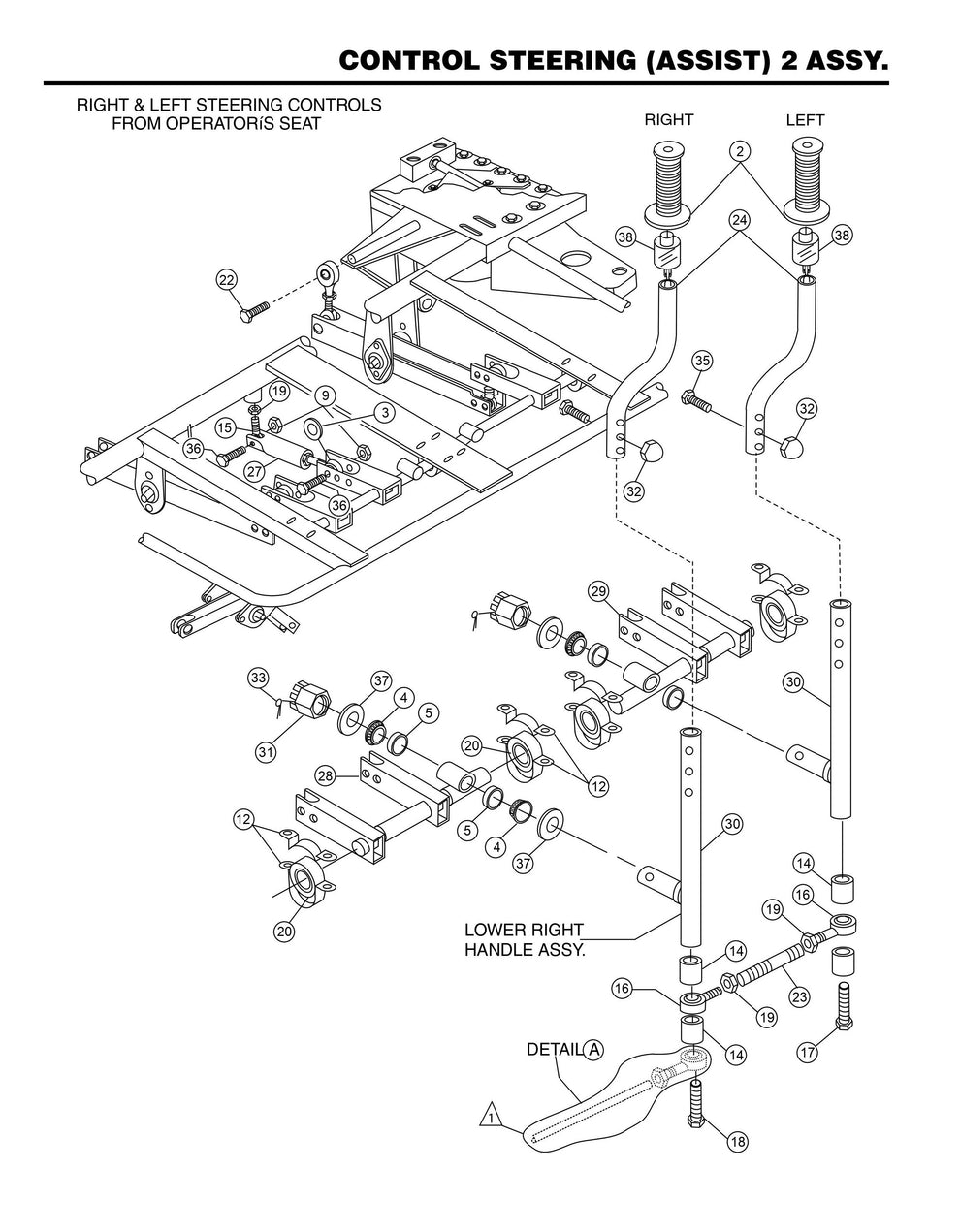

HHN31VTCSL5 Control Steering (Assist) 2 Assembly

HHN31VTCSL5 Control Steering (Assist) 2 Assembly

  • HHN31VTCSL5 Control Steering (Assist) 2 Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2267 Grip Handle, Left-Right for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.87
3
0447 Washer, Flat 1/2 Sae for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
5
0735 A Bearing, Cup, Timken #A6157 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$12.06
12
11138 Bearing, P-Block Housing 47Mpb for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$20.67
14
11141 Spacer, Rod End for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$5.37
15
11142 Rod End, 1/2- 20 Male Rh for HTH44T Walk Behind Trowels by Multiquip Whiteman
$51.27
16
11143 Rod End, 1/2-20 Female Rh for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$18.88
17
11144 Screw, Shc 1/2-20 X 2 Pltd for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$8.82
18
11145 Screw. Shc 1/2-20 X 3 Pltd for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$1.82
19
11146 Nut, Hex Jam 1/2-20 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
22
22135 Screw, Hhc 1/2-20 X 1.1/2” for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
23
11173 Threadpiece, 1/2-20 X 2 Pltd for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$2.49
24
11177 Handle Tube, Upper for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$32.10
27
12200 Assist Asm, Steering Spring for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$251.78
28
12904 Steering Control W/A Rs Assist for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$217.84
29
12903 Steering Control W/A Ls Assist for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$206.00
30
12425 Handle , Lower W/A for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$93.00
31
12426 Nut, Slotted 3/4-16 Plated for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$3.32
35
5277 Screw, Hhc 1/4-20 X 1 1/2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
36
6159 A Screw, Hhc 1/2-13 X 2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
37
8151 Flat Washer 3/4" Sae for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$41.24
38
11430 Switch, Pushbutton for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$176.42
4
0735 Bearing, Cone, Timken #A6075 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$29.07
8
10136 Washer, Flat 3/8 Sae for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
9
10176 Nut, Nyloc 1/2-13 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$5.99
20
11149 Bearing, Sb-204-12 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$38.18
32
2197 Nut, Acorn 1/4-20 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
33
2219 Pin, Cotter 1/8 X 1 1/2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$59.73
