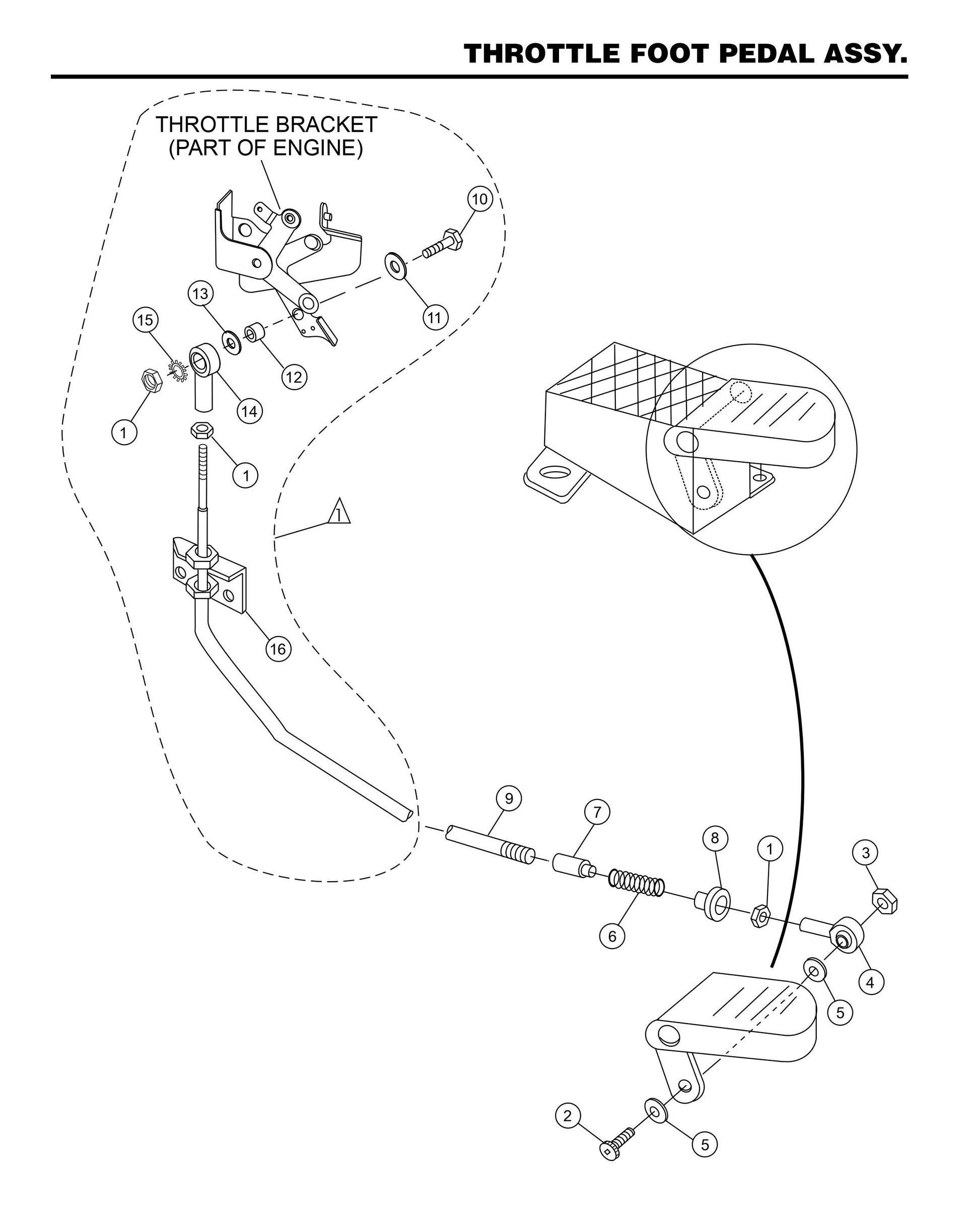

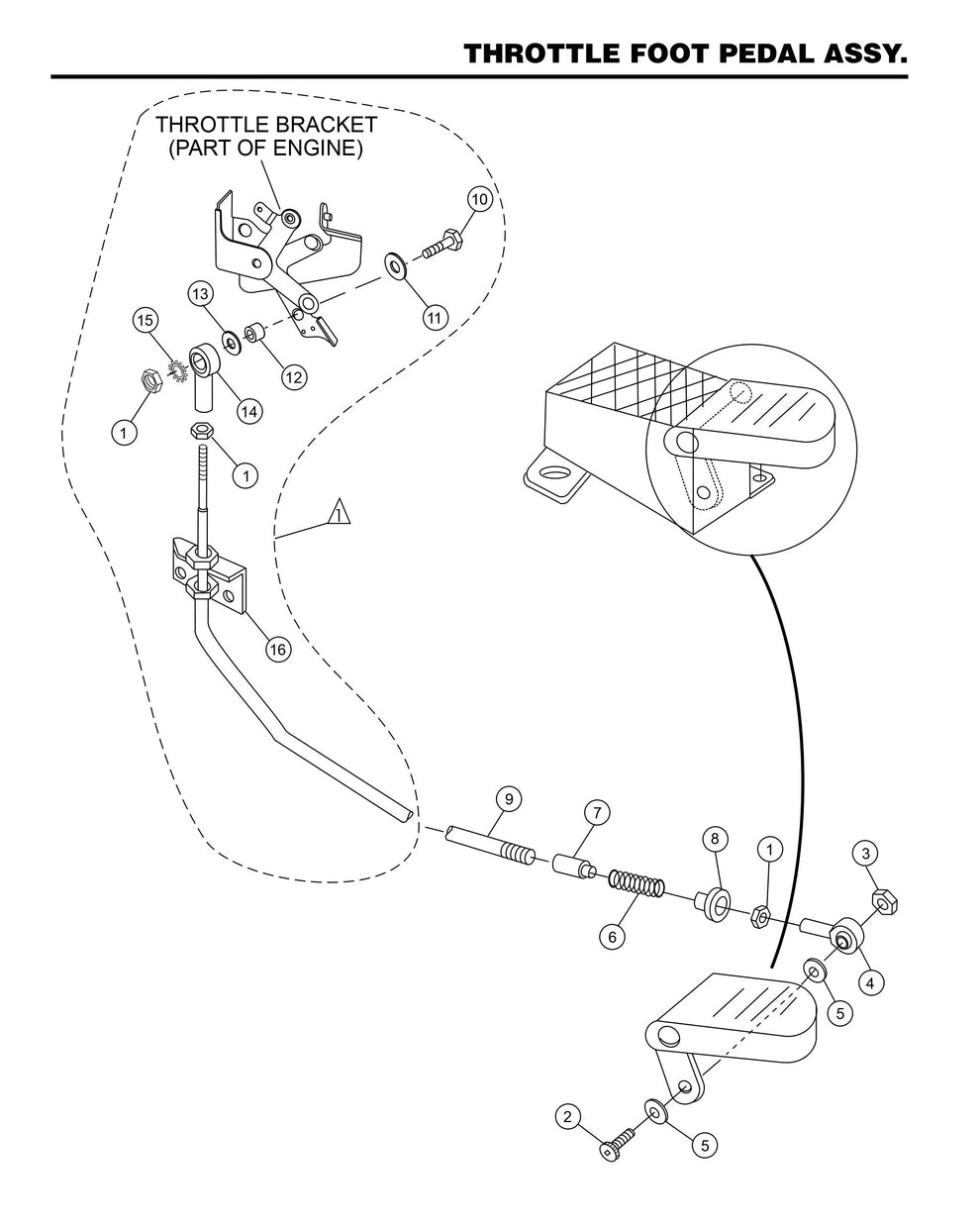

HHN31VTCSL5 Throttle Foot Pedal Assembly

HHN31VTCSL5 Throttle Foot Pedal Assembly

  • HHN31VTCSL5 Throttle Foot Pedal Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
0937 Hex Nut 10- 32 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
2
10018 Screw, Shc 10-32X1 No Plate for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
4
2153 Rod End, 10-32 Female Rh for HTX44K4 K5 Y4 Y5 Walk Behind Trowels by Multiquip Whiteman
$10.63
14
2153 Rod End, 10-32 Female Rh for HTX44K4 K5 Y4 Y5 Walk Behind Trowels by Multiquip Whiteman
$10.63
5
2203 Flat Washer #10 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
11
2203 Flat Washer #10 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
6
2753 Spring, Throttle Return, Lower for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$26.85
7
2754 Adaptor, Throttle Ret. Spring Lg. for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$29.49
8
2755 Adaptor, Throttle Ret. Spring Shor for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$5.90
9
2124 Cable, Throttle (Rt) for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$150.46
12
11710 Spacer, Engine Throttle for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$7.11
16
11771 Bracket, Engine Throttle Cable for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$26.14
3
10019 Nut, Nyloc 10-32 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
10
8133 Screw, Rhm 10-32 X 3/4 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
13
0300 B Washer, Flat, 5/16 Sae for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
15
10237 Washer, Ext. Shkp, 5/16? for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
