HHS-1003-2E1G, HHS-2004-2E2A/2E2G/2E8G, HHS-3004-2E2A/2E2G/2E8G, HHS-3005-2E2G/2E8G (sn:15152418-99999999) Electric Box Assembly Parts By MiTM

HHS-1003-2E1G, HHS-2004-2E2A/2E2G/2E8G, HHS-3004-2E2A/2E2G/2E8G, HHS-3005-2E2G/2E8G (sn:15152418-99999999) Electric Box Assembly Parts By MiTM

  • HHS-1003-2E1G, HHS-2004-2E2A/2E2G/2E8G, HHS-3005-2E2G/2E8G (sn:15152418-99999999) Electric Box Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
5-0337A18 CHASSIS BY MITM 5-0337A18 CHASSIS BY MITM
$381.32
2
32-0586 Strain Relief 3/8 for AC1-HE02-05M by Mi-T-M 320586 32-0586 Strain Relief 3/8 for AC1-HE02-05M by Mi-T-M 320586
$5.99
3
32-0587 Locknut 3/8 Electrical for AC1-PE03-20M Air Compressor by Mi-T-M 320587 32-0587 Locknut 3/8 Electrical for AC1-PE03-20M Air Compressor by Mi-T-M 320587
$4.85
5
32-0463 Terminal Strip 20 Amp 22 Pole for AC1-PH65-20M Air Compressor by Mi-T-M 320463 32-0463 Terminal Strip 20 Amp 22 Pole for AC1-PH65-20M Air Compressor by Mi-T-M 320463
$40.16
6
27-8835 Screw for MiTM Pressure Washers by MiTM 278835 27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
7
27-8807 Bolt for MiTM Pressure Washers by MiTM 278807 27-8807 Bolt for MiTM Pressure Washers by MiTM 278807
$4.49
8
30-6001 Nut for MiTM Pressure Washers by MiTM 306001 30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
9
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009 28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
10
32-0313 Transformer-200-480V To 24Volt for AC1-PH65-08M Air Compressor by Mi-T-M 320313 32-0313 Transformer-200-480V To 24Volt for AC1-PH65-08M Air Compressor by Mi-T-M 320313
Call for Price call for price call for price
10
32-0324 TRANSFORMER-120/240 TO 24VOLTS BY MITM 32-0324 TRANSFORMER-120/240 TO 24VOLTS BY MITM
$273.33
10
32-0735 Transformer 100Va for MiTM Pressure Washers 320735 32-0735 Transformer 100Va for MiTM Pressure Washers 320735
$404.00
11
32-0467 Fuse 0.5A for AC1-PH65-20M Air Compressor by Mi-T-M 320467 32-0467 Fuse 0.5A for AC1-PH65-20M Air Compressor by Mi-T-M 320467
$43.71
12
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316 32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
12
32-0316 Din Rail-3Ft Section for AC1-PH65-20M Air Compressor by Mi-T-M 320316 32-0316 Din Rail-3Ft Section for AC1-PH65-20M Air Compressor by Mi-T-M 320316
$33.74
13
28-0001 Washer for MiTM Pressure Washers 280001 28-0001 Washer for MiTM Pressure Washers 280001
$5.93
14
32-0490 Overload Relay 45-60A for MiTM Pressure Washers 320490 32-0490 Overload Relay 45-60A for MiTM Pressure Washers 320490
$372.38
14
32-0485 Overload Relay 35-47 for AC1-PR06-08M Air Compressor by Mi-T-M 320485 32-0485 Overload Relay 35-47 for AC1-PR06-08M Air Compressor by Mi-T-M 320485
$150.05
14
32-1073 OVERLOAD RELAY 25 - 36 AMP (2004-0E8G) BY MITM 32-1073 OVERLOAD RELAY 25 - 36 AMP (2004-0E8G) BY MITM
$105.51
14
32-0482 Overload Relay (Cx-0111) for MiTM Pressure Washers by MiTM 320482 32-0482 Overload Relay (Cx-0111) for MiTM Pressure Washers by MiTM 320482
$122.18
15
32-0598 Contactor for MiTM Pressure Washers by MiTM 320598 32-0598 Contactor for MiTM Pressure Washers by MiTM 320598
$322.86
15
32-0480 CONTACTOR (3005-0E8G) BY MITM 32-0480 CONTACTOR (3005-0E8G) BY MITM
$255.09
15
32-0328 Contactor - 40Amp (3004-0Me1) for MiTM Pressure Washers by MiTM 320328 32-0328 Contactor - 40Amp (3004-0Me1) for MiTM Pressure Washers by MiTM 320328
$271.08
15
32-0329 Contactor - 24Amp (2004-0Me3) for MiTM Pressure Washers by MiTM 320329 32-0329 Contactor - 24Amp (2004-0Me3) for MiTM Pressure Washers by MiTM 320329
$162.65
16
32-1172 TIMER SWITCH BY MITM 32-1172 TIMER SWITCH BY MITM
$128.73
17
28-0002 Washer for MiTM Pressure Washers by MiTM 280002 28-0002 Washer for MiTM Pressure Washers by MiTM 280002
$5.93
18
27-0017 Bolt for MiTM Pressure Washers by MiTM 270017 27-0017 Bolt for MiTM Pressure Washers by MiTM 270017
$4.49
19
32-0473 Fuse Holder Enclosed for AC1-PH65-20M Air Compressor by Mi-T-M 320473 32-0473 Fuse Holder Enclosed for AC1-PH65-20M Air Compressor by Mi-T-M 320473
$52.25
20
32-0740 Fuse-Kldr 1 for MiTM Pressure Washers 320740 32-0740 Fuse-Kldr 1 for MiTM Pressure Washers 320740
$75.99
21
32-1084 Fuse- Kldr 1/4 Amp for MiTM Pressure Washers by MiTM 321084 32-1084 Fuse- Kldr 1/4 Amp for MiTM Pressure Washers by MiTM 321084
$68.24
22
32-0321 SOCKET - RELAY 8 PIN (3005-1208) BY MITM 32-0321 SOCKET - RELAY 8 PIN (3005-1208) BY MITM
$16.68
22
32-0321 SOCKET - RELAY 8 PIN (3005-1208) BY MITM 32-0321 SOCKET - RELAY 8 PIN (3005-1208) BY MITM
$16.68
23
32-0320 RELAY - 24V BY MITM 32-0320 RELAY - 24V BY MITM
$43.14
23
32-0320 RELAY - 24V BY MITM 32-0320 RELAY - 24V BY MITM
$43.14
24
32-1153 CONTACTOR BY MITM 32-1153 CONTACTOR BY MITM
$88.23
25
32-0668 Hour Meter/Digital for AC1-PE03-20M Air Compressor by Mi-T-M 320668 32-0668 Hour Meter/Digital for AC1-PE03-20M Air Compressor by Mi-T-M 320668
$47.99
26
32-0734 ADJUSTABLE THERMOSTAT BY MITM 32-0734 ADJUSTABLE THERMOSTAT BY MITM
$50.90
27
32-0801 Switch Rocker 15 Amp 24 Volt for MiTM Pressure Washers by MiTM 320801 32-0801 Switch Rocker 15 Amp 24 Volt for MiTM Pressure Washers by MiTM 320801
$69.92
28
32-0731 ROCKER SWITCH BY MITM 32-0731 ROCKER SWITCH BY MITM
$39.70
30
27-1200 BOLT BY MITM 27-1200 BOLT BY MITM
$1.52
31
20-1343A18 ELECTRIC BOX BY MITM 20-1343A18 ELECTRIC BOX BY MITM
$141.75
32
32-0515 Electrical Locknut (3004-0Me1) for MiTM Pressure Washers by MiTM 320515 32-0515 Electrical Locknut (3004-0Me1) for MiTM Pressure Washers by MiTM 320515
$7.49
32
32-0292 LOCKNUT BY MITM 32-0292 LOCKNUT BY MITM
Call for Price call for price call for price
32
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M1 Air Compressor by Mi-T-M 320108 32-0108 Locknut 1/2" Electrical for AC1-HE02-05M1 Air Compressor by Mi-T-M 320108
$3.99
33
28-0051 Washer for MiTM Pressure Washers 280051 28-0051 Washer for MiTM Pressure Washers 280051
$20.40
34
9-0048 Cord Relief (3004-0Me1) for MiTM Pressure Washers by MiTM 90048 9-0048 Cord Relief (3004-0Me1) for MiTM Pressure Washers by MiTM 90048
$47.43
34
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046 9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
34
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437 32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
35
32-0504 Cord 6/3 *(Ten Feet Required) for MiTM Pressure Washers 320504 32-0504 Cord 6/3 *(Ten Feet Required) for MiTM Pressure Washers 320504
$80.97
35
32-0021 Cord 8/3 Se00W Per Ft for AC1-PH65-20M Air Compressor by Mi-T-M 320021 32-0021 Cord 8/3 Se00W Per Ft for AC1-PH65-20M Air Compressor by Mi-T-M 320021
$34.04
35
32-1346 CORD (1003) BY MITM 32-1346 CORD (1003) BY MITM
$247.16
35
32-0334 Gfci-W/35'Cord-30Amp-240Volt for AM2-SE05-30M Air Compressor by Mi-T-M 320334 32-0334 Gfci-W/35'Cord-30Amp-240Volt for AM2-SE05-30M Air Compressor by Mi-T-M 320334
Call for Price call for price call for price
37
41-0184 PLASTIC ZIPLOCK BAG BY MITM 41-0184 PLASTIC ZIPLOCK BAG BY MITM
Call for Price call for price call for price
38
26-0240 Gasket Electric Box for AC1-HE02-05M by Mi-T-M 260240 26-0240 Gasket Electric Box for AC1-HE02-05M by Mi-T-M 260240
$24.80
39
20-1344A18 CHEM INJ BOX BY MITM 20-1344A18 CHEM INJ BOX BY MITM
$29.03
40
42-0004 HOSE CLAMP BY MITM 42-0004 HOSE CLAMP BY MITM
$5.82
41
22-0226 Valve/Detergent for AC1-PE15-20M1 Air Compressor by Mi-T-M 220226 22-0226 Valve/Detergent for AC1-PE15-20M1 Air Compressor by Mi-T-M 220226
$63.26
42
32-0316 Din Rail-3Ft Section for AC1-PR06-08M Air Compressor by Mi-T-M 320316 32-0316 Din Rail-3Ft Section for AC1-PR06-08M Air Compressor by Mi-T-M 320316
$217.31
43
19-0056 Strainer-Detergent W/Ck Valve for AC1-PE15-08M Air Compressor by Mi-T-M 190056 19-0056 Strainer-Detergent W/Ck Valve for AC1-PE15-08M Air Compressor by Mi-T-M 190056
$19.80
44
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE15-05M Air Compressor by Mi-T-M 150021 15-0021 Hose 1/4 Id Clear Chemi for AC1-HE15-05M Air Compressor by Mi-T-M 150021
$1.99
45
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
46
27-0032 Hhcs-Z1 Gr5 1/4-20 X 5 for MiTM Pressure Washers 270032 27-0032 Hhcs-Z1 Gr5 1/4-20 X 5 for MiTM Pressure Washers 270032
$7.49
46
27-0024 BOLT BY MITM 27-0024 BOLT BY MITM
$0.68
47
20-0797A18 Capacitor Clamp Bracket for MiTM Pressure Washers 200797A18 20-0797A18 Capacitor Clamp Bracket for MiTM Pressure Washers 200797A18
$31.80
47
33-0658 LOOP CLAMP (2004-2E8G) BY MITM 33-0658 LOOP CLAMP (2004-2E8G) BY MITM
$8.58
48
32-1318 CAPACITOR (3004-0E8G, 3005-0E2G) BY MITM 32-1318 CAPACITOR (3004-0E8G, 3005-0E2G) BY MITM
$69.12
48
32-1318 CAPACITOR (3004-0E8G, 3005-0E2G) BY MITM 32-1318 CAPACITOR (3004-0E8G, 3005-0E2G) BY MITM
$69.12
48
32-1268 CAPACITOR (2004-0E2G) BY MITM 32-1268 CAPACITOR (2004-0E2G) BY MITM
$78.92
48
32-1316 CAPACITOR (2004-0E8G) BY MITM 32-1316 CAPACITOR (2004-0E8G) BY MITM
$121.50
48
32-1291 CAPACITOR - START (W/MOTOR) (3004-0E2G) BY MITM 32-1291 CAPACITOR - START (W/MOTOR) (3004-0E2G) BY MITM
$74.25
48
32-1291 CAPACITOR - START (W/MOTOR) (3004-0E2G) BY MITM 32-1291 CAPACITOR - START (W/MOTOR) (3004-0E2G) BY MITM
$74.25
48
32-1322 CAPACITOR - START (W/MOTOR) (3005-0E2G) BY MITM 32-1322 CAPACITOR - START (W/MOTOR) (3005-0E2G) BY MITM
$58.32
49
20-1650A18 Capacitor Clamp Bracket for MiTM Pressure Washers 201650A18 20-1650A18 Capacitor Clamp Bracket for MiTM Pressure Washers 201650A18
Call for Price call for price call for price
49
20-1650A18 Capacitor Clamp Bracket for MiTM Pressure Washers 201650A18 20-1650A18 Capacitor Clamp Bracket for MiTM Pressure Washers 201650A18
Call for Price call for price call for price
50
32-1317 CAPACITOR - RUN (W/MOTOR) (2004/3005-0E8G) BY MITM 32-1317 CAPACITOR - RUN (W/MOTOR) (2004/3005-0E8G) BY MITM
$48.54
50
32-1269 CAPACITOR (2004-0E2G) BY MITM 32-1269 CAPACITOR (2004-0E2G) BY MITM
$82.83
50
32-1292 CAPACITOR - RUN (W/MOTOR) (3004-0E2G) BY MITM 32-1292 CAPACITOR - RUN (W/MOTOR) (3004-0E2G) BY MITM
$43.82
50
32-1331 CAPACITOR - RUN (W/MOTOR) (3004-0E8G) BY MITM 32-1331 CAPACITOR - RUN (W/MOTOR) (3004-0E8G) BY MITM
$30.78
50
32-1319 CAPACITOR - RUN (W/MOTOR) (3005-0E2G) BY MITM 32-1319 CAPACITOR - RUN (W/MOTOR) (3005-0E2G) BY MITM
$22.55
51
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155 30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
36
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

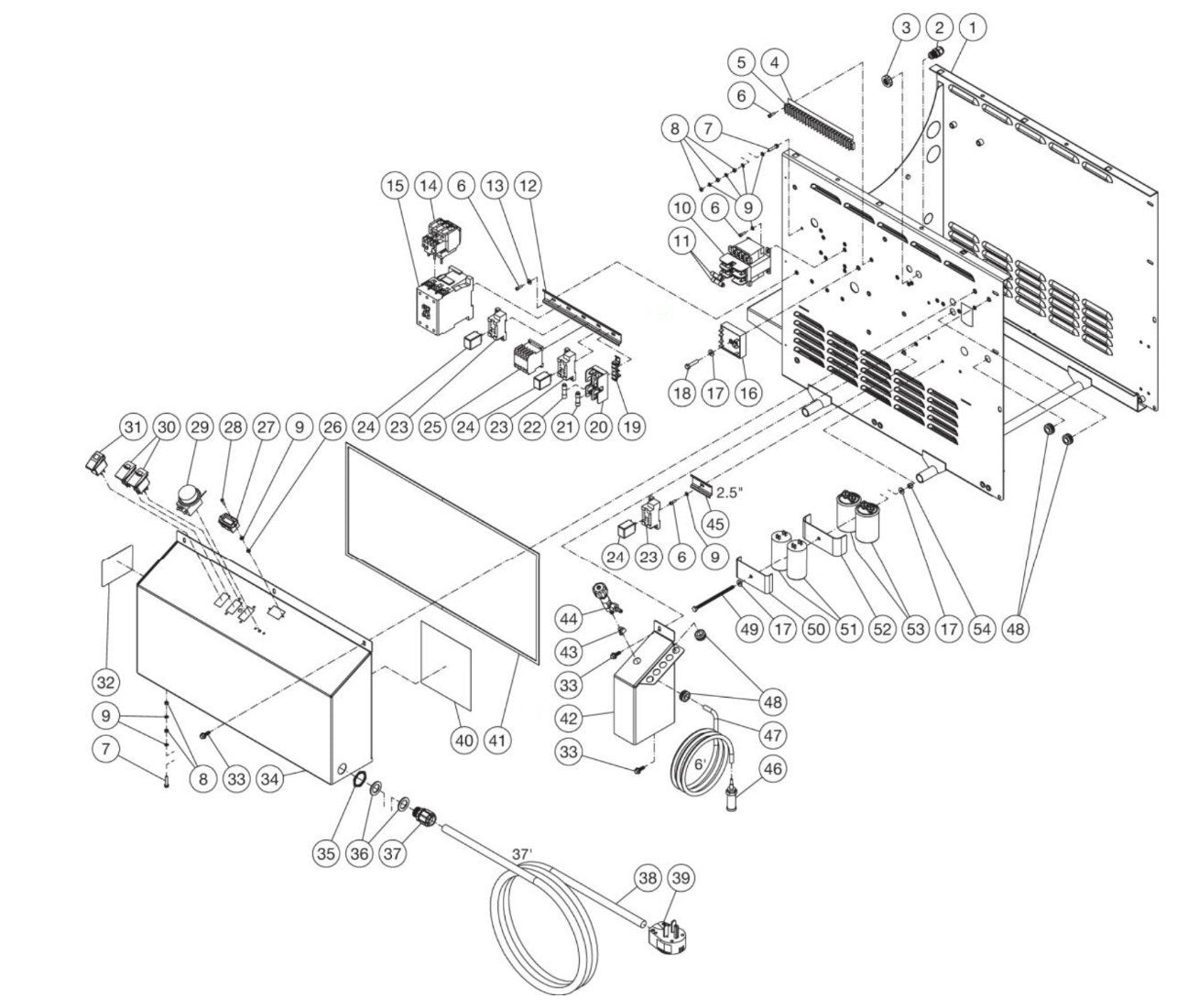

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
