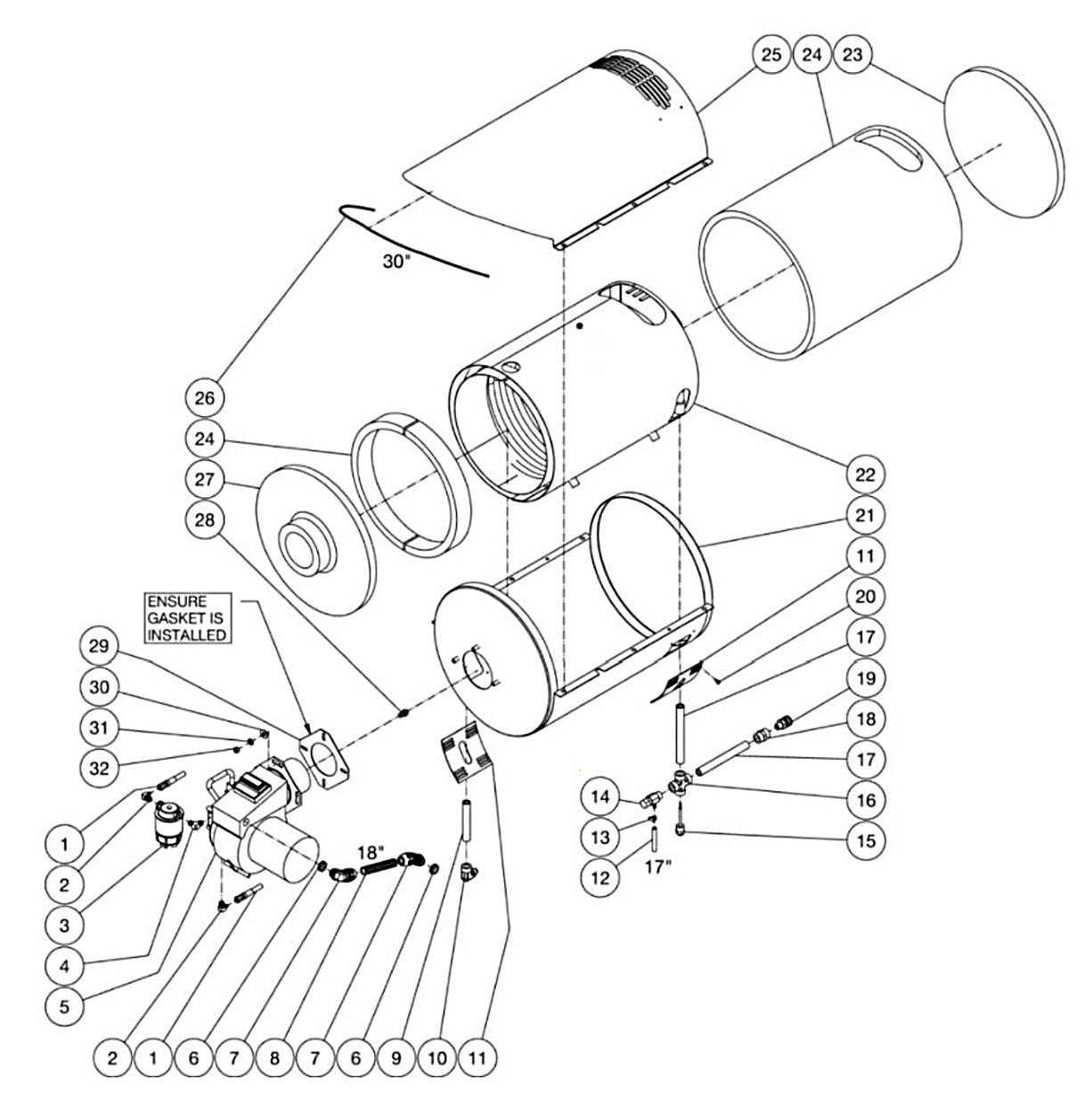

HHS-1003-2E1G, HHS-2004-2E2A/2E2G/2E3G/2E4G/2E8G/2E9G, HHS-3004-2E2A/2E2G/2E3G/2E4G//2E5G/2E8G/2E9G Heat Exchanger Assembly Parts By MiTM

HHS-1003-2E1G, HHS-2004-2E2A/2E2G/2E3G/2E4G/2E8G/2E9G, HHS-3004-2E2A/2E2G/2E3G/2E4G//2E5G/2E8G/2E9G Heat Exchanger Assembly Parts By MiTM

  • HHS-1003-2E1G, HHS-2004-2E2A/2E2G/2E3G/2E4G/2E8G/2E9G, HHS-3004-2E2A/2E2G/2E3G/2E4G//2E5G/2E8G/2E9G Heat Exchanger Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147 15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147
$26.29
2
23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237 23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237
$12.39
3
19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070 19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070
$134.38
4
23-0130 Elbow 1/4M X 1/4M 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230130 23-0130 Elbow 1/4M X 1/4M 90 Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230130
$18.25
5
4-0033 BURNER (4G, 5G) BY MITM 4-0033 BURNER (4G, 5G) BY MITM
$906.20
5
4-0032 BURNER (1G) BY MITM 4-0032 BURNER (1G) BY MITM
$1,200.23
6
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M1 Air Compressor by Mi-T-M 320108 32-0108 Locknut 1/2" Electrical for AC1-HE02-05M1 Air Compressor by Mi-T-M 320108
$3.99
7
32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254 32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254
$9.43
8
32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253 32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253
$5.99
9
24-0245 Pipe Nipple-1/2Npt X 5" Long for AC1-HE02-05M by Mi-T-M 240245 24-0245 Pipe Nipple-1/2Npt X 5" Long for AC1-HE02-05M by Mi-T-M 240245
$21.80
10
24-0240 Elbow-1/2Fnpt X #8Jic M Steel for AC1-HE02-05M by Mi-T-M 240240 24-0240 Elbow-1/2Fnpt X #8Jic M Steel for AC1-HE02-05M by Mi-T-M 240240
$35.00
11
20-0537A18 PATCH PLATE BY MITM 20-0537A18 PATCH PLATE BY MITM
$7.43
12
15-0008 FUEL HOSE *(NINE FEET REQUIRED) (VANGUARD) BY MITM 15-0008 FUEL HOSE *(NINE FEET REQUIRED) (VANGUARD) BY MITM
$4.05
13
42-0004 HOSE CLAMP BY MITM 42-0004 HOSE CLAMP BY MITM
$5.82
14
22-0308 Safety Releif 1/2" 3500 W/Hb for AC1-HE02-05M by Mi-T-M 220308 22-0308 Safety Releif 1/2" 3500 W/Hb for AC1-HE02-05M by Mi-T-M 220308
$97.90
14
22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309 22-0309 Safety Releif 1/2" 4500 W/Hb for AC1-PE03-20M Air Compressor by Mi-T-M 220309
$97.90
15
32-0734 ADJUSTABLE THERMOSTAT BY MITM 32-0734 ADJUSTABLE THERMOSTAT BY MITM
$50.90
16
24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241 24-0241 Cross-1/2Fnpt Steel Forged for AC1-HE02-05M by Mi-T-M 240241
$68.11
17
24-0255 Pipe Nipple-1/2Nptx7-1/2" Long for AC1-HE02-05M by Mi-T-M 240255 24-0255 Pipe Nipple-1/2Nptx7-1/2" Long for AC1-HE02-05M by Mi-T-M 240255
$33.09
18
24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243 24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243
$19.94
19
17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007 17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007
$17.83
20
27-3062 Screw for MiTM Pressure Washers 273062 27-3062 Screw for MiTM Pressure Washers 273062
$5.93
21
20-0527A18 Bottom Wrap Assembly BY MITM 20-0527A18 Bottom Wrap Assembly BY MITM
$388.67
22
66-0014 Coil Assembly for AC1-HE02-05M by Mi-T-M 660014 66-0014 Coil Assembly for AC1-HE02-05M by Mi-T-M 660014
$1,577.83
23
33-0346 Insulation Disc for AC1-HE02-05M by Mi-T-M 330346 33-0346 Insulation Disc for AC1-HE02-05M by Mi-T-M 330346
$45.32
24
850-0279 Insulation Blanket Hh Coil for AC1-HE02-05M by Mi-T-M 8500279 850-0279 Insulation Blanket Hh Coil for AC1-HE02-05M by Mi-T-M 8500279
$104.99
25
21-0129 TOP WRAP BY MITM 21-0129 TOP WRAP BY MITM
$187.73
26
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM 33-0020 EDGING *(FOUR FEET REQUIRED) BY MITM
$6.57
27
33-0345 Insulation Drum Head for AC1-HE02-05M by Mi-T-M 330345 33-0345 Insulation Drum Head for AC1-HE02-05M by Mi-T-M 330345
$73.72
28
18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090 18-0090 Nozzle Solid Oil 2.25 80 Deg for AC1-HE02-05M by Mi-T-M 180090
$20.32
28
18-0091 FUEL NOZZLE (3004) BY MITM 18-0091 FUEL NOZZLE (3004) BY MITM
$23.63
28
18-0093 FUEL NOZZLE (HEO-3005) BY MITM 18-0093 FUEL NOZZLE (HEO-3005) BY MITM
$24.11
28
18-0356 FUEL NOZZLE (1003/2503) BY MITM 18-0356 FUEL NOZZLE (1003/2503) BY MITM
$15.60
29
44-0108 Gasket/Mounting for AC1-HE02-05M by Mi-T-M 440108 44-0108 Gasket/Mounting for AC1-HE02-05M by Mi-T-M 440108
$8.82
30
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
31
29-0008 LOCKWASHER BY MITM 29-0008 LOCKWASHER BY MITM
$2.55
32
30-0006 Hex Nut BY MITM 30-0006 Hex Nut BY MITM
$0.68
5
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

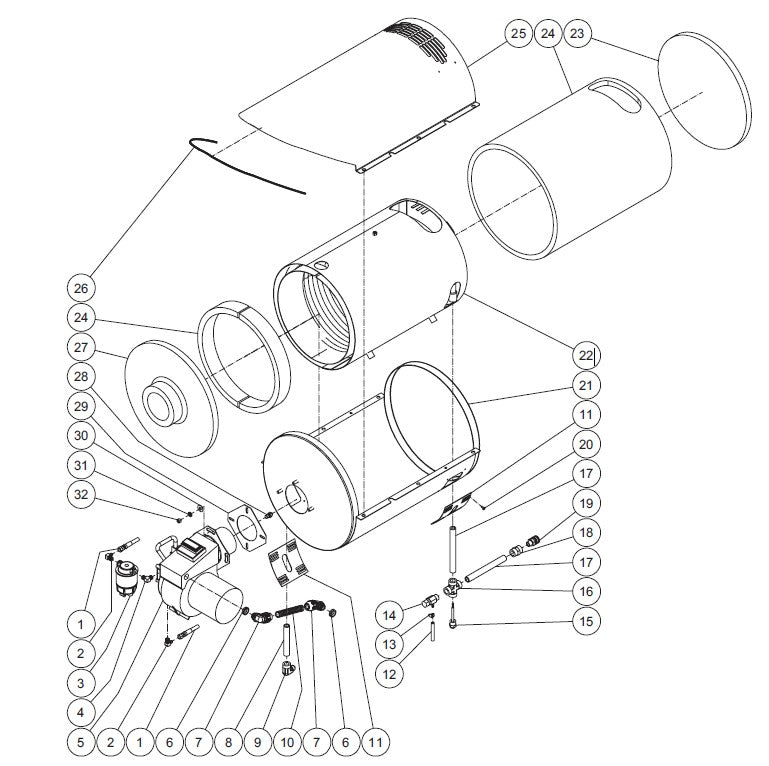

How do I use this diagram?
