HHS-1502-1E1A/1E1G Motor/Pump Assembly Parts By MiTM

HHS-1502-1E1A/1E1G Motor/Pump Assembly Parts By MiTM

  • HHS-1502-1E1A/1E1G Motor/Pump Assembly Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
30-0157 Locknut for ABS Air Compressor by Mi-T-M 300157 30-0157 Locknut for ABS Air Compressor by Mi-T-M 300157
$2.85
2
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003 28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
3
27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066 27-0066 Bolt for ABS Air Compressor by Mi-T-M 270066
$1.99
4
27-0133 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270133 27-0133 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270133
$1.99
5
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
6
30-0006 Hex Nut BY MITM 30-0006 Hex Nut BY MITM
$0.68
7
5-0152A18 Baseplate BY MITM 5-0152A18 Baseplate BY MITM
$210.06
8
27-8884 Screw for MiTM Air Compressors by MiTM 278884 27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
8
27-8471 BOLT BY MITM 27-8471 BOLT BY MITM
$7.65
9
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154 29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
9
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055 29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
10
30-6025 CLIP NUT BY MITM 30-6025 CLIP NUT BY MITM
$3.24
11
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118 27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
12
5-0153A18 Pump Hat BY MITM 5-0153A18 Pump Hat BY MITM
$34.43
13
30-0159 LOCKNUT BY MITM 30-0159 LOCKNUT BY MITM
$0.68
14
3-0210 Pump w/Key BY MITM 3-0210 Pump w/Key BY MITM
Call for Price call for price call for price
14
3-0005 PUMP RH 3.5 GPM AT 1500 PSI BY MITM 3-0005 PUMP RH 3.5 GPM AT 1500 PSI BY MITM
$1,621.38
15
22-0414 HEAT DUMP VALVE BY MITM 22-0414 HEAT DUMP VALVE BY MITM
$14.45
16
10-0007 Sheave 2Ak84H for ACD Air Compressor by Mi-T-M 100007 10-0007 Sheave 2Ak84H for ACD Air Compressor by Mi-T-M 100007
$124.92
17
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015 27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
18
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017 9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
19
11-0006 Cog Belt Ax36 for AC1-PE02-20M1 Air Compressor by Mi-T-M 110006 11-0006 Cog Belt Ax36 for AC1-PE02-20M1 Air Compressor by Mi-T-M 110006
$25.30
20
43-0048 KEY BY MITM 43-0048 KEY BY MITM
$6.35
21
10-0111 MOTOR SHEAVE (1003) BY MITM 10-0111 MOTOR SHEAVE (1003) BY MITM
$29.64
21
10-0116 SHEAVE (G) BY MITM 10-0116 SHEAVE (G) BY MITM
$7.43
22
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078 43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
23
2-0120 Motor Assembly BY MITM 2-0120 Motor Assembly BY MITM
Call for Price call for price call for price
24
27-0067 Bolt for ABS Air Compressor by Mi-T-M 270067 27-0067 Bolt for ABS Air Compressor by Mi-T-M 270067
Call for Price call for price call for price
25
32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254 32-0254 Conduit Elbow 1/2" for AC1-HE02-05M by Mi-T-M 320254
$9.43
26
32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253 32-0253 Conduit Flex 1/2" Black for AC1-HE02-05M by Mi-T-M 320253
$5.99
27
28-0051 WASHER BY MITM 28-0051 WASHER BY MITM
$10.20
28
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108 32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
29
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002 *24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
30
24-0037 3/8Mnptx#8Jic Swivel for AC1-HE02-05M by Mi-T-M 240037 24-0037 3/8Mnptx#8Jic Swivel for AC1-HE02-05M by Mi-T-M 240037
$26.35
31
850-0252 Unloader Assy for AC1-HE02-05M by Mi-T-M 8500252 850-0252 Unloader Assy for AC1-HE02-05M by Mi-T-M 8500252
$131.04
32
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171 22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
33
15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221 15-0221 Hose 3/8X29" 4500Psi R2 Black for AC1-HE02-05M by Mi-T-M 150221
$40.69
34
23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HH04-05M Air Compressor by Mi-T-M 230069 23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HH04-05M Air Compressor by Mi-T-M 230069
$4.85
35
42-0004 HOSE CLAMP BY MITM 42-0004 HOSE CLAMP BY MITM
$5.82
36
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020 15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
37
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092 24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
38
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021 15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
39
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051 23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
40
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056 23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
41
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HH04-05M Air Compressor by Mi-T-M 230123 23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HH04-05M Air Compressor by Mi-T-M 230123
$15.01
42
23-0360 HOSE BARB BY MITM 23-0360 HOSE BARB BY MITM
$7.02
43
15-0200 Hose 1/2" for AC1-HE02-05M by Mi-T-M 150200 15-0200 Hose 1/2" for AC1-HE02-05M by Mi-T-M 150200
$11.20
44
23-0361 Nipple 1/2M X 1/2M 45Deg Flare for AC1-HE02-05M by Mi-T-M 230361 23-0361 Nipple 1/2M X 1/2M 45Deg Flare for AC1-HE02-05M by Mi-T-M 230361
$9.54
45
23-0388 23-0124 Street Tee Tapped for AC1-HE02-05M by Mi-T-M 230388 23-0388 23-0124 Street Tee Tapped for AC1-HE02-05M by Mi-T-M 230388
$36.69
46
23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119 23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119
$20.10
47
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011 42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
48
23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411 23-0411 Plug-1/2Npt Flared Seal for AC1-HE02-05M by Mi-T-M 230411
$12.87
49
15-0007 HOSE *(TWO FEET REQUIRED) BY MITM 15-0007 HOSE *(TWO FEET REQUIRED) BY MITM
$3.51
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

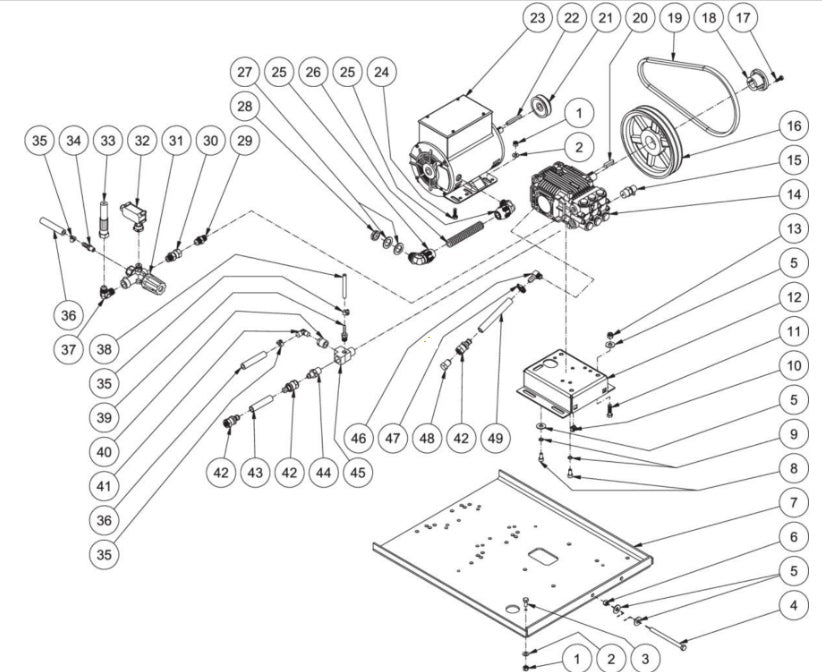

How do I use this diagram?
