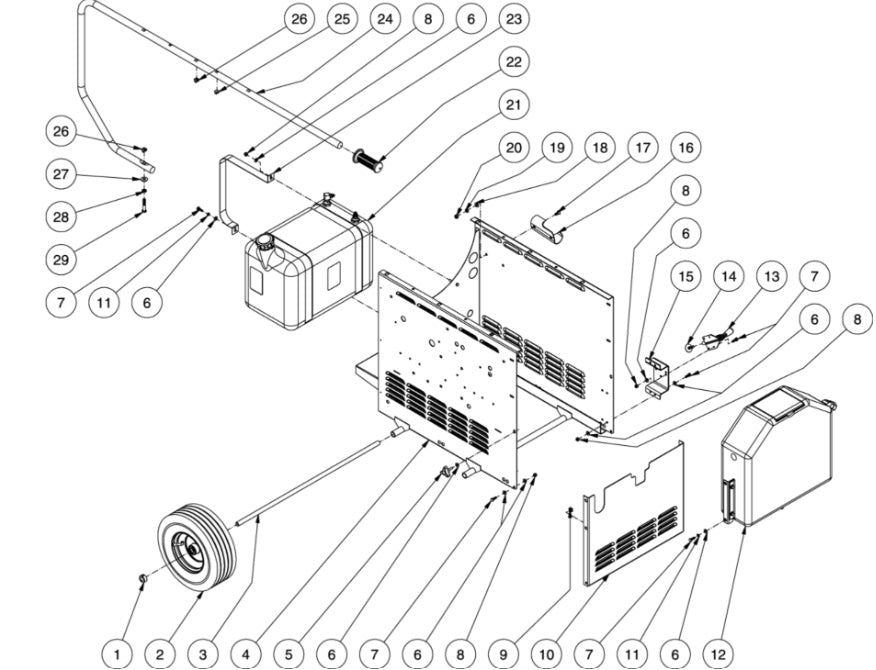

HHS-1002, HHS-1003, HHS-1502 1E1A/1E1G, HHS-2004-0E2A/0E2G/0E3A/0E3G/0E4A/0E4G/0E8A/0E8G/0E9A/0E9G, HHS-2004, HHS-3004, HHS-3005, 1E2A/1E2G/1E3A/1E3G/1E4A/1E4G/1E8A/1E8G/1E9A/1E9G, HHS-303-1E1A Chassis Assembly Parts By MiTM

HHS-1002, HHS-1003, HHS-1502 1E1A/1E1G, HHS-2004-0E2A/0E2G/0E3A/0E3G/0E4A/0E4G/0E8A/0E8G/0E9A/0E9G, HHS-2004, HHS-3004, HHS-3005, 1E2A/1E2G/1E3A/1E3G/1E4A/1E4G/1E8A/1E8G/1E9A/1E9G, HHS-303-1E1A Chassis Assembly Parts By MiTM

  • HHS Series Chassis Assembly 2 Parts By MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
33-0351 Lock Collar/Shaft 5/8 Id Steel for AC1-HE02-05M by Mi-T-M 330351 33-0351 Lock Collar/Shaft 5/8 Id Steel for AC1-HE02-05M by Mi-T-M 330351
$6.48
2
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006 14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
3
20-0524 Axle BY MITM 20-0524 Axle BY MITM
$14.31
4
5-0230A18 Chassis Assembly BY MITM 5-0230A18 Chassis Assembly BY MITM
Call for Price call for price call for price
5
7-0168 KNOB BY MITM 7-0168 KNOB BY MITM
$15.30
6
28-0002 Washer for MiTM Pressure Washers by MiTM 280002 28-0002 Washer for MiTM Pressure Washers by MiTM 280002
$5.93
7
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015 27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
8
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155 30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
9
30-6026 Clip Nut BY MITM 30-6026 Clip Nut BY MITM
$0.75
10
20-0525A18 Access Door BY MITM 20-0525A18 Access Door BY MITM
$50.97
11
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006 29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
13
33-0400 Push/Pull-Action Toggle Clamp for AC1-HE02-05M by Mi-T-M 330400 33-0400 Push/Pull-Action Toggle Clamp for AC1-HE02-05M by Mi-T-M 330400
$66.15
14
27-9550 BOLT BY MITM 27-9550 BOLT BY MITM
$2.55
15
20-0825A18 Brake Bracket BY MITM 20-0825A18 Brake Bracket BY MITM
$16.88
16
20-0870A18 Wand Holder BY MITM 20-0870A18 Wand Holder BY MITM
$13.04
17
27-0418 Bolt BY MITM 27-0418 Bolt BY MITM
$1.56
18
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003 28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
19
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007 29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
20
30-0005 Nut for MiTM Pressure Washers 300005 30-0005 Nut for MiTM Pressure Washers 300005
Call for Price call for price call for price
21
850-0303 Fuel Tank Assy Hhs for AC1-HE02-05M by Mi-T-M 8500303 850-0303 Fuel Tank Assy Hhs for AC1-HE02-05M by Mi-T-M 8500303
$219.30
22
7-0167 Handle Grip for MiTM Pressure Washers 70167 7-0167 Handle Grip for MiTM Pressure Washers 70167
$25.11
23
20-0598A18 Fuel Tank Strap BY MITM 20-0598A18 Fuel Tank Strap BY MITM
$12.83
24
7-0166A18 Handle BY MITM 7-0166A18 Handle BY MITM
$61.43
25
30-6027 Clip Nut BY MITM 30-6027 Clip Nut BY MITM
$1.22
26
30-6025 CLIP NUT BY MITM 30-6025 CLIP NUT BY MITM
$7.13
27
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
28
29-0008 LOCKWASHER BY MITM 29-0008 LOCKWASHER BY MITM
$2.55
29
27-0121 Bolt for ABS Air Compressor by Mi-T-M 270121 27-0121 Bolt for ABS Air Compressor by Mi-T-M 270121
$1.99
