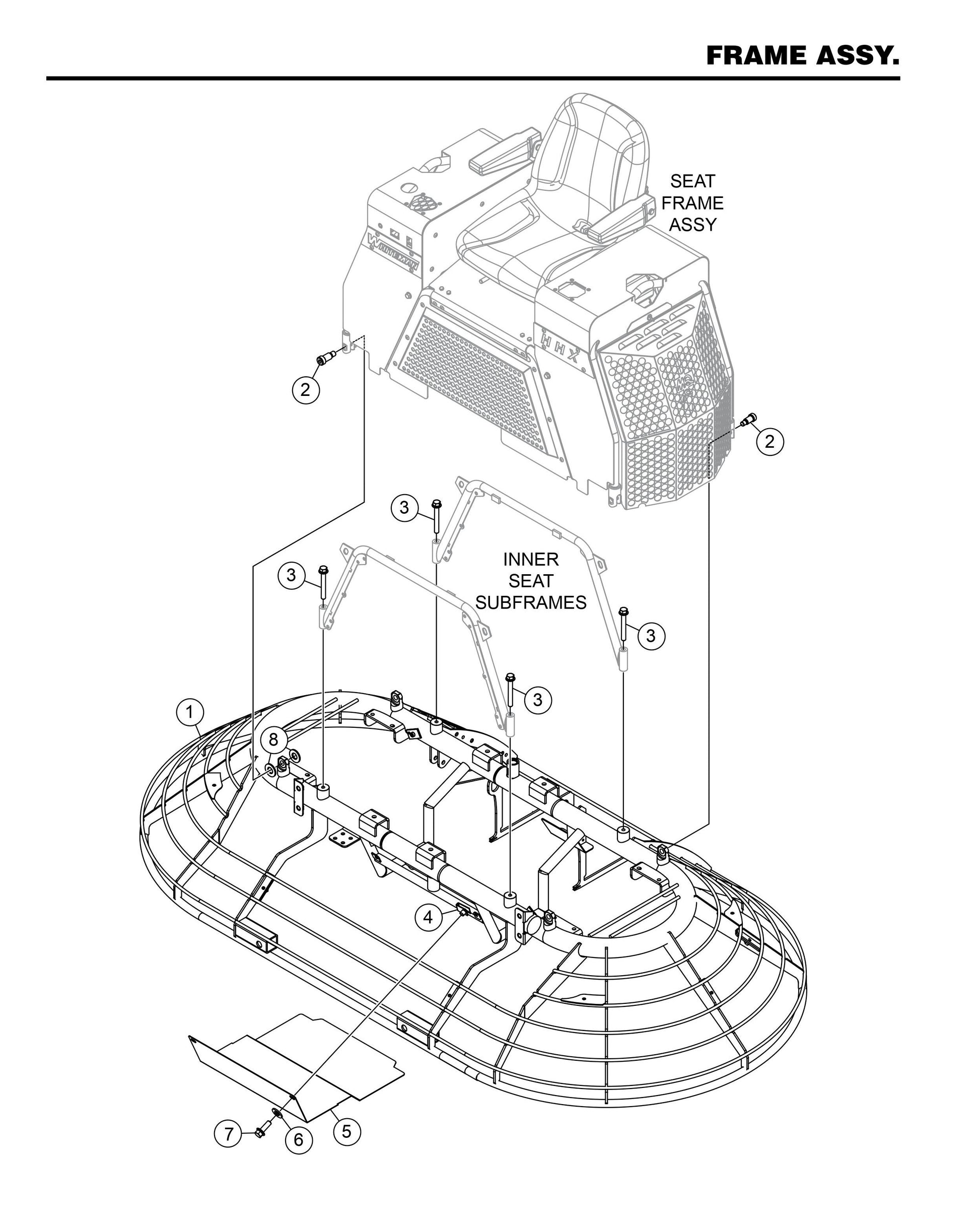

HHXD5 Frame Assembly

HHXD5 Frame Assembly

  • HHXD5 Frame Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
23000 Frame, Main for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$4,845.83
2
9162 Screw, Shoulder M16Xm25 M12-1.75 for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$13.88
3
23288 Screw, Hhf M12-1.75 X 100 W/Patch Cl8.8 for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$8.83
4
11534 Nut U Type 1/4-20 for HTXD6i Hydrostatic ride on power trowels by Multiquip Whiteman
$4.39
5
23253 Guard, Belt Splash Hhx for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$42.54
6
3233 Washer, Fender 1.5 Od X 3/8 Id for HTX44K4 K5 Y4 Y5 Walk Behind Trowels by Multiquip Whiteman
$2.19
7
49048 Screw, Hhfs 1/4"-20 X 3/4" Grd 5 for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
8
23303 Bushing, Seat Frame for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$6.59
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
