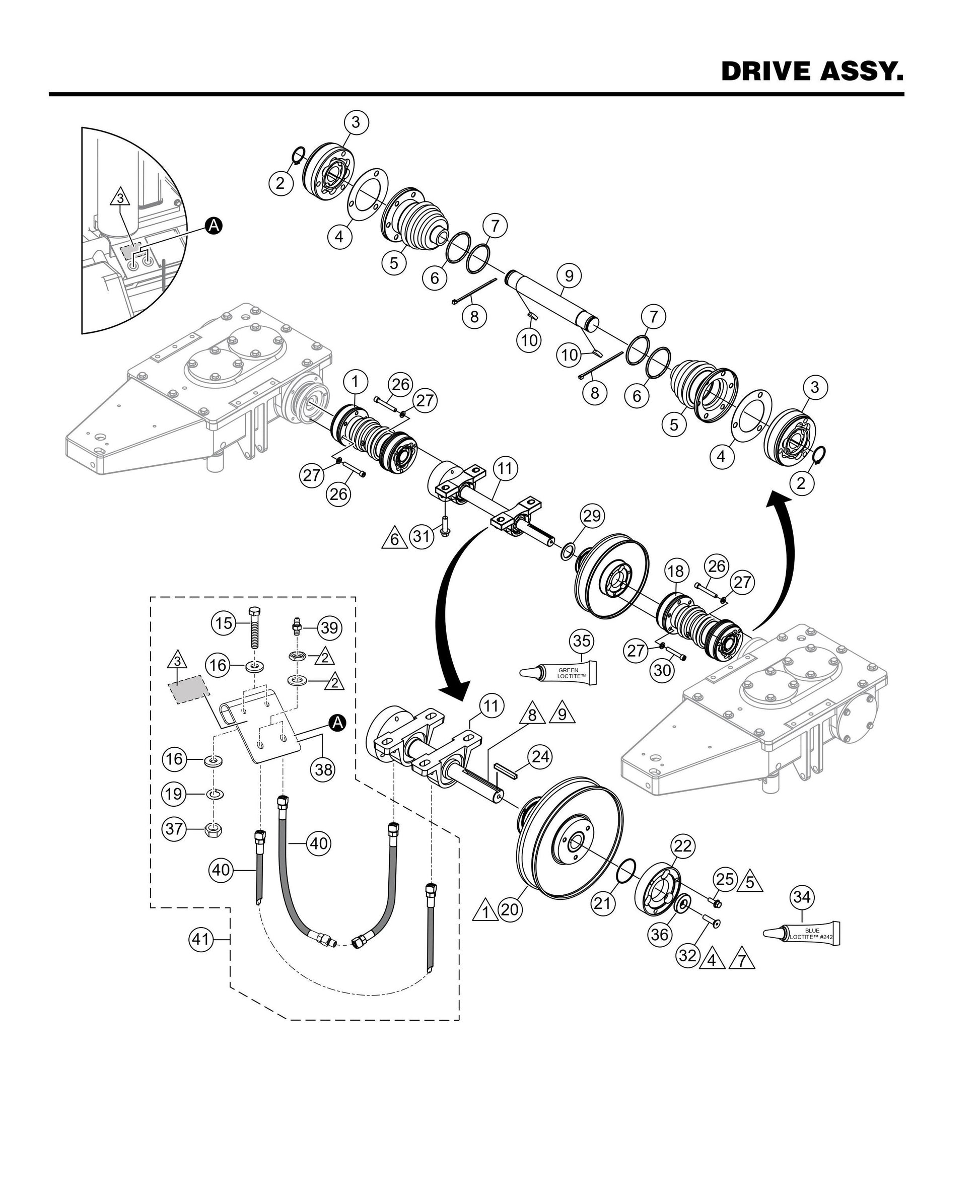

HHXDF4 HHXDF5 Drive Assembly

HHXDF4 HHXDF5 Drive Assembly

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
23779 Shaft, Drive Cv Joint Assy., Right for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$209.36
3@*
392052 C.V. Joint, Coupling for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$75.89
4@*
11108 Gasket, C.V. Joint Boot Riders for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$13.20
5@*
2259 Boot Assy., C.V. Joint Riders for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$30.03
6@#*
22219 O-Ring, Size 2-228N-90 2.25 Dia. X .125 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$1.39
7@#*
22220 O-Ring, Size 2-225N-90 1.875 Dia. X .125 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$1.25
8@*
1662 Tie, Cable Ty-Rap Black for HHN34TVD Mechanical ride on power trowels by Multiquip Whiteman
$4.39
9@*
23778 Shaft, C.V. Joint 7.45Lg for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
10@*
0126 Key, Woodruff #606 3/16 X 3/4 (#9) for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$3.29
11
30357-SK Drive, Cross Shaft Assy for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$532.98
15$
0424 Hhcs 1/4- 20 X 1.1/4” for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
16$
0984 Washer, Flat Sae 1/4" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
18
23477 Cv Joint Assy for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$266.11
20
40141 Cvt, Lower Driven Unit, Service Kit for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$806.96
21$
20116 O-Ring, Size- 031 Buna N for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
22
23420 Coupler, Driven Ccvt for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$99.09
24%
20363 Key, Steel .188 X .250 X 2.5 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$12.79
25
9165 Screw, Hhfs 1/4"-28 X 3/4" Grd 5 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
26
2186 Screw, Shc 5/16"-16 X 2-1/4" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
29
11773 Shim, Ss Int Notch 1" Id. X 1-1/2" Od. for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.07
30
0243 Screw, Shc 5/16"-18 X 1-3/4" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$1.61
31
9199 Screw, Hfs, M10-1.5 X 35 Grd 8.8 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$3.59
32%
30107 Screw, Fhsc 3/8"-16 X 1.25 Lh for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$11.73
35
32434 Loctite™ 1/2" Ml Green for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$8.90
37$
10024 Lock Nut 1/4- 20 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
38$
23924 Bracket, Remote Grease Zerk for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
39$
2621 Fitting, Grease for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
40$
23943 Tubing, Remote Grease Line, W/ Fittings for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$55.60
41
23947 Kit, Grease Line for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$141.09
2@
2090 Snap Ring, 1.062 Dia. X .056 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$3.29
27
0161 C Washer, Lock, 5/16" Med. for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
34
1477 Loctite Blue #242 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$7.12
36%
2037 Spacer, Csk 1.375 Dia. X .328 Dia. X .250 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$7.79
19$
0181 B Washer, Lock 1/4" Med. for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
