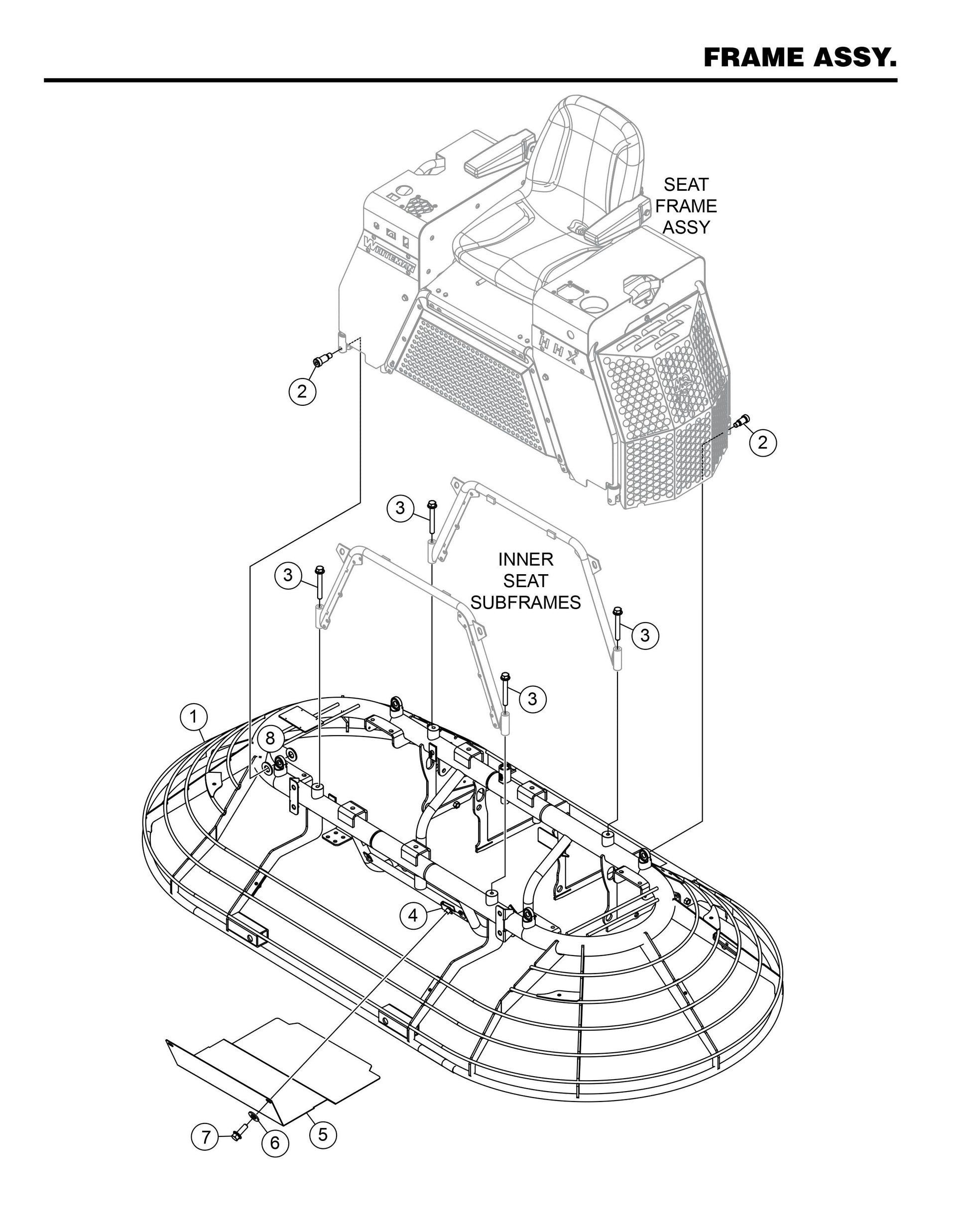

HHXDF4 HHXDF5 Frame Assembly

HHXDF4 HHXDF5 Frame Assembly

  • HHXDF4 HHXDF5 Frame Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
23761 Frame, Main for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$2,811.78
2
9162 Screw, Shoulder M16 X M25 M12-1.75 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$13.88
3
23288 Screw, Hhf M12-1.75 X 100 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$8.83
4
11534 Nut U Type 1/4-20 for HTXD6i Hydrostatic ride on power trowels by Multiquip Whiteman
$4.39
5
23253 Guard, Belt Splash for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$42.54
7
49048 Screw, Hhfs 1/4"-20 X 3/4" Grd 5 for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
8
23303 Bushing, Seat Frame for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$6.59
6
3233 Washer, Fender, 3/8" X 1-1/2" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
