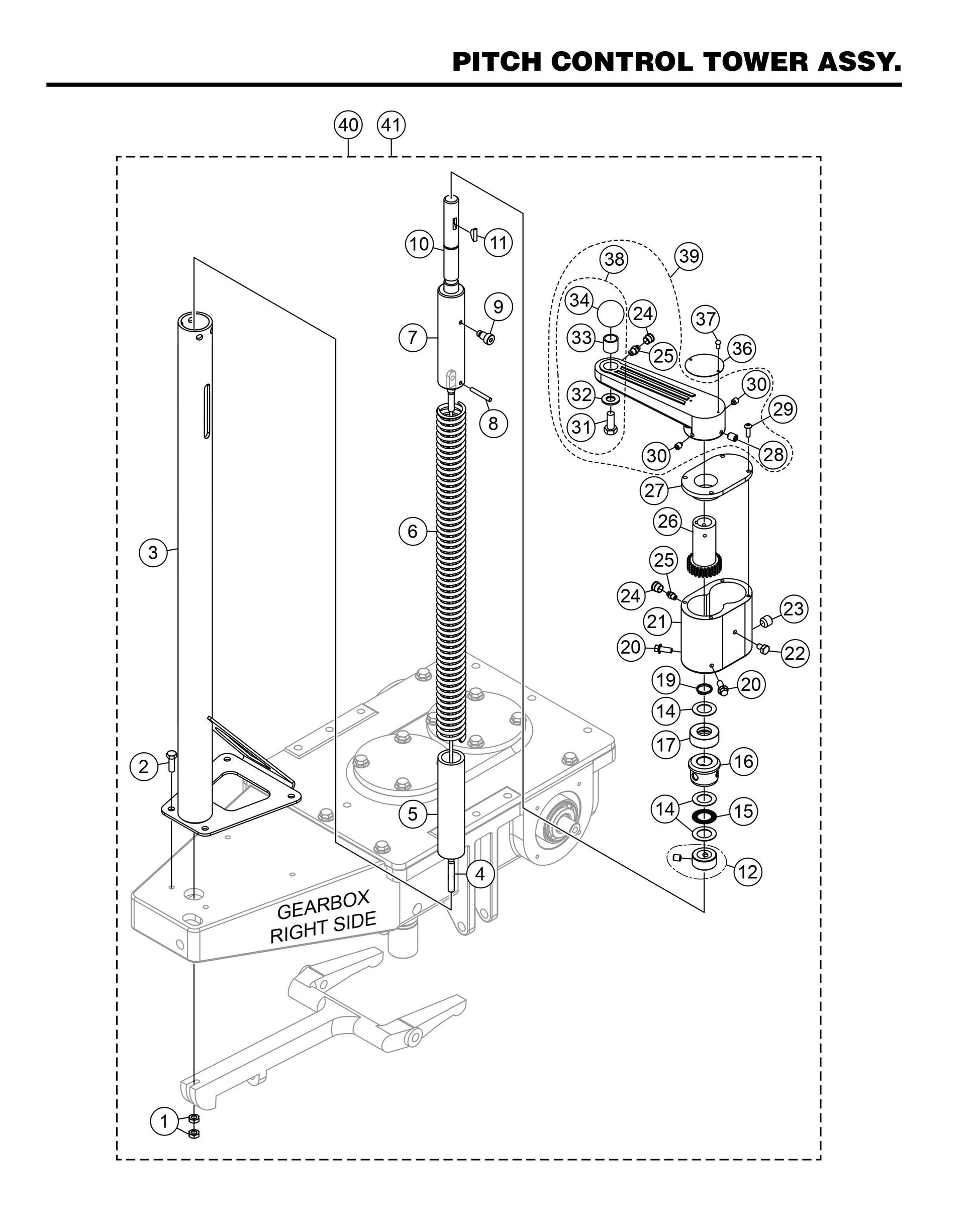

HHXDF4 HHXDF5 Pitch Control Tower Assembly

HHXDF4 HHXDF5 Pitch Control Tower Assembly

  • HHXDF4 HHXDF5 Pitch Control Tower Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1#$
1116 Brass Jam Nut 5/16-18 for J Series Walk Behind Trowels by Multiquip Whiteman
$1.99
2#$
9091 Screw, Hhfs 5/16"-18 X 1" Grd 5 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
3#$
23154 Tower, Pitch Control for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$89.73
3#$
23167 Tower, Pitch Control for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$89.73
4#$
11623 Cable Assy., 32.38" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$59.15
5#$
11649 Spacer, Pitch Spring for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$11.48
8#$
10723 Pin, Spiral 3/16" X 1-3/8" Hd for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
9#$
10382 Bolt, Shoulder, 3/8 X 3/8 for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$3.29
10#$
10510 Shaft, Pitch Control for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$49.17
10#$
10511 Shaft, Pitch Control for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$66.59
11#$
0126 Key, Woodruff #606 3/16 X 3/4 (#9) for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$3.29
12#$
2367 Collar, Set .75 X 1.25 X .56 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$7.28
14#$
2170 Bearing, Race, Torr #Tra 1220 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$2.00
15#$
2169 Bearing, Thrust, Torr #Nta 1220 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$10.66
16#$
1612 Bearing, Alum - Pitch Contr for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$7.56
19#$
10512 Ring, Snap for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
21#$
23037 Housing, Pitch Control for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$108.69
22#$
20476 Screw, Hhc 1/4"-28 X 3/8" for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
23#$
17109 Screw, Shscu M8-1.25 X 8 Mm for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
25%#$
1162 A Cap, Grease Zerk #2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
26#$
1529 Gear, Drive Pitch Control for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$116.15
27#$
2649 Cover, Pitch Cont Housing for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$38.32
28%#$
0185 Screw, Shs 3/8"-16 X 3/8", No Plate for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
29#$
9191 Screw, Bhsc M5-0.8 X 16 Mm for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
30%#$
1528 Screw, Shs 1/4"-20 X 5/16" H.D.P. for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
31@%#$
1616 Bolt, Shoulder .5 Dia. X .469 X 3/8"-16 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$14.20
36#$
23806 Decal, Pitch for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$1.50
36#$
23807 Decal, Pitch for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$1.50
37#$
4014 Screw, #2, 3/16 P-K Type U Drive for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$288.60
38%#$
2737 Knob, Kit for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$31.59
40
23187-SK Tower Assembly, Pitch Control, Rh for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$636.26
41
23188-SK Tower Assembly, Pitch Control, Lh for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$636.26
39#$
1617 Lever Assy, Trowel Adjustment for HTH44T Walk Behind Trowels by Multiquip Whiteman
$117.34
6#$
2156 Spring, Handle Balance Coil for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$23.55
7#$
10721 Slide Block, Pitch Control for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$46.98
7#$
10722 Slide Block, Pitch Control for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$46.98
17#$
1604 Bearing, Ball Thrust E5 Aetna for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$43.44
20#$
22021 Screw, Hhfs M8-1.25 X 20 Mm for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$3.73
24%#$
2621 Fitting, Grease Zerk Straight 1/4"-28 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
32@%#$
1733 Washer, 1/2" X 1/32" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
33@%#$
3231 Spacer, .75 Dia. X .406 Dia. X .688 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$6.27
34@%#$
4403 Knob, Round 1-3/8" Dia. X 3/8"-16 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$12.70
