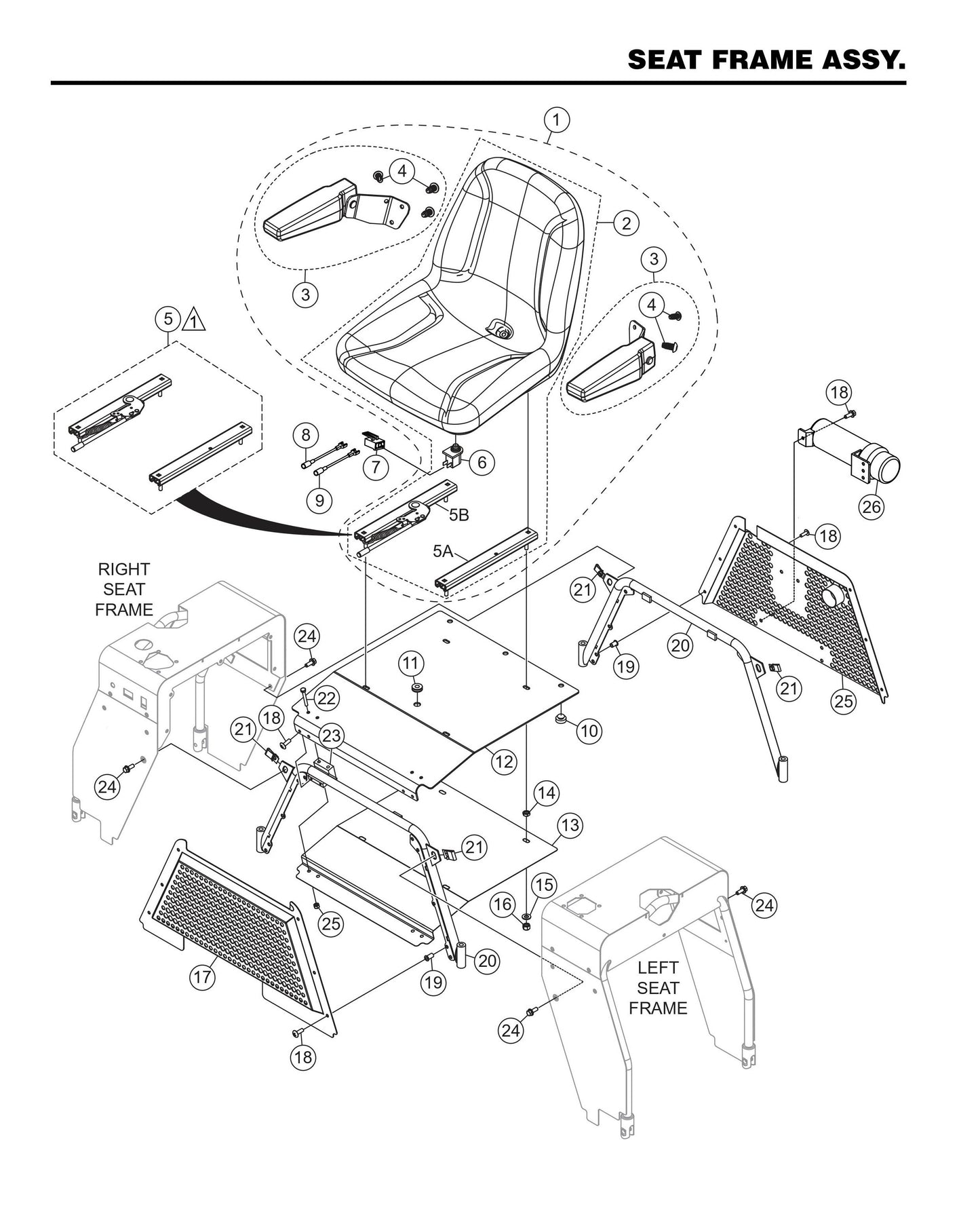

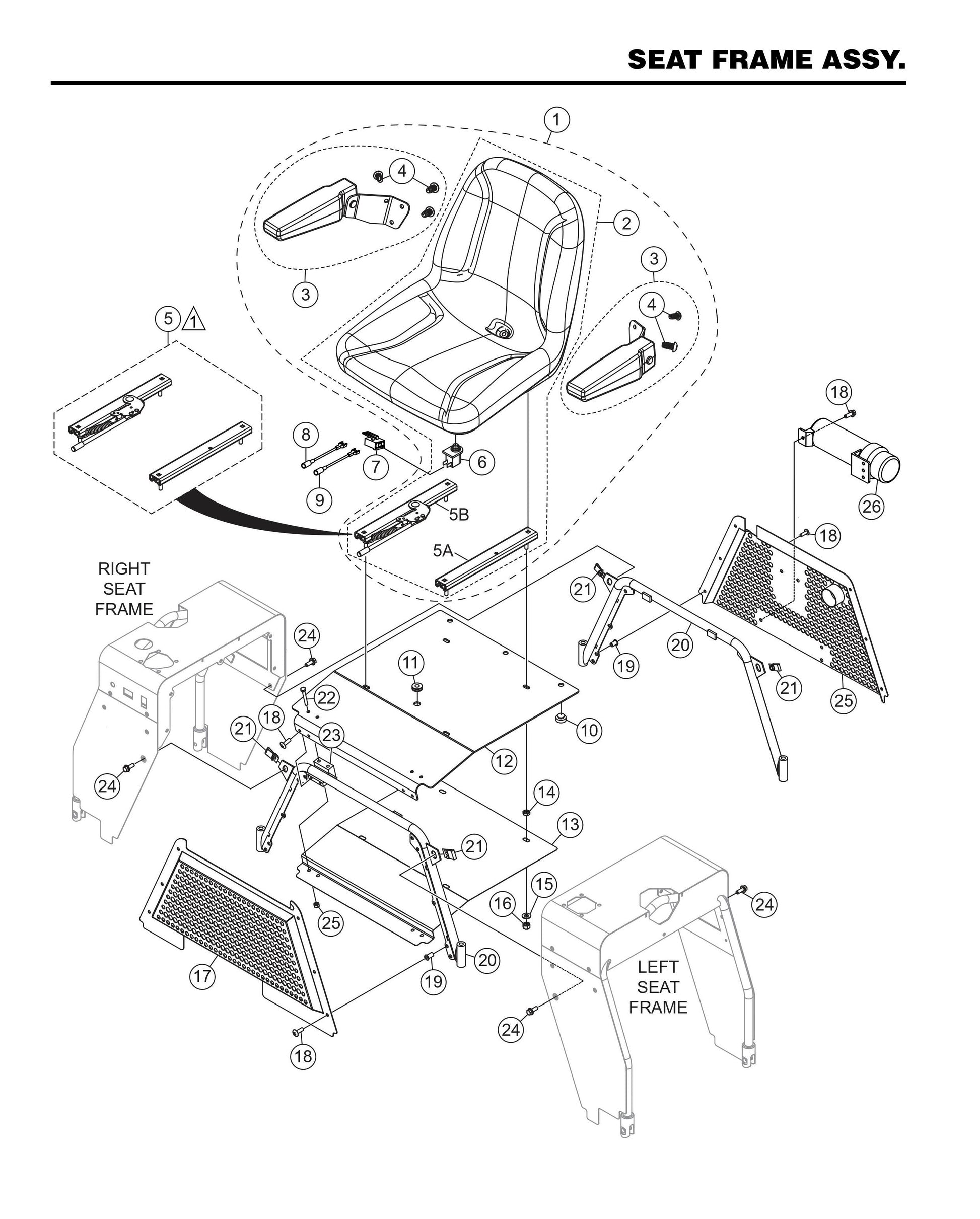

HHXDF4 HHXDF5 Seat Frame Assembly

HHXDF4 HHXDF5 Seat Frame Assembly

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
21852-S Seat, Michigan Adjustable W/ Arms for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
1
32960-SK Seat, Adjustable W/ Arms, Sears for HTXG6DF SN PB2003172 and below Walk Behind Trowels by Multiquip Whiteman
$515.83
2@
21860 Seat, Michiganw/O Arms for HTX6H Walk Behind Trowels by Multiquip Whiteman
$381.15
2#
32963-SK Seat, Adjustable W/O Arms, Sears for STX6H Hydrostatic ride on power trowels by Multiquip Whiteman
$384.14
3@
21868 Arm Rest Kit, Michigan for HTXD6i Hydrostatic ride on power trowels by Multiquip Whiteman
$211.27
3#
34792 Arm Rest Kit, Sears for HTXD6i Hydrostatic ride on power trowels by Multiquip Whiteman
$150.48
4@#%
21869 Screw, Cap 5/16"-18 X 5/8" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$3.58
5@
21865 Seat Adjuster Kit, Michigan for HTXD6i Hydrostatic ride on power trowels by Multiquip Whiteman
$114.72
5A#$
32964 Seat Adjuster Lh, Sears for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
5B#$
32965 Seat Adjuster Rh, Sears for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
6@
21870 Kill Switch, Delta for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$32.21
6#$
32962 Kill Switch, Sears for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
7
21936 Connector Body, 2 Pin for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$1.87
8
21924 Wire Assy., 16 Ga. Red X 11" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$3.40
9
21923 Wire Assy., 16 Ga. Violet/Orange X 12.5" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$3.51
10
21597 Bumper Stem 1.0" D X .5 X .31 for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$1.49
11
30375 Grommet, 3/16" Thick X 1" Id. X 1-3/4" Od. for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$10.47
12
30374 Plate, Operator, Seat for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$52.69
13
23281 Shield, Seat Plate Heat for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$61.63
14
0106 Nut, Hex Jam 5/16"-18 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
15
0300 B Flat Washer 5/16" for HHN34TVD Mechanical ride on power trowels by Multiquip Whiteman
$4.39
16
5283 Lock Nut 5/16- 18 for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$75.08
17
23204 Panel, Front for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$90.92
18
12287 Screw, Thp 1/4 - 20 X 3/4 Ss for FCG1 Slabsaver Concrete Saw by Multiquip
$2.19
20
23047 Subframe, Inner Seat for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$171.87
21
23296 Nut, 3/8"-16 J-Type Retainer for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$3.77
22
20909 Screw, Hhc 1/4"-20 X 2" for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
23
20685 Block, Operator Seat Pivot for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$40.60
24
22228 Screw, Hhf 3/8"-16 X 1" Grd 8 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
25
23787 Panel, Rear for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$101.02
26
23297 Manual Holder for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$28.17
19
19266 Nut, Blind 1/4-20 X .027-.165 for HHXDF4-DF5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
