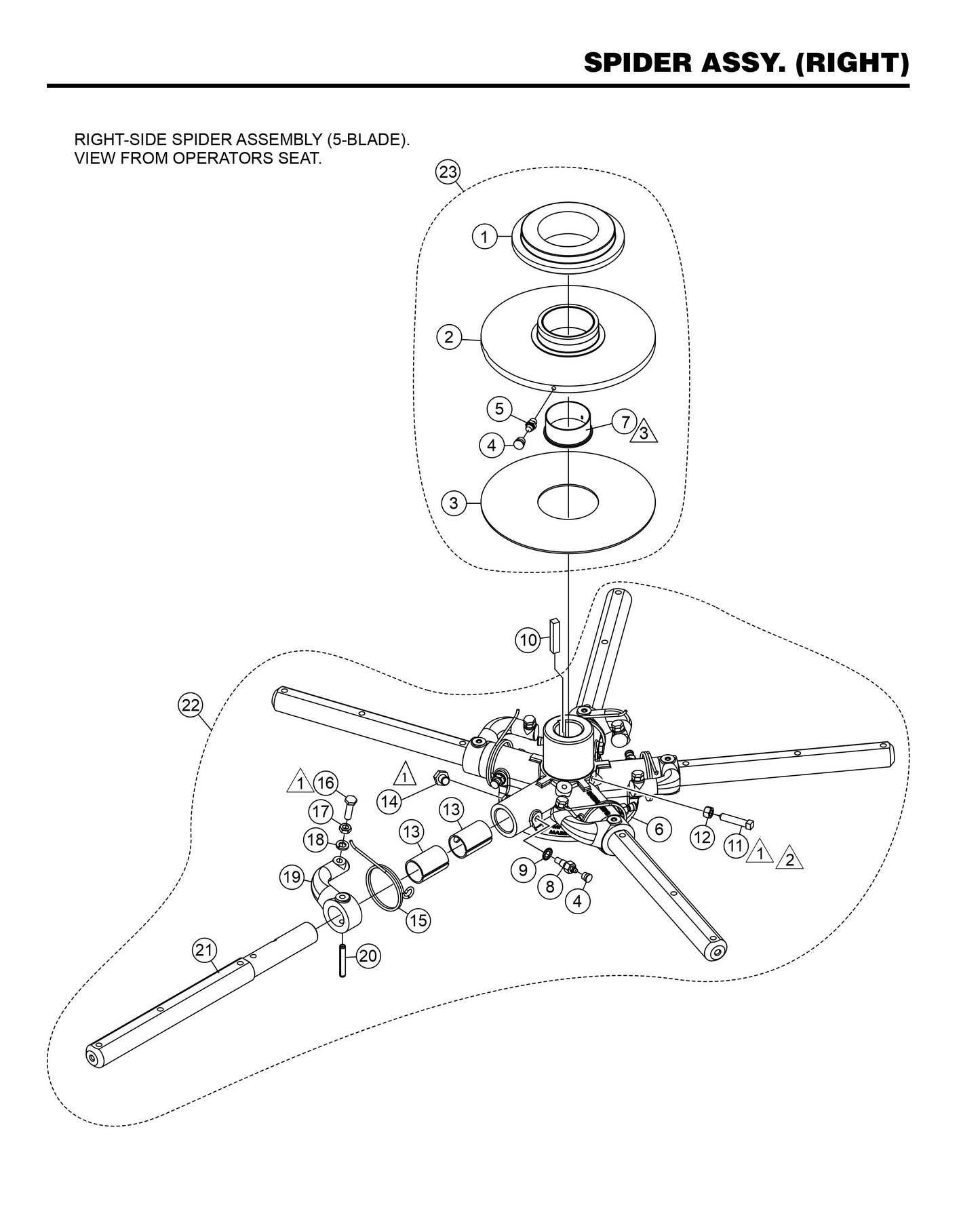

HHXG5 Spider Assembly (Right)

HHXG5 Spider Assembly (Right)

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
3#
11419 Plate, Wear for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$17.02
4@#
1162 A Cap, Grease Zerk #2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
5#
2621 Fitting, Grease for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
7#
12316 Bushing, Thrust Collar for HTX6H Walk Behind Trowels by Multiquip Whiteman
$37.68
9@
1875 Int. Shkp. Washer 3/8” for J Series Walk Behind Trowels by Multiquip Whiteman
$16.27
10
12687 Key, 3/8 Sq X 2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$1.23
11@
12097 Screw, Sqhs 3/8"-16 X 1-3/4" Cone Grd 8 Pt'd for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$2.15
12@
1456 Hex Finish Nut 3/8-16 for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
18@
0166 A Lock Washer 3/8 Med for J36S60 Walk Behind Trowels by Multiquip Whiteman
$2.19
19@
11904-1 Lever, Trowel Arm, Right for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$44.59
20@
9006 Pin, Roll 5/16 X 2 for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
21@
2829-1 Arm, Trowel Hd Extended for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$109.87
22
12933 Spider Assy. 5 Bld R.S. 1-1/2" for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$939.34
23
20938 Thrust Collar Assy for HHN34TVD Mechanical ride on power trowels by Multiquip Whiteman
$510.66
1#
12779 Bearing, Thrust 6017-24S W/Flng for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$349.18
2#
11431 Thrust Collar W/Bushing for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$168.06
6@
12931-1 Spider Plate, 5Bld L.S.1-1/2" for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
Call for Price call for price call for price
8@
1322 Screw, Arm Retaining for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$9.99
13@
11039 Bushing, Trowel Large Arm for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$25.00
14
11602 Screw, Hhs 3/8-16 X 1/4 for HHN34TVD Mechanical ride on power trowels by Multiquip Whiteman
$4.39
15@
2143 Spring, Rs H Arm Return Std Boss for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$3.32
16@
0164 B Screw, Hhc Rounded 3/8-16 Spcl for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
17@
1876 Nut, Hex Jam 3/8-16 Class 2B for HHXD5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
