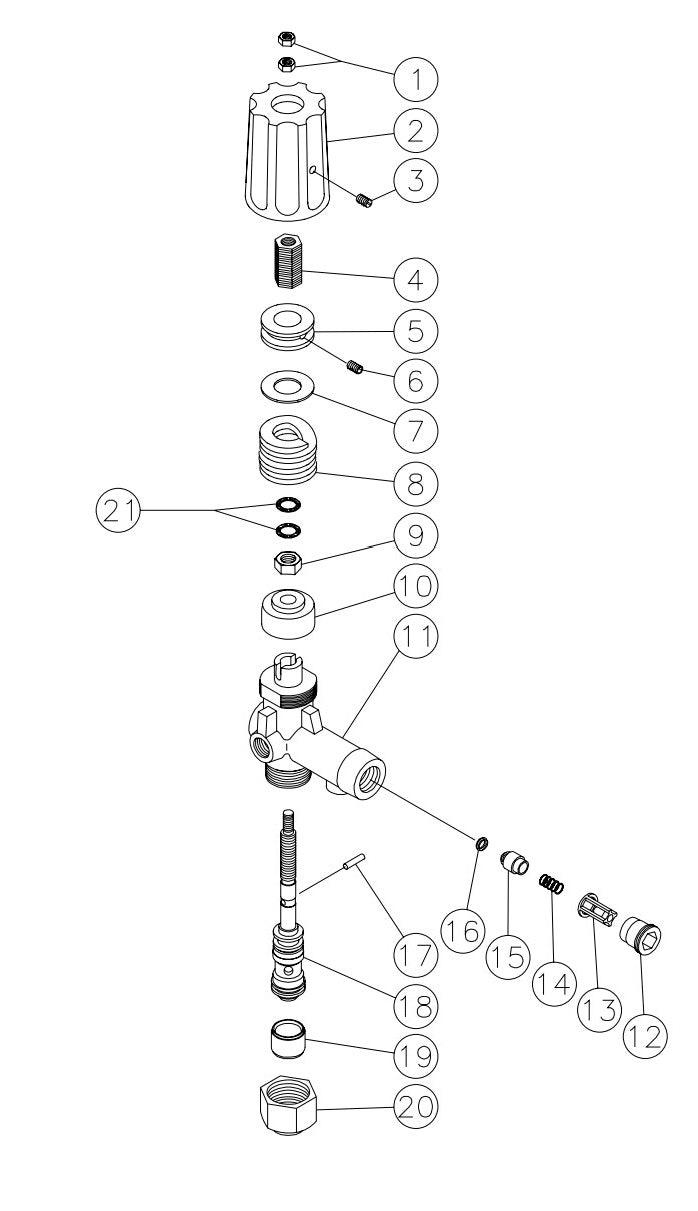

HLP-0703-0M10, HLP-1502-0M10, DH-2504, DH-3004, DH-3504 (sn:0-22664), (sn:22665-14999999) Unloader Assembly Parts by Mi-T-M

HLP-0703-0M10, HLP-1502-0M10, DH-2504, DH-3004, DH-3504 (sn:0-22664), (sn:22665-14999999) Unloader Assembly Parts by Mi-T-M

  • HLP-0703-0M10, HLP-1502-0M10, DH-2504, DH-3004, DH-3504 (sn:0-22664), (sn:22665-14999999) Unloader Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
7-0098 Cover BY MITM
$10.53
3
27-4280 Set Screw BY MITM
$0.68
4
8-0363 Adjusting Insert- Brass BY MITM
$15.74
18
70-0243 Piston Repair Kit BY MITM
$77.30
21
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
-
70-0244 CHECK VALVE REPAIR KIT (INCLUDES 13-16) BY MITM
$8.85
1
8-0362 Hex Nut for AC1-HE02-05M by Mi-T-M 80362
$1.99
5
8-0364 Adjusting Screw for AC1-HE02-05M by Mi-T-M 80364
$25.87
6
8-0365 Set Screw for AC1-HE02-05M by Mi-T-M 80365
$2.85
7
8-0366 Glide Ring for AC1-HE02-05M by Mi-T-M 80366
$7.58
8
49-0104 Spring for AC1-HE02-05M by Mi-T-M 490104
$21.97
9
8-0367 Hex Nut for AC1-HE02-05M by Mi-T-M 80367
$2.85
10
8-0368 Bushing Plastic for AC1-HE02-05M by Mi-T-M 80368
$4.85
11
8-0369 Unloader Body Brass for AC1-HE02-05M by Mi-T-M 80369
$117.51
12
8-0269 Safety Nut for AC1-HE02-05M by Mi-T-M 80269
$17.34
13
8-0104 Valve Housing for AC1-HE02-05M by Mi-T-M 80104
$2.85
14
49-0023 Spring 9 X 14Lg .015 Stl for AC1-HE02-05M by Mi-T-M 490023
$4.85
15
8-0105 Valve Part for AC1-HE02-05M by Mi-T-M 80105
$12.20
16
25-0036 O-Ring 3/16 X 3/8 for AC1-HE02-05M by Mi-T-M 250036
$5.99
17
8-0372 Cylinder Pin for AC1-HE02-05M by Mi-T-M 80372
$5.99
19
8-0371 Coupling Brass for AC1-HE02-05M by Mi-T-M 80371
$9.54
20
Call for Price call for price call for price
View full details
