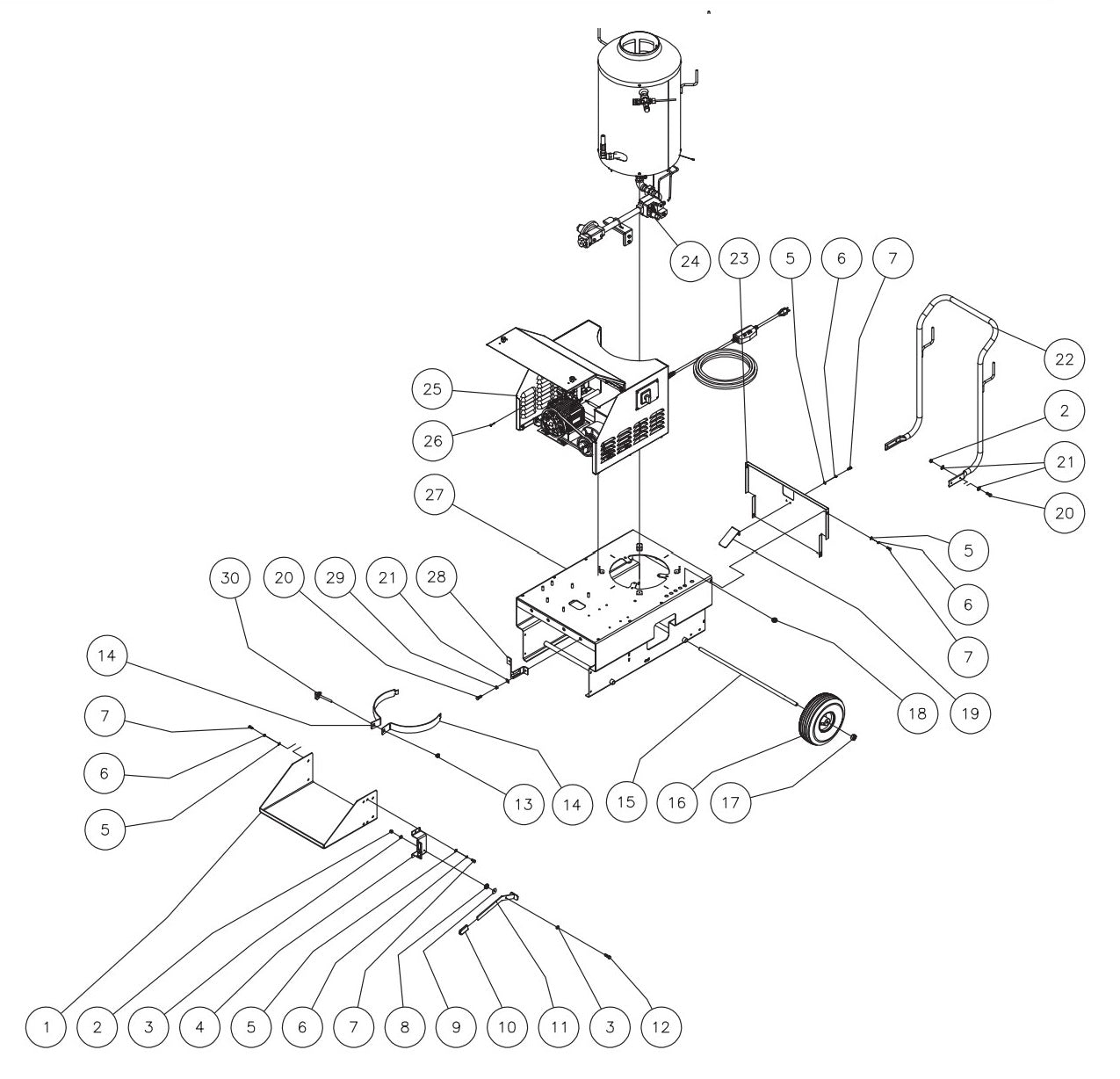

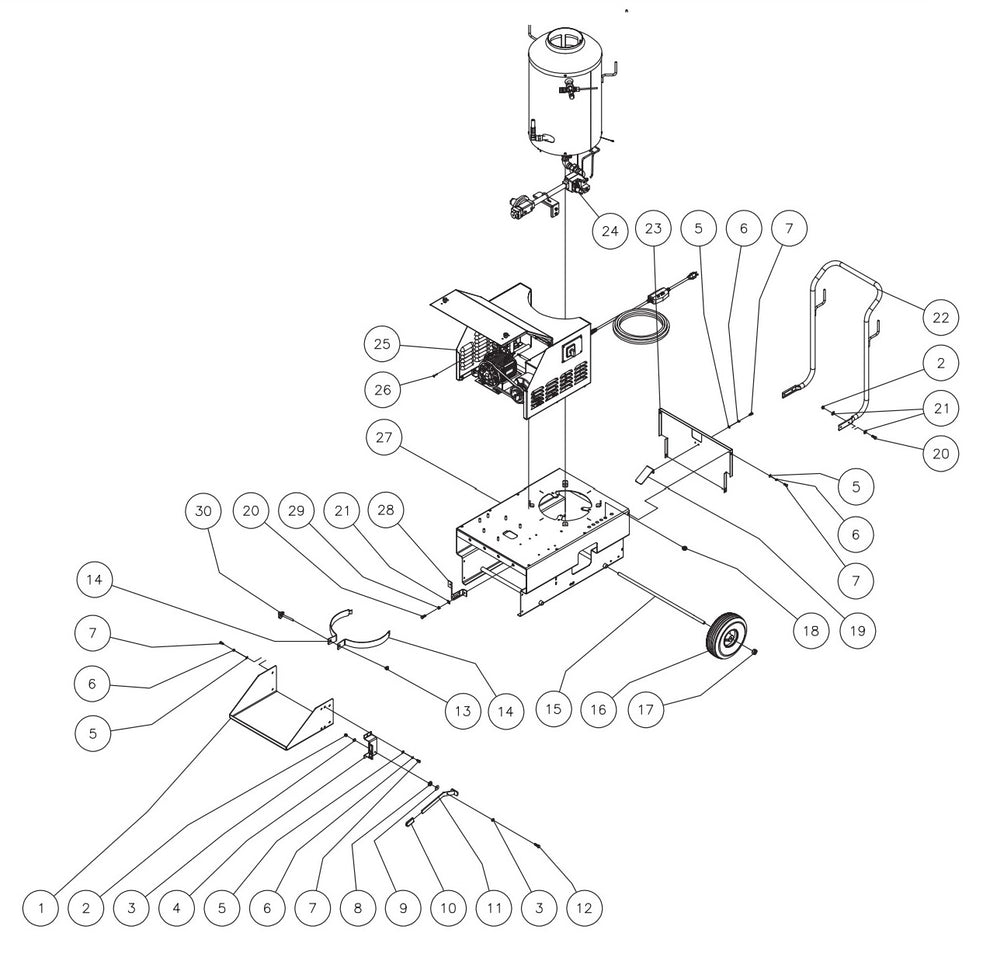

HLP-0703-0M10, HLP-1502-0M10, HLP-0703-2M10 (sn:15011885-15014383), HLP-1502-2M10 (sn:0-15023361) Frame Assembly Parts by Mi-T-M

HLP-0703-0M10, HLP-1502-0M10, HLP-0703-2M10 (sn:15011885-15014383), HLP-1502-2M10 (sn:0-15023361) Frame Assembly Parts by Mi-T-M

  • HLP-0703-0M10, HLP-1502-0M10, HLP-0703-2M10 (sn:15011885-15014383), HLP-1502-2M10 (sn:0-15023361) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
20-0715A18 CYLINDER PLATE BY MITM
$89.10
2
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
3
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
4
20-0546A18 Brake BY MITM
$13.10
5
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
6
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
9
28-0057 WASHER BY MITM
$0.68
10
7-0170 Handle Grip BY MITM
$0.68
11
20-0552A18 Handle Brake BY MITM
$10.74
12
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
13
30-6025 Clip Nut for MiTM Pressure Washers 306025
$21.38
14
20-0722A18 CYLINDER STRAP BY MITM
$12.83
15
20-0779 AXLE BY MITM
$16.41
16
14-0017 Isolator 2" Od X 1.84 for AM2-PR09-30M Air Compressor by Mi-T-M 140017
$11.64
21
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
22
7-0180A18 HANDLE ASSEMBLY BY MITM
$85.94
23
20-0713A18 REAR DOOR ACCESS BY MITM
Call for Price call for price call for price
26
27-3065 SCREW BY MITM
$0.68
27
5-0195A18 FRAME ASSEMBLY BY MITM
$507.74
28
20-0714A18 CYLINDER BRACKET BY MITM
$12.83
30
7-0181 KNOB BY MITM
$10.34
7
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
8
33-0366 Grommet 5/161D X 3/4Gd-1/8Gw for AC1-HE02-05M1 Air Compressor by Mi-T-M 330366
$1.99
17
33-0351 Lock Collar/Shaft 5/8 Id Steel for AC1-HE02-05M by Mi-T-M 330351
$6.48
18
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
20
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
29
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
