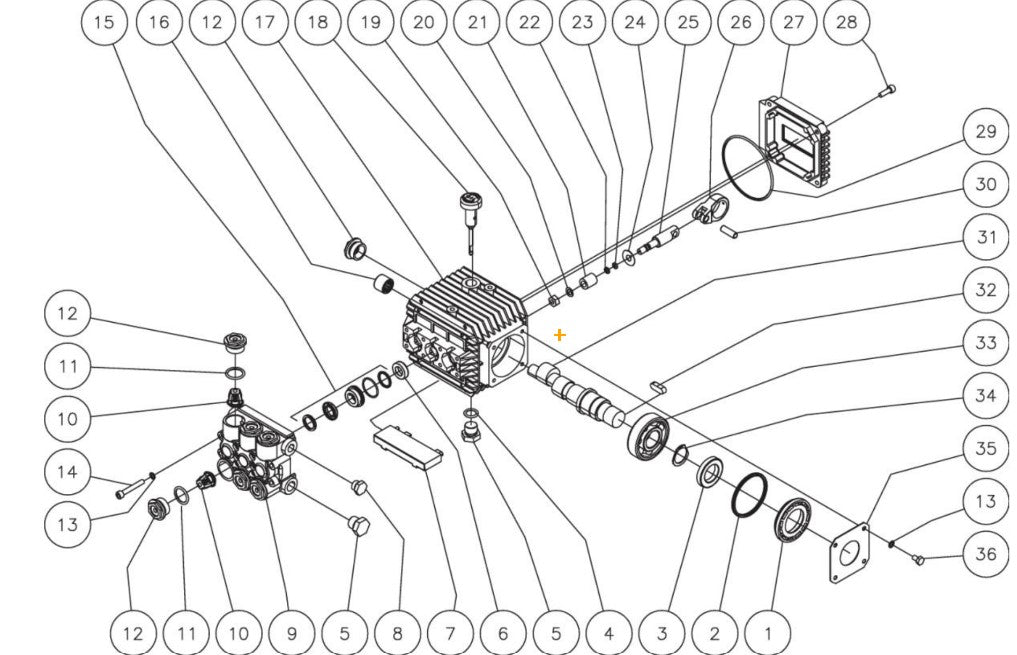

HLP-0703-0M10, HLP-1502-0M10 Pump Assembly Parts by Mi-T-M

HLP-0703-0M10, HLP-1502-0M10 Pump Assembly Parts by Mi-T-M

  • HLP-0703-0M10, HLP-1502-0M10 Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
7
46-0229 Drip Pan for MiTM Pressure Washers 460229
$87.78
10
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
13
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
14
27-8406 Bolt for MiTM Pressure Washers 278406
$18.42
17
46-0221 Crankcase for MiTM Pressure Washers 460221
$757.83
27
46-0151 Crankcase Cover for MiTM Pressure Washers 460151
Call for Price call for price call for price
28
27-8409 Bolt for MiTM Pressure Washers 278409
$5.93
31
46-0220 CRANKCASE BY MITM
$174.83
34
46-0104 Circlip for MiTM Pressure Washers by MiTM 460104
$4.49
36
27-8000 Bolt for MiTM Pressure Washers 278000
$5.93
1
46-0087 Spacer Bearing for AC1-HE02-05M1 Air Compressor by Mi-T-M 460087
$27.06
2
25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250060
$8.44
3
26-0048 Seal Oil for AC1-HE02-05M1 Air Compressor by Mi-T-M 260048
$27.85
4
25-0052 O-Ring 9/16 X 3/4 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250052
$5.99
5
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
6
26-0111 Oil Seal for AC1-HE02-05M1 Air Compressor by Mi-T-M 260111
$24.10
8
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
9
46-1113 Manifold-Brass (Tt9111) for AC1-HE02-05M1 Air Compressor by Mi-T-M 461113
$666.86
11
*25-0012 O-Ring 20.69 X 2.62Mm for MI-T-M 3004-0ME1 CW Series by MiTM 250012
$1.99
12
39-0035 Valve Plug for AC1-HE02-05M1 Air Compressor by Mi-T-M 390035
$34.46
15
70-0376 Kit-Packing for AC1-HE02-05M1 Air Compressor by Mi-T-M 700376
$66.93
16
48-0019 Bearing Needle for AC1-HE02-05M1 Air Compressor by Mi-T-M 480019
$76.05
18
46-0143 Dipstick for AC1-HE02-05M1 Air Compressor by Mi-T-M 460143
Call for Price call for price call for price
19
46-0168 Nut for AC1-HE02-05M1 Air Compressor by Mi-T-M 460168
$13.97
20
46-0166 Washer Copper Gasket for AC1-HE02-05M1 Air Compressor by Mi-T-M 460166
$5.99
21
46-1114 Plunger-18Mm (Tt9111) for AC1-HE02-05M1 Air Compressor by Mi-T-M 461114
$124.27
22
25-0143 Ring Anti-Extrusion for AC1-HE02-05M1 Air Compressor by Mi-T-M 250143
$5.99
23
25-0045 O-Ring 7/32 X 11/32 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250045
$1.99
24
46-0167 Washer Slinger Copper for AC1-HE02-05M1 Air Compressor by Mi-T-M 460167
$7.02
25
46-0149 Piston Guide for AC1-HE02-05M1 Air Compressor by Mi-T-M 460149
$101.28
26
46-0152 Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 460152
$63.60
29
25-0332 O-Ring 88.57 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250332
$12.31
30
43-0044 Pin Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 430044
$19.13
32
43-0028 Key 25 X 8 X 7 for AC1-HE02-05M1 Air Compressor by Mi-T-M 430028
$12.31
33
48-0011 Bear Ball .6305 25 X 62 X 17 for AC1-HE02-05M1 Air Compressor by Mi-T-M 480011
Call for Price call for price call for price
35
46-0084 Retainer/Oil Level/Spacer for AC1-HE02-05M1 Air Compressor by Mi-T-M 460084
$21.98
