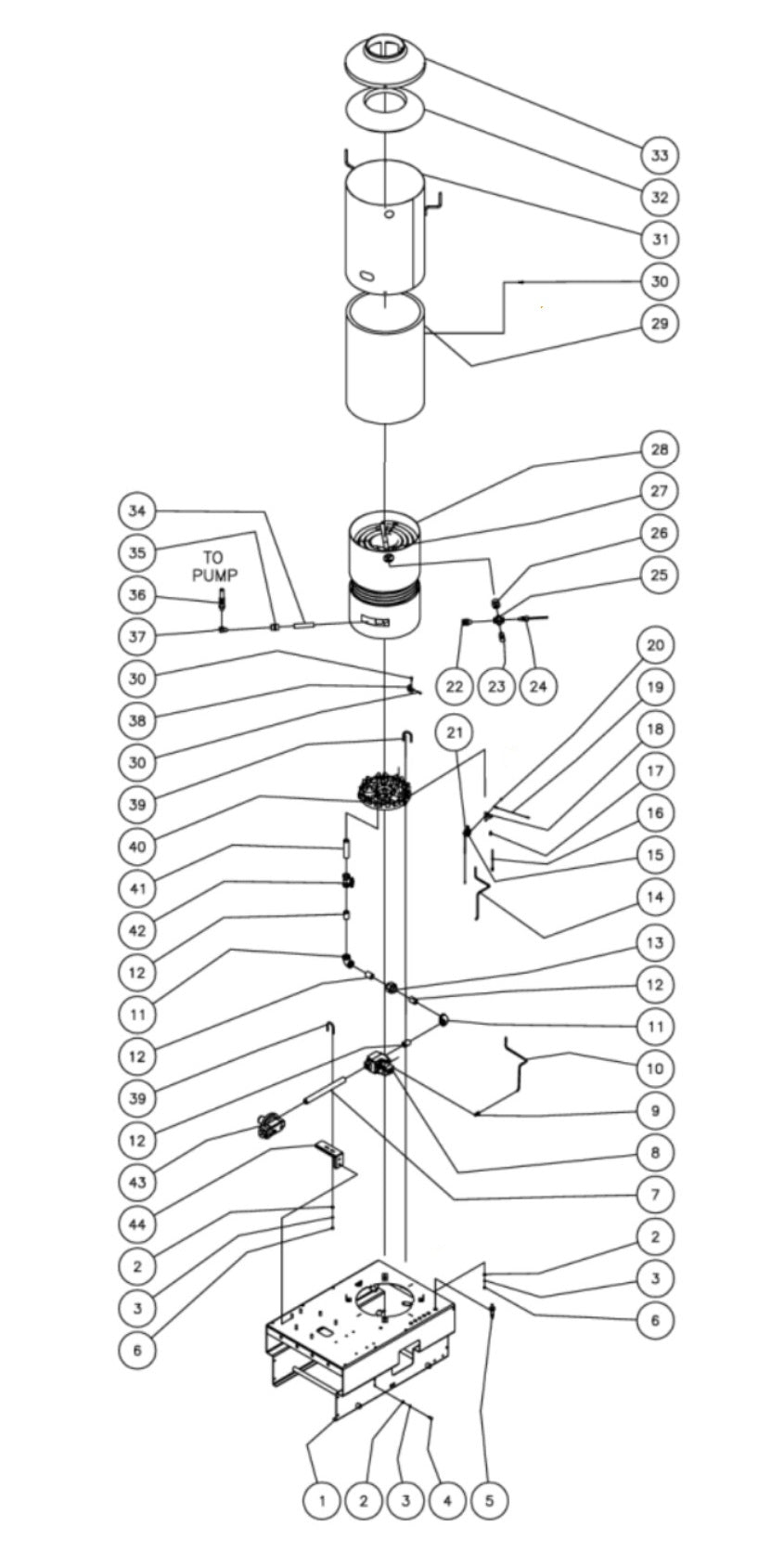

HLP-0703-0M10/HLP-1502-0M10 (sn:15023362-99999999), HLP-0703-2M10/HLP-1502-2M10 (sn:0-15023361) Gas Pipe//Heat Exchanger Assembly Parts by Mi-T-M

HLP-0703-0M10/HLP-1502-0M10 (sn:15023362-99999999), HLP-0703-2M10/HLP-1502-2M10 (sn:0-15023361) Gas Pipe//Heat Exchanger Assembly Parts by Mi-T-M

  • HLP-0703-0M10/HLP-1502-0M10 (sn:15023362-99999999), HLP-0703-2M10/HLP-1502-2M10 (sn:0-15023361) Gas Pipe//Heat Exchanger Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
5-0195A18 FRAME ASSEMBLY BY MITM
$507.74
2
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
3
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
6
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
10
54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM
$3.05
14
54-0027 TUBING *(FOUR FEET REQUIRED) BY MITM
$3.05
17
27-0014 BOLT BY MITM
$0.68
18
20-0719A18 IGNITER BRACKET BY MITM
$11.48
19
850-0346 RING TERMINAL BY MITM
$16.61
20
27-2096 SCREW BY MITM
$0.68
29
850-0343 INSULATION BLANKET BY MITM
$69.80
30
27-3064 Screw BY MITM
$0.68
31
20-0721A18 OUTER WRAP ASSEMBLY BY MITM
$140.94
33
20-0707 DOME ASSEMBLY BY MITM
Call for Price call for price call for price
38
5-017405 RETAINING CLIP BY MITM
Call for Price call for price call for price
39
31-2008 Bolt BY MITM
$2.03
44
20-0717A18 SUPPORT BRACKET BY MITM
$17.55
4
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
5
44-0128 Ignitor/Peizo for AC1-HE02-05M1 Air Compressor by Mi-T-M 440128
$5.99
7
24-0258 Pipe Nipple 3/4"X11" Blk Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240258
$21.93
8
22-0368 Valve-Lp Regulating 3/4" for AC1-HE02-05M1 Air Compressor by Mi-T-M 220368
$407.66
9
23-0328 Adapter for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 230328
$14.91
11
24-0102 Elbow-3/4"Fnpt Black Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240102
$11.09
12
24-0095 Nipple for ABS Air Compressor by Mi-T-M 240095
$6.77
13
24-0101 Union-3/4"Fnpt Black Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240101
$27.49
15
44-0076 Orifice-Lp Burner Pilot (.11) for AC1-HE02-05M1 Air Compressor by Mi-T-M 440076
$25.85
16
44-0130 Thermocouple 24" for AC1-HE02-05M1 Air Compressor by Mi-T-M 440130
$25.50
21
850-0347 Pilot Assy With 20Ga Wire for AC1-HE02-05M1 Air Compressor by Mi-T-M 8500347
$117.61
22
17-0007 Qc 3/8M X 3/8 Socket Brass for AC1-HE02-05M by Mi-T-M 170007
$17.83
23
22-0272 Safety Relief 3/8" 3500 Psi for AC1-HE02-05M1 Air Compressor by Mi-T-M 220272
$82.46
24
32-0798 Switch/Hi Limit 3/8Npt for AC1-HE02-05M1 Air Compressor by Mi-T-M 320798
$64.66
25
24-0001 Cross 3/8" All Female Steel for AC1-HE02-05M1 Air Compressor by Mi-T-M 240001
$43.35
26
24-0048 Reducer 1/2F X 3/8M Hex-Steel for AC1-HE02-05M1 Air Compressor by Mi-T-M 240048
$13.29
27
24-0277 Nipple-1/2X3.00 Sch 80 Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240277
$18.31
28
66-0018 Heat Exchanger Assy for AC1-HE02-05M1 Air Compressor by Mi-T-M 660018
$646.12
32
850-0344 Insulation Donut 16" Dia for AC1-HE02-05M1 Air Compressor by Mi-T-M 8500344
$54.55
34
24-0244 Pipe Nipple-1/2Npt X 4"Long for AC1-HE02-05M1 Air Compressor by Mi-T-M 240244
$17.50
35
24-0243 Adapter-1/2Fnptx 3/8Fnpt Steel for AC1-HE02-05M by Mi-T-M 240243
$19.94
36
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
37
23-0034 Elbow 3/8M X 3/8F 90 Str Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230034
$19.33
40
4-0022 Burner Lp Asperating Ring for AC1-HE02-05M1 Air Compressor by Mi-T-M 40022
$368.35
41
24-0276 Nipple-3/4X4.00 Blk Pipe for AC1-HE02-05M1 Air Compressor by Mi-T-M 240276
$9.43
42
22-0336 Ball Valve for AC1-HE02-05M1 Air Compressor by Mi-T-M 220336
$32.40
43
22-0369 Regulator-Lp 1/4"F X 3/4" F for AC1-HE02-05M1 Air Compressor by Mi-T-M 220369
$189.03
